Our Available Toshiba e-Studio Multifunction Color Printer
- e-Studio 400AC
- e-Studio 2010AC
- e-Studio 2020AC

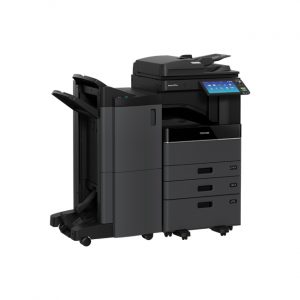

- e-Studio 2510AC

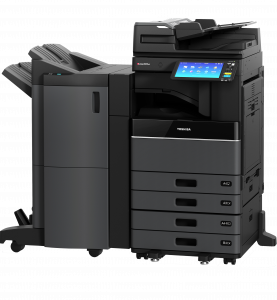

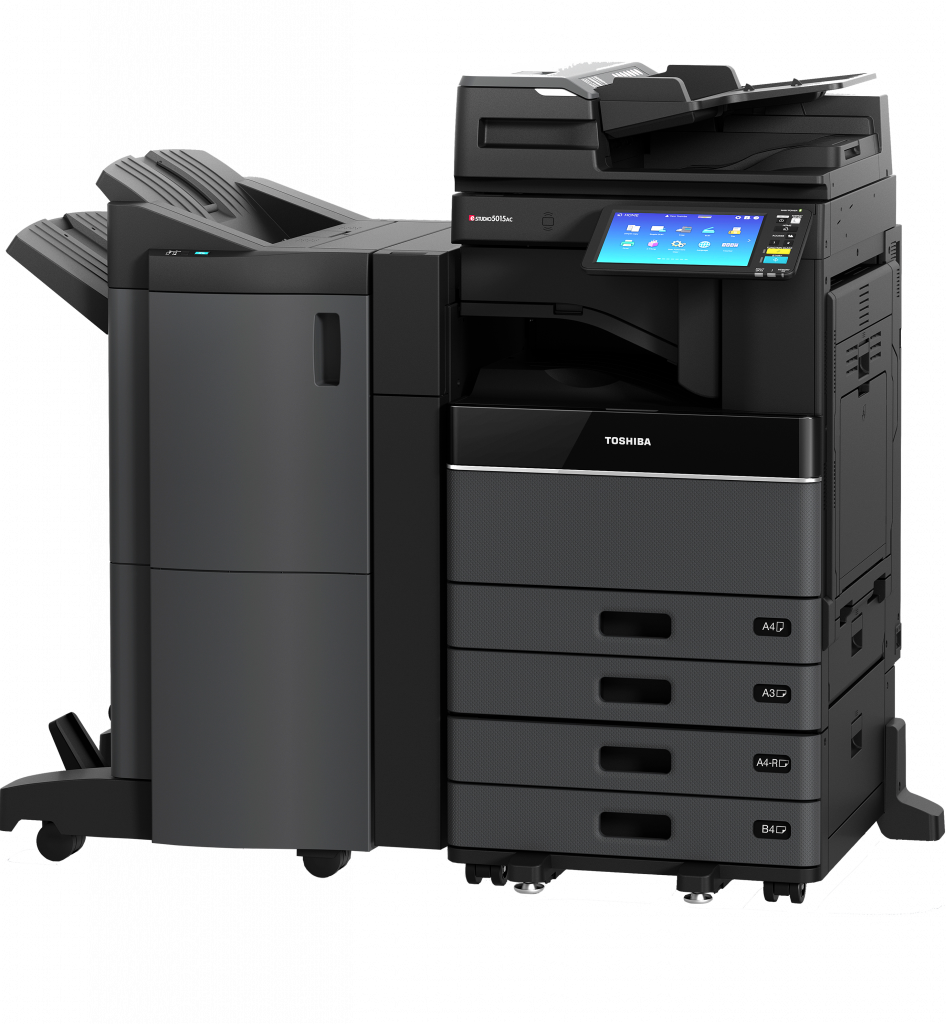

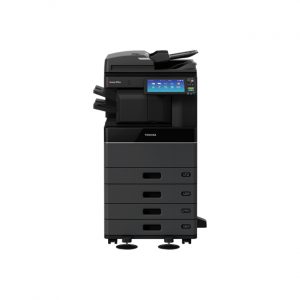

- e-Studio 3015AC

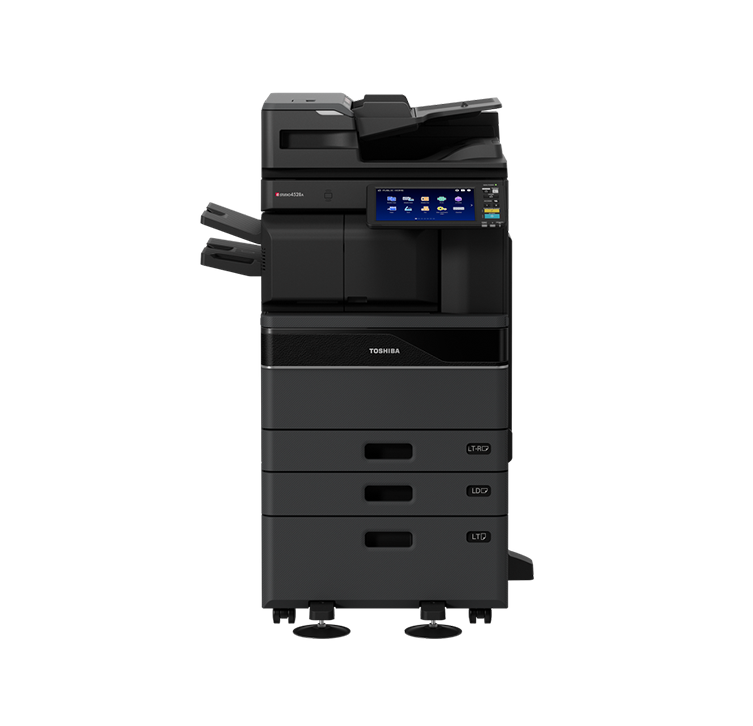

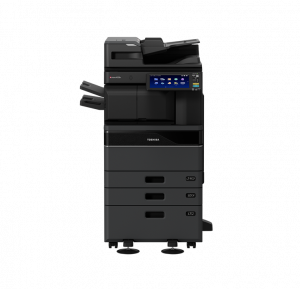

- e-Studio 3025AC

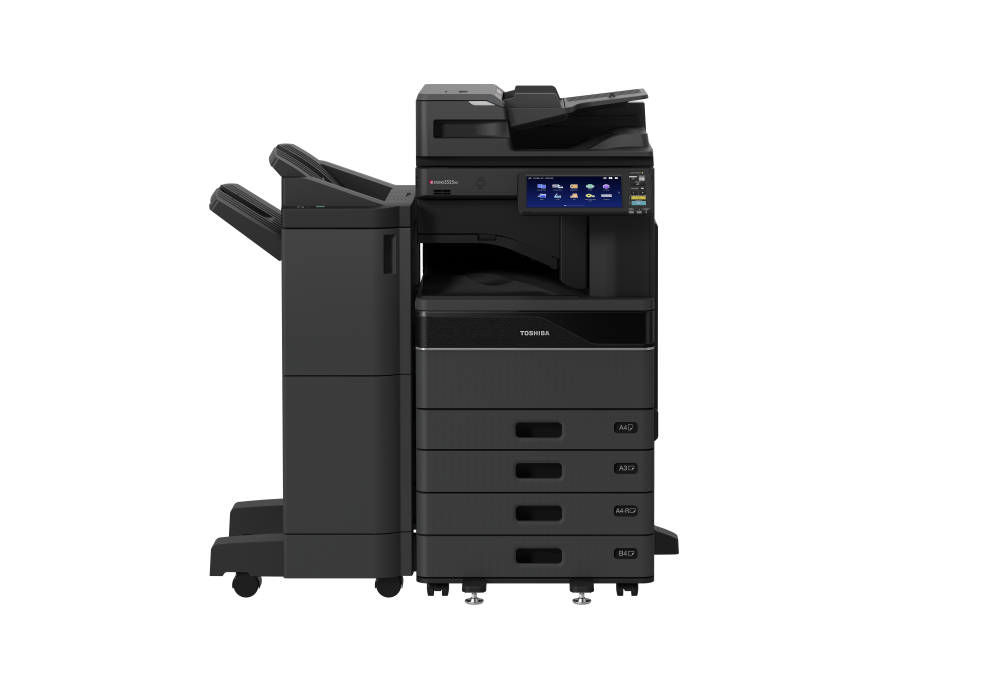

- e-Studio 4515AC
- e-Studio 5015AC
- e-Studio 5516AC

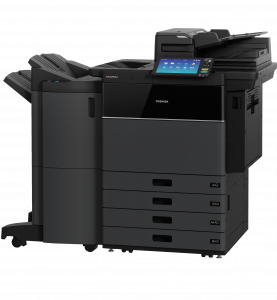

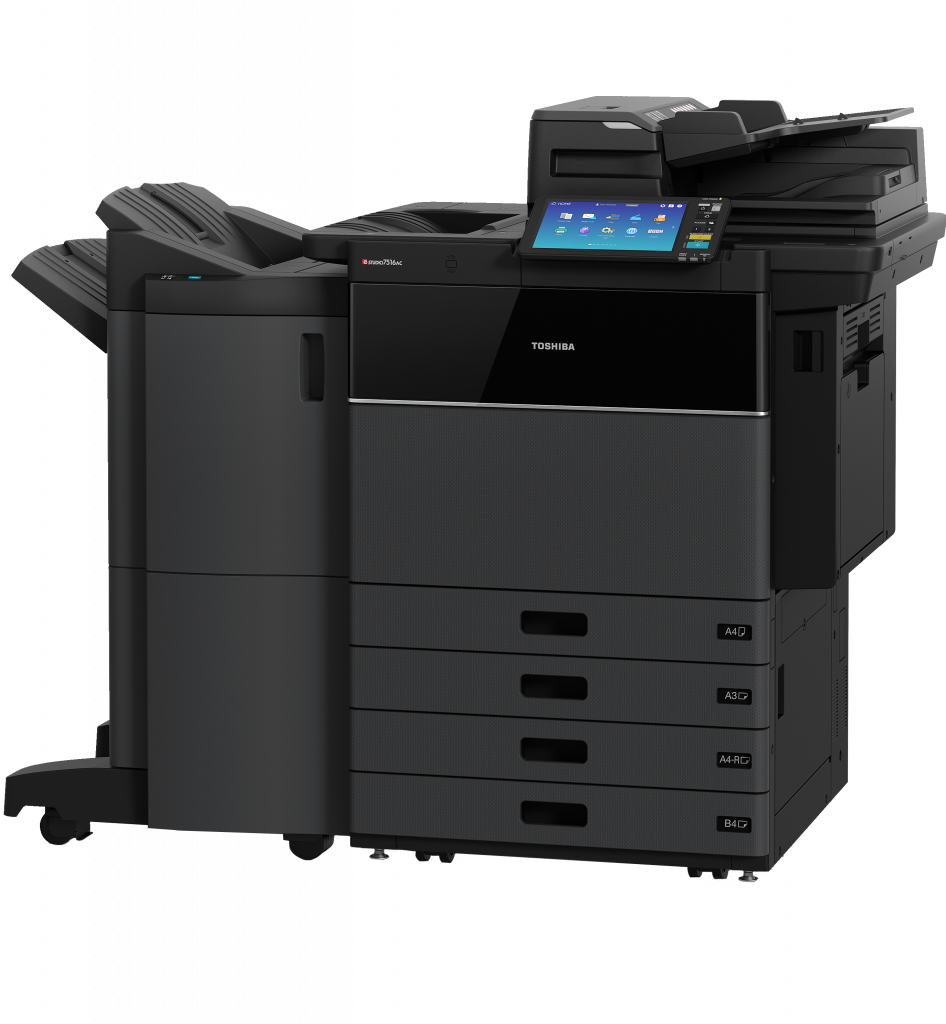

- e-Studio 7516AC

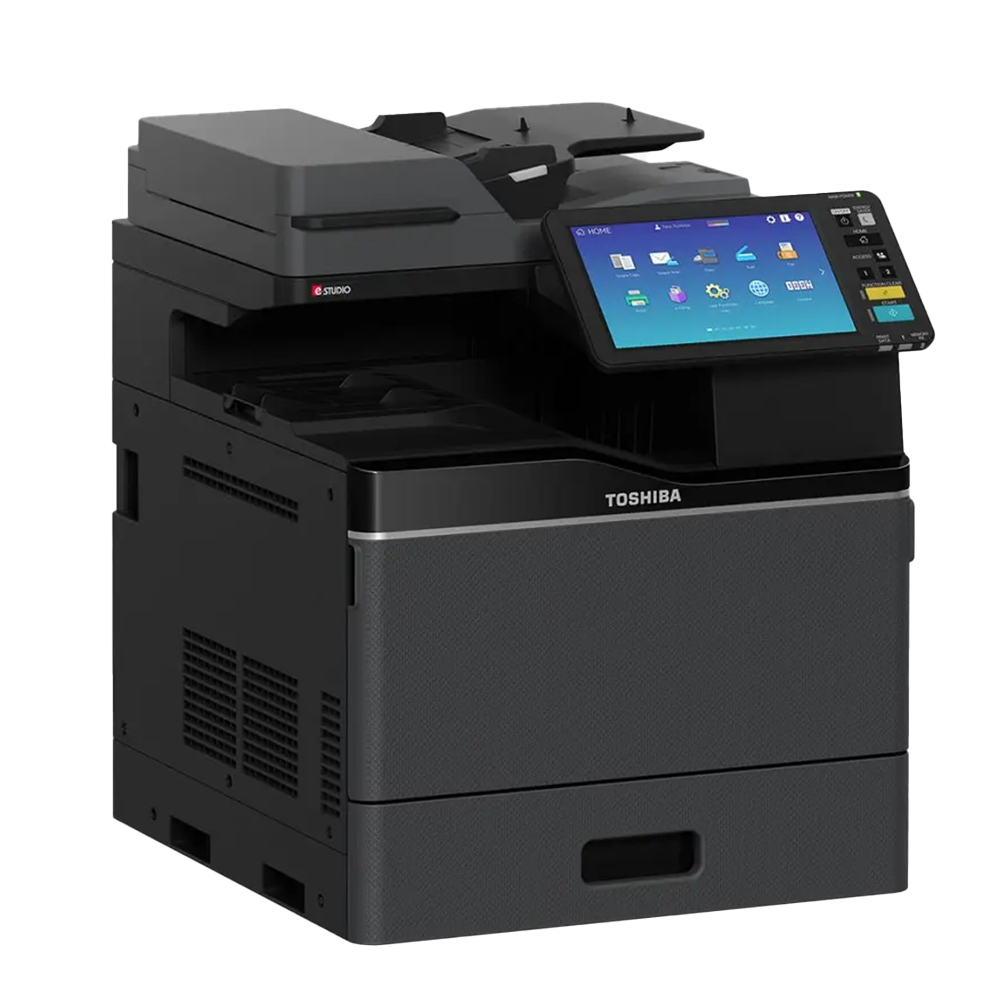

e-STUDIO400AC
-
- 42 PPM, Color/Mono
- 650/3,200 Paper Capacity (Std./Max)
- 320 GB Self-encrypting HDD
- Large 10.1″ Tablet-style UI
- Up to 120 IPM Duplex DSDF
Features and Specifications
e-STUDIO400AC FEATURES
| PRODUCTIVITY | |
| Color print speeds of up to 42 PPM | |
| Scan speeds of up to 120 IPM Duplex | |
| e-BRIDGE Next Open Platform support | |
| Low energy fuser system | |
| 8.5” x 14” 140 lb index automatic duplexing from the drawers | |
| 110 lb Index support through the bypass | |
| Blank page omission for copying and printing | |
| Outside Erase for copying books and 3D objects | |
| High compression PDF scanning (Slim PDF) | |
| Convenience Stapler Option | |
| Universal Print Driver | |
| 320GB Self-Encrypting Drive | |
| Job Skip | |
| IMAGE QUALITY | |
| Patented ASICs provide superb clarity and rich text renditions in all scanning, printing and copying jobs | |
| Up to 1200 x 1200 dpi print resolution | |
| Automatic Image quality control function | |
| OPERABILITY | |
| Toshiba developed 10.1-inch tablet-style touch color control panel for easier operation | |
| Quick Copy & Scan Buttons | |
| Scan Preview | |
| Fax Option | |
| One Touch Templates | |
| Private Printing Feature | |
e-STUDIO400AC SPECIFICATIONS
| MAIN SPECIFICATIONS | |
| Copy Process | Indirect Electrostatic Photographic Method/OPC/LED Printing/Heat Roller Fusing |
| Display | 10.1” Color WVGA Touch Screen Tilting Display |
| Copy Speed | 42 PPM (LT) |
| First Copy Out | 6.3 Seconds Color/5.1 Seconds B&W |
| Warm-Up Time | Approx. 20 Seconds |
| Copy Resolution | 600 x 600 dpi |
| Stack Feed Bypass | 3.9” x 5.8” to 8.5” x 14” (LG), Envelope |
| Multiple Copying | Up to 999 Copies |
| Paper Capacity | Standard 650 Sheets/Max. 3,200 Sheets |
| Original Feed | 100-Sheet DSDF |
| Scan Speed & Weights | DSDF Scan: Up to 120 IPM Duplex, 60 IPM Simplex (Monochrome) Up to 82 IPM Duplex, 41 IPM Simplex (Color) 9.3-28lb Bond |
| Max. Original Size | LG |
| Paper Feed Sizes | Drawer 1: 550 Sheets-ST-R to LG Stack Feed Bypass: 100 Sheets-3.9” x 5.8” to 8.5” x 14” (LG) Opt. 550-Sheet Paper Feed Unit (up to 3)-ST-R to 8.5” x 14” (LG) Opt. 2,000-Sheet LCF (Pedestal Type)-LT Only |
| Paper Weights | Standard: 550 Sheets x 1-16 lb Bond-140 lb Index Stack Feed Bypass: 100 Sheets-14 lb Bond-100 lb Index Opt. 550-Sheet Paper Feed Unit-16 lb Bond-140 lb Index Opt. 2,000-Sheet LCF (Pedestal Type)-16 lb Bond-140 lb Index |
| Duplex | Standard Automatic Duplex Unit (16 lb Bond-140 lb Index) |
| Reproduction Ratio | 25% to 400% |
| Max Duty Cycle | Max. 150K Month |
| Weight | Approx. 117 lb |
| Approx. Dimensions | 20.5” (W) x 21.3” (D) x 25” (H) |
| Toner Yield | CMY: 17.4K, BK: 18.4K @ 5% |
| Power Source | 120 Volts, 50/60 Hz, 12 Amps |
| Power Consumption | Maximum 1.5kW (120V) |
| CPU | Intel ApolloLake™ E3930 (Dual-Core) |
| Memory | 4GB |
| Hard Disk Drive | 320GB Self-Encrypting Drive |
| E-BRIDGE NEXT PRINT SPECIFICATIONS | |
| PDL | PCL5e, PCL5c, PCL6 (PCL XL), PS3, PDF, XPS, JPEG |
| Print Speed | 35 Pages Per Minute (LT) |
| Print Resolution | 600 x 600 dpi (5bit), 1,200 x 1,200 dpi (Color/2bit) or 3,600 (Equivalence) x 1,200 dpi (BW/with Smoothing) (PS3Only) |
| Operating Systems | Windows Server® 2008 R2, R2 SP1, 2008/SP2, Windows® 7, 8.1, 10, Windows Server® 2012/R2, Windows Server® 2016, Macintosh® (macOS X 10.7.4, 10.8, 10.9, 10.10, 10.11, 10.12, 10.13), Unix®, Linux® |
| Network Protocols | TCP/IP (IPv4, IPv6), NetBIOS over TCP/IP, IPX/SPX® for Novell® Environments, EtherTalk for Macintosh Environments |
| Printing Protocols | SMB, LPR/LPD, IPP (Ver. 2.0) w/ Authentication, AppleTalk® PAP or EtherTalk, Port 9100 (Bi-Directional), NetWare P-SERVER LPD w/ iPrint, WS Print, FTP |
| Print Drivers | Windows Server® 2008 SP2 (32-bit, 64-bit) Windows Server® 2008 R2 SP1 (64-bit), Windows® 7 SP1 (32-bit, 64-bit), Windows® 8.1 (32-bit, 64-bit), Windows Server® 2012/R2 (64-bit), Windows Server® 2016, Windows® 10 (32-bit, 64-bit), macOS X 10.7.4, 10.8, 10.9, 10.10, 10.11, 10.12, 10.13 |
| Interface | RJ-45 Ethernet (10/100/1000 Base-T), USB 2.0 (High-speed), Optional 802.11b/g/n, Wireless LAN, Optional Bluetooth |
| Wireless Device | AirPrint®, Mopria®, e-BRIDGE Print & Capture Application on iOS and Android (Available via Apple® App Store or Google Play) |
| Account Control | Up to 10,000 users or 1,000 Departments Supports User Authentication (on Device), Login Name/Password (via Windows domain) or Login Name/Password (via LDAP Server) for Copy, Print, Scan, Fax, List, and User Function |
| Accessibility Features | Tilt Front Panel, Job Programs, Universal Grip for Paper Trays, Disable Screen Timeout and Audible Beep Message Alerts |
| Security Features | User Authentication, SCEP, Disable e-Filing, Disable Copy, Disk Overwrite, IP Address Filtering (10 Sets), MAC Address Filtering (10 Sets), Network Service Control, Network Port Control, SMB Packet Signing, SSL/TLS (HTTP, IPP, LDAP, SMTP, POP, FTP, DPWS, SYSLOG), IPsec (IKEv1, IKEv2), Security Mode Change, CC Certified (ISO/IEC15408)* with HCD-PP v1.0, IEEE802.1X (Wired/Wireless), Digital Signature for Client Utilities, Password Policy, Password Lock, Password Expiration, Self Testing, Job Access Control, Log Access Control for Job Log, Security Stamp, Role Based Access Control, Secure PDF, Digital Signature for Firmware Update, Integrity Check Function, Image Log, Card Authentication, NFC Authentication |
| *Conformance with HCD-PPv1.0 (Requires FIPS HDD) in High Security Mode. | |
| Environmental Stds | ENERGY STAR® (V3.0), EPEAT Gold, Californian Proposition 65 |
| Certification | WHQL (Windows® 8.1, 10, 2008 R2, 2012, 2012 R2), Novell®, Citrix®, SAP, AirPrint® and Mopria® |
| SCAN SPECIFICATIONS | |
| Scan Speed | DSDF Scan: Up to 120 IPM Duplex, 60 IPM Simplex (Monochrome or Color) |
| Scan Modes | Standard: Full Color, Auto Color, Monochrome, Grayscale |
| Scan Resolution | 600 dpi, 400 dpi, 300 dpi, 200 dpi, 150 dpi, 100 dpi |
| File Formats | Monochrome: TIFF-Multi/Single Page, PDF-Multi/Single Page, Searchable PDF (Opt.), XPS-Multi/Single Page, DOCX (Opt.), XLSX (Opt.), PPTX (Opt.) Color/Grayscale: JPEG, TIFF-Multi/Single Page, PDF-Multi/Single Page, Slim PDF |
| Image Compression | Color/Grayscale: JPEG (High, Middle, Low) |
| FAX SPECIFICATIONS | |
| Compatibility | Super G3 |
| Data Compression | MH/MR/MMR/JBIG |
| Transmission Speed | Approx. 3 Seconds Per Page |
| Fax Modem Speed | Up to 33.6 Kbps |
| Memory Transmission | 100 Jobs (with HDD), 2,000 Destinations Max. 400 Destinations /Job |
| Scan Speed | 0.7 Seconds Per Page, Maximum 120 IPM |
| E-FILING SPECIFICATIONS | |
| Operation Method | Color Touch Screen Control Panel or Client PC |
| Number of Boxes | 1 Public Box; 200 Private User Boxes |
| Capacity of Boxes | |

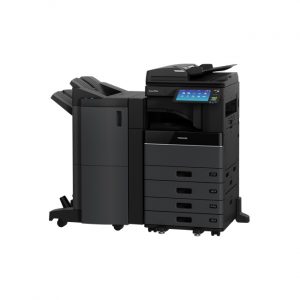

e-STUDIO2010AC
- 20 PPM, Color/Mono
- 350/2,900 Paper Capacity (Std./Max)
- 320 GB Self-Encrypting HDD
- Large 10.1″ Tablet-Style UI
- Integral Card-Reader Pocket
- Multi-Function Printer
The e-STUDIO2010AC comprises an A3/LD-size color MFP series that offers print speeds of 20 ppm. For group projects, for business and for those who need color print function, we are here to assist you. The series incorporates with industry-leading technology and innovations that are designed to help small groups of people stay connect and simple.
Features and Specifications
FEATURES
| PRODUCTIVITY | |
| Color print speeds of up to 20 PPM B&W- up to 20 PPM | |
| Color scan speeds of up to 73 IPM at 300 x 300 dpi resolution | |
| e-BRIDGE Next Open Platform support | |
| Low energy fuser system | |
| 11″ x 17″ 90 lb index automatic duplexing from the drawers | |
| 110 lb cover support through the bypass | |
| Blank page omission for copying and printing | |
| Outside Erase for copying books and 3D objects | |
| High compression PDF scanning (Slim PDF) | |
| New Toshiba inner finisher and saddle stitch finisher | |
| Universal Print Driver | |
| 320GB Self-Encrypting Drive FIPS 140-2 Validated | |
| Job Skip | |
| IMAGE QUALITY | |
| Patented ASICs provide superb clarity and rich text renditions in all scanning, printing and copying jobs | |
| Up to 600 x 600 dpi print resolution | |
| Automatic Image quality control function | |
| OPERABILITY | |
| New Toshiba developed 9 inch tablet-style touch color control panel for easier operation | |
| Quick Copy & Scan Buttons | |
| Scan Preview | |
| New Control Panel Print Function button | |
| Dual-line Fax Option | |
| One Touch Templates | |
| Private Printing Feature | |
| SERVICEABILITY | |
| Easy Replaceable Unit Design | |
| Long Life consumables and duty cycles | |
SPECIFICATIONS
| MAIN SPECIFICATIONS | |
| Copy Process | Indirect Electrostatic Photographic Method/OPC/Laser Printing/Heat Roller Fusing |
| Display | 10.1” Color WVGA Touch Screen Tilting Display |
| Copy Speed | 20 PPM (LT) |
| First Copy Out | 9.5 Seconds Color/ 7.1 Seconds B&W |
| Warm-Up Time | Approx. 21 Seconds |
| Copy Resolution | 600 x 600 dpi |
| Stack Feed Bypass | ST-R to LD, Envelope |
| Multiple Copying | Up to 999 Copies |
| Paper Capacity | Standard 350 Sheets/Max. 2,900 Sheets |
| Original Feed | Optional 100-Sheet RADF |
| Scan Speed & Weights | RADF Scan: Up to 73 IPM (Monochrome or Color), Simplex: 9.3-41.8 lb Bond, Duplex: 13.3-41.8 lb Bond |
| Max. Original Size | LD |
| Paper Feed Sizes | Drawer 1: 250 Sheets-ST-R to LD, Stack Feed Bypass: 100 Sheets-3.9” x 5.8” to LD, Opt. Paper Feed Unit: 550 Sheets-ST-R to LD, Opt. 550-Sheet Paper Feed Pedestal-ST-R to LD Opt. 550-Sheet Drawer for PFP -ST-R to LD, Opt. Envelope Cassette for PFP-Approx. 60 Envelopes/550 Sheets-ST-R to LG, Opt. 2,000-Sheet Tandem LCF (Pedestal Type)-LT Only |
| Paper Weights | Standard: 250 Sheets-16 lb Bond-90 lb Index, Stack Feed Bypass: 100 Sheets-16 lb Bond-110 lb Index, Opt. Paper Feed Unit: 550 Sheets-16 lb Bond-90 lb Index, Opt. 550-Sheet Paper Feed Pedestal: 16 lb Bond-90 lb Index, Opt. 550-Sheet Drawer for PFP: 16 lb Bond-90 lb Index, Opt. Envelope Cassette for PFP: 16 lb Bond-lb Index, Opt. 2,000-Sheet Tandem LCF (Pedestal Type): 17-28 lb Bond |
| Duplex | Standard Automatic Duplex Unit (16 lb Bond-90 lb Index) |
| Reproduction Ratio | 25% to 400% |
| Max Duty Cycle | Max. 67.2K Month |
| Weight | Approx. 126 lb |
| Approx. Dimensions | 22.6” (W) x 23” (D) x 26.1” (H) |
| Toner Yield | CMY: 33.6K, BK: 38.4K @ 5% |
| Power Source | 120 Volts, 50/60 Hz, 15 Amps |
| Power Consumption | Maximum 1.5kW (120V) |
| CPU | Intel Atom™1.33GHz (Dual-Core) |
| Memory | 4GB |
| Hard Disk Drive | 320GB Self-Encrypting Drive FIPS 140-2 Validated |
| E-BRIDGE NEXT PRINT SPECIFICATIONS | |
| PDL | PCL5e, PCL5c, PCL6 (PCL XL), PS3, PDF, XPS, JPEG |
| Print Speed | 20 Pages Per Minute (LT) |
| Print Resolution | 600 x 600 dpi (5 bit) 600 x 1,200 dpi (1 bit) PS3 Only |
| Operating Systems | Windows® Vista, Windows Server® 2008/R2, Windows® 7, 8, 8.1, 10, Windows Server® 2012/R2, Macintosh® (Mac OS × 10.4, 10.5, 10.6, 10.7, 10.8, 10.9, 10.10, 10,11), Unix®, Linux® |
| Network Protocols | TCP/IP (IPv4, IPv6), NetBIOS over TCP/IP, IPX/SPX® for Novell® Environments, EtherTalk® for Macintosh Environments |
| Printing Protocols | SMB, LPR/LPD, IPP (Ver.1.1) w/Authentication, AppleTalk PAP or EtherTalkTM, Port 9100 (bi-directional), NetWare P-SERVER LPD w/ iPrint, WS Print, FTP |
| Print Drivers | Windows® Vista SP2 (32-bit, 64-bit), Windows Server® 2008 SP2 (32-bit, 64-bit), Windows Server® 2008 R2 SP1 (64-bit), Windows® 7 SP1 (32-bit, 64-bit), Windows® 8/8.1 (32-bit, 64-bit), Windows Server® 2012/R2 (64-bit), Windows® 10 (32-bit, 64-bit), Mac OS® X 10.6.8, 10.7.4, 10.8, 10.9, 10.10 |
| Interface | RJ-45 Ethernet (10/100/1000 Base-T), USB 2.0 (High-speed), Optional 802.11b/g/n, Wireless LAN, Optional Bluetooth |
| Wireless Device | AirPrint®, Mopria®, e-BRIDGE Print & Capture Application on iOS and Android (Available via Apple App Store or Google Play) |
| Device Management | TopAccess, EFMS 6.2 (e-BRIDGE Fleet Management Software) |
| Account Control | Up to 10,000 users or 1,000 Departments Supports User Authentication (on Device), Login Name/Password (via Windows domain) or Login Name/Password (via LDAP Server) for Copy, Print, Scan, Fax, List, and User Function |
| Accessibility Features | Tilt Front Panel, Job Programs, Universal Grip for Paper Trays, Disable Screen Timeout and Audible Beep Message Alerts |
| Security Features | User Authentication, On-Board Data Scramble Function, SCEP, Disable e-Filing, Disable Copy, Disk Overwrite, IP Address Filtering (10 Sets), MAC Address Filtering (10 Sets), Network Service Control, Network Port Control, SMB Packet Signing, SSL (HTTP, IPP, LDAP, SMTP, POP, FTP, DPWS), IPsec (IKEv1, IKEv2), Security Mode Change, CC Certified (ISO/IEC15408)*, HCD-PP, IEEE802.1X, Digital Signature for Client Utilities, Password Policy, Password Lock, Password Expiration, Self Testing, Job Access Control, Log Access Control for Job Log, Security Stamp *Conformance with HCD-PP in High Security Mode |
| Environmental Stds | Energy Star (V2.0), EPEAT Gold, Blue Angel Mark (RAL UZ-171, MFD), Canadian ECP, Californian Proposition 65, Nordic Swan, RoHS |
| Certification | WHQL (Windows 7, 8, 8.1, 10, 2008 R2, 2012, 2012 R2), Novell, Citrix, SAP |
| SCAN SPECIFICATIONS | |
| Scan Speed | RADF Scan: Up to 73 IPM (Monochrome or Color) |
| Scan Modes | Standard: Full Color, Auto Color, Monochrome, Grayscale |
| Scan Resolution | 600 dpi, 400 dpi, 300 dpi, 200 dpi, 150 dpi, 100 dpi |
| File Formats | Monochrome: TIFF-Multi/Single Page, PDF-Multi/Single Page, Searchable PDF (Opt.), XPS-Multi/Single Page, DOCX (Opt.), XLSX (Opt.), PPTX (Opt.) Color/Grayscale: JPEG, TIFF-Multi/Single Page, PDF-Multi/Single Page, Slim PDF, Searchable PDF (Opt.), XPS-Multi/Single Page, DOCX (Opt.), XLSX (Opt.), PPTX (Opt.) |
| Image Compression | Color/Grayscale: JPEG (High, Middle, Low) |
| FAX SPECIFICATIONS | |
| Compatibility | Super G3 |
| Data Compression | MH/MR/MMR/JBIG |
| Transmission Speed | Approx. 3 Seconds Per Page |
| Fax Modem Speed | Up to 33.6 Kbps |
| Memory Transmission | 100 Jobs (with HDD), 2,000 Destinations Max. 400 Destinations /Job |
| Scan Speed | 0.7 Seconds Per Page, Maximum 73 IPM |
| E-FILING SPECIFICATIONS | |
| Operation Method | Color Touch Screen Control Panel or Client PC |
| Number of Boxes | 1 Public Box; 200 Private User Boxes |
| Capacity of Boxes | 100 Folder per Box; 400 Documents per Folder; 200 Pages per Documents |

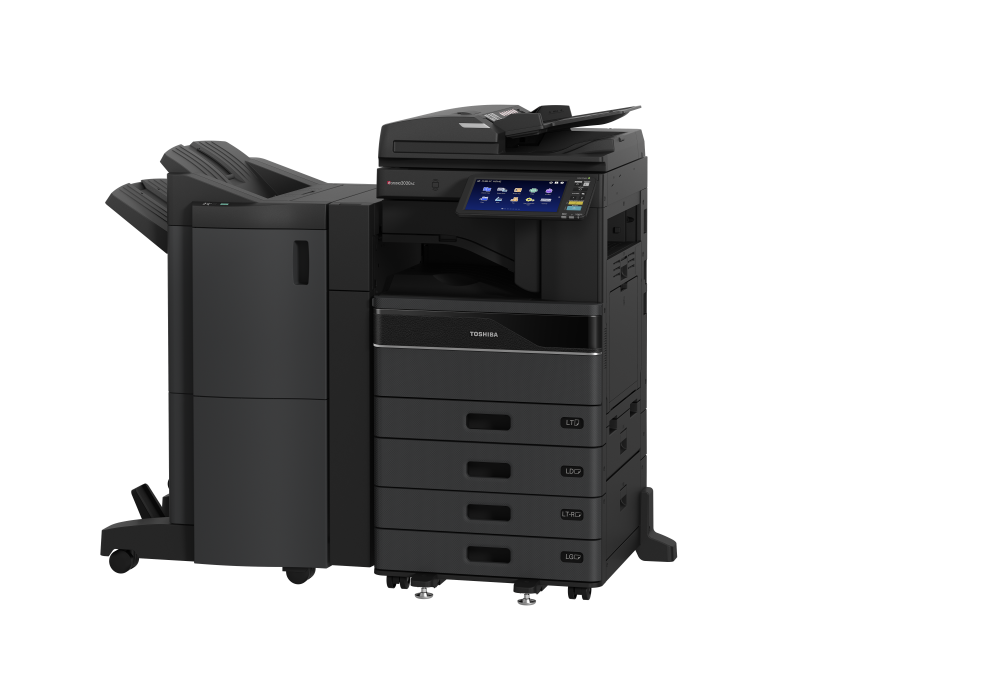

e-Studio 2020AC
Device Management:
TopAccess for remote administration and configuration
System Features:
e-Filing document server for secure storage, Document distribution and Print-on-Demand (1 public box, 200 user boxes), 1,233,840 one-touch templates for storage of personalised settings or workflows, Scan/Fax Preview, RIP-while-Print, e-BRIDGE Open Platform*, Embedded Web Browser, Job Skip, PCL Barcode printing, e-BRIDGE Plus embedded apps
Accounting & Security:
Role Based Access, LDAP support, 1,000 department & 10,000 user codes, Card Reader*, Private print, Standard data encryption with Security SSD, Data Overwrite function when optional HDD is chosen, IP and MAC address filter, Port filter, Support of SSL and IPsec* protocols, IEEE802.1x support, CC certified (ISO/IEC15408) with HCD-PP v1.0*, Scan to Secure PDF, Pull-printing*
Features and Specifications
e-STUDIO2020AC
- Multifunctional A3 colour systems with features tailored to the needs and wishes of small- to medium-sized enterprises to support modern document workflows
- Large and fully customisable user interface for easy to access all functions and increased efficiency
- High-speed document output of up to 20 pages per minute
Specifications: e-STUDIO2020AC
GENERAL
| Print & Copy Speed: | 20 ppm (A4) 10 ppm (A3) |
|
Warm-up Time:
|
~ 13.1 seconds from low power mode
|
|
Paper Size & Weight:
|
Cassette: A5R-A3, 60-163 g/m² Bypass: 100 x 148 mm-A3, 60-209 g/m² |
|
Paper Capacity:
|
Cassette: 1x 250 sheets, Bypass: 1x 100 sheets Max.: 2,900 sheets |
|
Inner Output Tray:
|
550-sheet capacity
|
|
Automatic Duplex:
|
A5R-A3, 60-163 g/m²
|
|
Controller Type:
|
Toshiba e-BRIDGE Next
|
|
Control Panel:
|
26 cm (10.1″) Multi-Touch Colour Panel
|
|
Memory:
|
Security SSD 128 GB**, Standard: 4 GB RAM |
|
Interface:
|
10Base-T/100Base-TX/1000Base-T, High-Speed USB 2.0, WLAN* (IEEE802.11b/g/n), Bluetooth*, Wi-Fi Direct* |
|
Dimensions & Weight:
|
575 x 586 x 662 mm (W x D x H), ~ 57.0 kg
|
| Initial Consumables: | Drums, Developers, Waste Toner Box |
|
Resolution:
|
600 x 600 dpi, 3 bit, 1,200 dpi x 1,200 dpi, 2 bit (1,200 dpi x 2,400 dpi) with PostScript driver only |
|
Page Description Languages:
|
PCL5e, PCL5c, PCL6 (PCL XL), XPS, PDF, PS3 and JPEG
|
|
Supported Systems:
|
Windows 11/10/8.1, Windows Server 2022/2019/2016/2012 R2/2012 (64bit), Mac OS 10.12-12, Linux/Unix, Citrix, SAP, AS/400
|
|
Network Protocols:
|
TCP/IP (IPv4/IPv6), NetBios over TCP/IP
|
|
Colour Modes:
|
Auto-Colour (ACS), Colour, Twin Colour, Monochrome
|
|
Colour Settings:
|
ICC profile colour management, Brightness, Saturation, Contrast, Colour Balance
|
|
Mobile Printing:
|
e-BRIDGE Print & Capture, Mopria® Print Service, AirPrint®
|
|
Print Functions:
|
Universal Printer Driver, Driver Templates, Driver plug-ins*, Print from USB, Hold print, Tandem printing, E-mail direct printing
|
SCAN
|
Resolution:
|
Maximum 600 x 600 dpi |
|
Scan Speed:
|
Reversing Automatic Document Feeder*: up to 73 ppm (300 dpi) in colour and monochrome |
|
Scan Modes:
|
Auto-Colour (ACS), Colour, Greyscale, Monochrome
|
|
File Formats:
|
JPEG, Multi/Single Page TIFF/XPS/PDF, Secure PDF, Slim PDF, PDF/A , PDF/A-2, Searchable PDF (and other formats like DOCX, XLSX)* ***
|
|
Scan Functions:
|
WS Scan, Scan to USB, Scan to E-Mail, Scan to File (SMB, FTP, FTPS, Local), Meta Scan*, OCR scan, Scan to Box (e-Filing), WIA, TWAIN |
COPY
|
Resolution:
|
Scan: 600 x 600 dpi Print: 600 x 600 dpi, 5 bit, equiv. 2,400 x 600 dpi with smoothing (monochrome only) |
|
First Print Output Time:
|
Colour: ~ 9.5 seconds Monochrome: ~ 7.1 seconds |
|
Zoom:
|
Platen*: 25-400%, RADF*: 25-200%
|
|
Copy Modes:
|
Text, Text/Photo, Photo, Printed Image, Map, Image Smoothing
|
|
Colour Modes:
|
Auto-Colour (ACS), Full Colour, Twin Colour, Mono Colour, Monochrome
|
|
Colour Settings:
|
Hue, Saturation, Colour Balance, RGB adjustment, 5 one-touch modes
|
|
Copy Functions:
|
Electronic Sort, Rotate Sort, ID Card Copy, Edge Erase, 2-in-1 / 4-in-1 mode
|
FAX*
|
Communication:
|
Super G3, G3 – (opt. 2nd line), Internet Fax T.37
|
|
Transmission Speed:
|
~ 3 seconds per page
|
|
Compression:
|
JBIG, MMR, MR, MH
|
|
Fax Memory:
|
1 GB Transmission/Reception
|
|
Network-Fax:
|
Driver for Windows 11/10/8.1, Windows Server 2022/2019/2016/Server 2012 R2/Server 2012 (64 bit)
|
|
Incoming Fax Routing:
|
To shared folders (SMB, FTP), E-Mail, e-Filing
|
e-STUDIO2510AC
- 25 PPM, Color/Mono
- 350/2,900 Paper Capacity (Std./Max)
- 320 GB Self-Encrypting HDD
- Large 10.1″ Tablet-Style UI
- PostScript 3 Support
- Multi-Function Printer
The e-STUDIO2510AC comprises an A3/LD-size color MFP series that offers print speeds of 25 ppm. For group projects, for business and for those who need color print function, we are here to assist you. The series incorporates with industry-leading technology and innovations that are designed to help small groups of people stay connect and simple.
Features and Specifications
FEATURES
| PRODUCTIVITY | |
| Color print speeds of up to 25 PPM B&W- up to 25 PPM | |
| Color scan speeds of up to 73 IPM at 300 x 300dpi resolution | |
| e-BRIDGE Next Open Platform support | |
| Low energy fuser system | |
| 11″ x 17″ 90 lb index automatic duplexing from the drawers | |
| 110 lb cover support through the bypass | |
| Blank page omission for copying and printing | |
| Outside Erase for copying books and 3D objects | |
| High compression PDF scanning (Slim PDF) | |
| New Toshiba inner finisher and saddle stitch finisher | |
| Universal Print Driver | |
| 320GB Self-Encrypting Drive FIPS 140-2 Validated | |
| Job Skip | |
| IMAGE QUALITY | |
| Patented ASICs provide superb clarity and rich text renditions in all scanning, printing and copying jobs | |
| Up to 600 x 600 dpi print resolution | |
| Automatic Image quality control function | |
| OPERABILITY | |
| New Toshiba developed 9 inch tablet-style touch color control panel for easier operation | |
| Quick Copy & Scan Buttons | |
| Scan Preview | |
| New Control Panel Print Function button | |
| Dual-line Fax Option | |
| One Touch Templates | |
| Private Printing Feature | |
| SERVICEABILITY | |
| Easy Replaceable Unit Design | |
| Long Life consumables and duty cycles | |
SPECIFICATIONS
| MAIN SPECIFICATIONS | |
| Copy Process | Indirect Electrostatic Photographic Method/OPC/Laser Printing/Heat Roller Fusing |
| Display | 10.1” Color WVGA Touch Screen Tilting Display |
| Copy Speed | 25 PPM (LT) |
| First Copy Out | 9.5 Seconds Color/7.1 Seconds B&W |
| Warm-Up Time | Approx. 21 Seconds |
| Copy Resolution | 600 x 600 dpi |
| Stack Feed Bypass | ST-R to LD, Envelope |
| Multiple Copying | Up to 999 Copies |
| Paper Capacity | Standard 350 Sheets/Max. 2,900 Sheets |
| Original Feed | Optional 100-Sheet RADF |
| Scan Speed & Weights | RADF Scan: Up to 73 IPM (Monochrome or Color), Simplex: 9.3-41.8 lb Bond, Duplex: 13.3-41.8 lb Bond |
| Max. Original Size | LD |
| Paper Feed Sizes | Drawer 1: 250 Sheets-ST-R to LD, Stack Feed Bypass: 100 Sheets-3.9” x 5.8” to LD, Opt. Paper Feed Unit: 550 Sheets-ST-R to LD, Opt. 550-Sheet Paper Feed Pedestal-ST-R to LD, Opt. 550-Sheet Drawer for PFP -ST-R to LD, Opt. Envelope Cassette for PFP-Approx. 60 Envelopes/550 Sheets-ST-R to LG, Opt. 2,000-Sheet Tandem LCF (Pedestal Type)-LT Only |
| Paper Weights | Standard: 250 Sheets-16 lb Bond-90 lb Index, Stack Feed Bypass: 100 Sheets-16 lb Bond-110 lb Index, Opt. Paper Feed Unit: 550 Sheets-16 lb Bond-90 lb Index, Opt. 550-Sheet Paper Feed Pedestal: 16 lb Bond-90 lb Index, Opt. 550-Sheet Drawer for PFP: 16 lb Bond-90 lb Index, Opt. Envelope Cassette for PFP: 16 lb Bond-lb Index, Opt. 2,000-Sheet Tandem LCF (Pedestal Type): 17-28 lb Bond |
| Duplex | Standard Automatic Duplex Unit: 16 lb Bond-90 lb Index |
| Reproduction Ratio | 25% to 400% |
| Max Duty Cycle | Max. 84K Month |
| Weight | Approx. 126 lb |
| Approx. Dimensions | 22.6” (W) x 23” (D) x 26.1” (H) |
| Toner Yield | CMY: 33.6K, BK: 38.4K @ 5% |
| Power Source | 120 Volts, 50/60 Hz, 12 Amps |
| Power Consumption | Maximum 1.5kW (120V) |
| CPU | Intel Atom™1.33GHz (Dual-Core) |
| Memory | 4GB |
| Hard Disk Drive | 320GB Self-Encrypting Drive FIPS 140-2 Validated |
| E-BRIDGE NEXT PRINT SPECIFICATIONS | |
| PDL | PCL5e, PCL5c, PCL6 (PCL XL), PS3, PDF, XPS, JPEG |
| Print Speed | 25 Pages Per Minute (LT) |
| Print Resolution | 600 x 600 dpi (5 bit) 600 x 1,200 dpi (1 bit) PS3 Only |
| Operating Systems | Windows® Vista, Windows Server® 2008/R2, Windows® 7, 8, 8.1, 10, Windows Server® 2012/R2, Macintosh® (Mac OS × 10.4, 10.5, 10.6, 10.7, 10.8, 10.9, 10.10, 10,11), Unix®, Linux® |
| Network Protocols | TCP/IP (IPv4, IPv6), NetBIOS over TCP/IP, IPX/SPX® for Novell® Environments, EtherTalk® for Macintosh Environments |
| Printing Protocols | SMB, LPR/LPD, IPP (Ver.1.1) w/Authentication, AppleTalk PAP or EtherTalkTM, Port 9100 (bi-directional), NetWare P-SERVER LPD w/ iPrint, WS Print, FTP |
| Print Drivers | Windows® Vista SP2 (32-bit, 64-bit), Windows Server® 2008 SP2 (32-bit, 64-bit), Windows Server® 2008 R2 SP1 (64-bit), Windows® 7 SP1 (32-bit, 64-bit), Windows® 8/8.1 (32-bit, 64-bit), Windows Server® 2012/R2 (64-bit), Windows® 10 (32-bit, 64-bit), Mac OS® X 10.6.8, 10.7.4, 10.8, 10.9, 10.10 |
| Interface | RJ-45 Ethernet (10/100/1000 Base-T), USB 2.0 (High-speed), Optional 802.11b/g/n, Wireless LAN, Optional Bluetooth |
| Wireless Device | AirPrint®, Mopria®, e-BRIDGE Print & Capture Application on iOS and Android (Available via Apple App Store or Google Play) |
| Device Management | TopAccess, EFMS 6.2 (e-BRIDGE Fleet Management Software) |
| Account Control | Up to 10,000 users or 1,000 Departments Supports User Authentication (on Device), Login Name/Password (via Windows domain) or Login Name/Password (via LDAP Server) for Copy, Print, Scan, Fax, List, and User Function |
| Accessibility Features | Tilt Front Panel, Job Programs, Universal Grip for Paper Trays, Disable Screen Timeout and Audible Beep Message Alerts |
| Security Features | User Authentication, On-Board Data Scramble Function, SCEP, Disable e-Filing, Disable Copy, Disk Overwrite, IP Address Filtering (10 Sets), MAC Address Filtering (10 Sets), Network Service Control, Network Port Control, SMB Packet Signing, SSL (HTTP, IPP, LDAP, SMTP, POP, FTP, DPWS), IPsec (IKEv1, IKEv2), Security Mode Change, CC Certified (ISO/IEC15408 EAL3+)*, IEEE2600.1, IEEE802.1X, Digital Signature for Client Utilities, Password Policy, Password Lock, Password Expiration, Self Testing, Job Access Control, Log Access Control for Job Log, Security Stamp * Compliant with IEEE2600.1 in High security mode. |
| Environmental Stds | Energy Star (V2.0), EPEAT Gold, Blue Angel Mark (RAL UZ-171, MFD), Canadian ECP, Californian Proposition 65, Nordic Swan, RoHS |
| Certification | WHQL (Windows 7, 8, 8.1, 10, 2008 R2, 2012, 2012 R2), Novell, Citrix, SAP |
| SCAN SPECIFICATIONS | |
| Scan Speed | RADF Scan: Up to 73 IPM (Monochrome or Color) |
| Scan Modes | Standard: Full Color, Auto Color, Monochrome, Grayscale |
| Scan Resolution | 600 dpi, 400 dpi, 300 dpi, 200 dpi, 150 dpi, 100 dpi |
| File Formats | Monochrome: TIFF-Multi/Single Page, PDF-Multi/Single Page, Searchable PDF (Opt.), XPS-Multi/Single Page, DOCX (Opt.), XLSX (Opt.), PPTX (Opt.) Color/Grayscale: JPEG, TIFF-Multi/Single Page, PDF-Multi/Single Page, Slim PDF, Searchable PDF (Opt.), XPS-Multi/Single Page, DOCX (Opt.), XLSX (Opt.), PPTX (Opt.) |
| Image Compression | Color/Grayscale: JPEG (High, Middle, Low) |
| FAX SPECIFICATIONS | |
| Compatibility | Super G3 |
| Data Compression | MH/MR/MMR/JBIG |
| Transmission Speed | Approx. 3 Seconds Per Page |
| Fax Modem Speed | Up to 33.6 Kbps |
| Memory Transmission | 100 Jobs (with HDD), 2,000 Destinations Max. 400 Destinations /Job |
| Scan Speed | 0.7 Seconds Per Page, Maximum 73 IPM |
| E-FILING SPECIFICATIONS | |
| Operation Method | Color Touch Screen Control Panel or Client PC |
| Number of Boxes | 1 Public Box; 200 Private User Boxes |
| Capacity of Boxes | 100 Folder per Box; 400 Documents per Folder; 200 Pages per Documents |
e-STUDIO3015AC
- 30 PPM, Color/Mono
- 1,200/3,200 Paper Capacity (Std./Max)
- 1,200 x 1,200 DPI Color Print Resolution
- Large 10.1″ Tablet-Style UI
- Envelope & Specialty Media Ready
- Multi-Function Printer
Features and Specifications
FEATURES
| PRODUCTIVITY | |
| Color print speeds of up to 30 PPM, B&W- up to 30 PPM | |
| DSDF Scan: Up to 240 IPM Duplex, 120 IPM Simplex | |
| RADF Scan: Up to 73 IPM | |
| e-BRIDGE Next Open Platform support | |
| Indirect Electrostatic Photographic Method/OPC/Laser Printing/Heat Roller Fusing | |
| 11″ x 17″ 140 lb index automatic duplexing from the drawers | |
| 110 lb cover support through the bypass | |
| Blank page omission for copying and printing | |
| Outside Erase for copying books and 3D objects | |
| High compression PDF scanning (Slim PDF) | |
| Full featured new Toshiba multi-position and saddle stitch finishers | |
| Universal Print Driver | |
| 320GB Self-Encrypting Drive FIPS 140-2 Validated | |
| Solutions Ready | |
| IMAGE QUALITY | |
| Patented ASICs provide superb clarity and rich text renditions in all scanning, printing and copying jobs | |
| Up to 1,200 x 1,200 dpi print resolution | |
| Automatic Image quality control function | |
| OPERABILITY | |
| New Toshiba developed 9 inch tablet-style touch color control panel for easier operation | |
| Quick Copy & Scan Buttons | |
| Scan Preview | |
| New Control Panel Print Function button | |
| Dual-line Fax Option | |
| One Touch Templates | |
| Private Printing Feature | |
| SERVICEABILITY | |
| Easy Replaceable Unit Design | |
| Long Life consumables and duty cycles | |
SPECIFICATIONS
| MAIN SPECIFICATIONS | |
| Copy Process | Indirect Electrostatic Photographic Method/OPC/Laser Printing/Heat Roller Fusing |
| Display | 10.1” Color WVGA Touch Screen Tilting Display |
| Copy Speed | 30 PPM (LT) |
| First Copy Out | 7.8 Seconds Color/5.9 Seconds B&W |
| Warm-Up Time | Approx. 20 Seconds |
| Copy Resolution | 600 x 600 dpi |
| Stack Feed Bypass | 3.9” x 5.8” to 12” x 18”, 12” x 47” Banner, Envelope |
| Multiple Copying | Up to 999 Copies |
| Paper Capacity | Standard 1,200 Sheets/Max. 3,200 Sheets |
| Original Feed | Optional 300-Sheet DSDF or 100-Sheet RADF |
| Scan Speed & Weights | DSDF Scan: Up to 240 IPM Duplex, 120 IPM Simplex (Monochrome or Color), Simplex: 9.3-110 lb Bond, Duplex: 9.3-110 lb Bond RADF Scan: Up to 73 IPM (Monochrome or Color): Simplex: 9.3-41.8 lb Bond, Duplex: 13.3-41.8 lb Bond |
| Max. Original Size | LD |
| Paper Feed Sizes | Drawer 1: 550 Sheets-ST-R to LD, Drawer 2: 550 Sheets-ST-R to LD, Stack Feed Bypass: 100 Sheets-3.9” x 5.8” to LD, Opt. 550-Sheet Paper Feed Pedestal-ST-R to LD, Opt. 550-Sheet Drawer for PFP-ST-R to LD, Opt. Envelope Cassette for PFP-Approx. 60 Envelopes/550 Sheets-ST-R to LG. Opt. 2,000-Sheet Tandem LCF (Pedestal Type)-LT Only |
| Paper Weights | Standard: 550 Sheets x 2-16 lb Bond-140 lb Index, Stack Feed Bypass: 100 Sheets-14 lb Bond-140 lb Index, Opt. 550-Sheet Paper Feed Pedestal-16 lb Bond-140 lb Index, Opt. 550-Sheet Drawer for PFP -16 lb Bond-140 lb Index, Opt. Envelope Cassette for PFP-16 lb Bond-140 lb Index, Opt. 2,000-Sheet Tandem LCF (Pedestal Type), 17-28 lb Bond |
| Duplex | Standard Automatic Duplex Unit (16 lb Bond-140 lb Index) |
| Reproduction Ratio | 25% to 400% |
| Max Duty Cycle | Max. 90K Month (Color: 100%) Max. 180K Month (Monochrome: 100%) |
| Weight | Approx. 166 lb |
| Approx. Dimensions | 23” (W) x 25.2” (D) x 31” (H) |
| Toner Yield | CMY: 33.6K, K: 38.4K @ 5% |
| Power Source | 120 Volts, 50/60 Hz, 15 Amps |
| Power Consumption | Maximum 1.5kW (120V) |
| CPU | Intel Atom™1.33GHz (Dual-Core) |
| Memory | 4GB |
| Hard Disk Drive | 320GB Self-Encrypting Drive FIPS 140-2 Validated |
| E-BRIDGE NEXT PRINT SPECIFICATIONS | |
| PDL | PCL5e, PCL5c, PCL6 (PCL XL), PS3, PDF, XPS, JPEG |
| Print Speed | 30 Pages Per Minute (LT) |
| Print Resolution | 600 x 600 dpi (1 bit) or 2,400 x 600 dpi (with Smoothing), 1,200 x 1,200 dpi (2 bit) or 3,600 x 1,200 dpi (with Smoothing) PS3 Only |
| Operating Systems | Windows® Vista, Windows Server® 2008/R2, Windows® 7, 8, 8.1, 10, Windows Server® 2012/R2, Macintosh® (Mac OS × 10.4, 10.5, 10.6, 10.7, 10.8, 10.9, 10.10, 10,11), Unix®, Linux® |
| Network Protocols | TCP/IP (IPv4, IPv6), NetBIOS over TCP/IP, IPX/SPX® for Novell® Environments, EtherTalk® for Macintosh Environments |
| Printing Protocols | SMB, LPR/LPD, IPP (Ver.1.1) w/Authentication, AppleTalk PAP or EtherTalkTM, Port 9100 (bi-directional), NetWare P-SERVER LPD w/ iPrint, WS Print, FTP |
| Print Drivers | Windows® Vista SP2 (32-bit, 64-bit), Windows Server® 2008 SP2 (32-bit, 64-bit), Windows Server® 2008 R2 SP1 (64-bit), Windows® 7 SP1 (32-bit, 64-bit), Windows® 8/8.1 (32-bit, 64-bit), Windows Server® 2012/R2 (64-bit), Windows® 10 (32-bit, 64-bit), Mac OS® X 10.6.8, 10.7.4, 10.8, 10.9, 10.10 |
| Interface | RJ-45 Ethernet (10/100/1000 Base-T), USB 2.0 (High-speed), Optional 802.11b/g/n, Wireless LAN, Optional Bluetooth |
| Wireless Device | AirPrint®, Mopria®, e-BRIDGE Print & Capture Application on iOS and Android (Available via Apple App Store or Google Play) |
| Device Management | TopAccess, EFMS 6.2 (e-BRIDGE Fleet Management Software) |
| Account Control | Up to 10,000 users or 1,000 Departments Supports User Authentication (on Device), Login Name/Password (via Windows domain) or Login Name/Password (via LDAP Server) for Copy, Print, Scan, Fax, List, and User Function |
| Accessibility Features | Tilt Front Panel, Job Programs, Universal Grip for Paper Trays, Disable Screen Timeout and Audible Beep Message Alerts |
| Security Features | User Authentication, On-Board Data Scramble Function, SCEP, Disable e-Filing, Disable Copy, Disk Overwrite, IP Address Filtering (10 Sets), MAC Address Filtering (10 Sets), Network Service Control, Network Port Control, SMB Packet Signing, SSL (HTTP, IPP, LDAP, SMTP, POP, FTP, DPWS), IPsec (IKEv1, IKEv2), Security Mode Change, CC Certified (ISO/IEC15408 EAL3+)*, IEEE2600.1, IEEE802.1X, Digital Signature for Client Utilities, Password Policy, Password Lock, Password Expiration, Self Testing, Job Access Control, Log Access Control for Job Log, Security Stamp * Compliant with IEEE2600.1 in High security mode. |
| Environmental Stds | Energy Star (V2.0), EPEAT Gold, Blue Angel Mark (RAL UZ-171, MFD), Canadian ECP, Californian Proposition 65, Nordic Swan, RoHS |
| Certification | WHQL (Windows 7, 8, 8.1, 10, 2008 R2, 2012, 2012 R2), Novell, Citrix, SAP |
| SCAN SPECIFICATIONS | |
| Scan Speed | DSDF Scan: Up to 240 IPM Duplex, 120 IPM Simplex (Monochrome or Color), RADF Scan: Up to 73 IPM (Monochrome or Color) |
| Scan Modes | Standard: Full Color, Auto Color, Monochrome, Grayscale |
| Scan Resolution | 600 dpi, 400 dpi, 300 dpi, 200 dpi, 150 dpi, 100 dpi |
| File Formats | Monochrome: TIFF-Multi/Single Page, PDF-Multi/Single Page, Searchable PDF (Opt.), XPS-Multi/Single Page, DOCX (Opt.), XLSX (Opt.), PPTX (Opt.) Color/Grayscale: JPEG, TIFF-Multi/Single Page, PDF-Multi/Single Page, Slim PDF, Searchable PDF (Opt.), XPS-Multi/Single Page, DOCX (Opt.), XLSX (Opt.), PPTX (Opt.) |
| Image Compression | Color/Grayscale: JPEG (High, Middle, Low) |
| FAX SPECIFICATIONS | |
| Compatibility | Super G3 |
| Data Compression | MH/MR/MMR/JBIG |
| Transmission Speed | Approx. 3 Seconds Per Page |
| Fax Modem Speed | Up to 33.6 Kbps |
| Memory Transmission | 100 Jobs (with HDD), 2,000 Destinations Max. 400 Destinations /Job |
| Scan Speed | 0.7 Seconds Per Page, Maximum 73 IPM |
| E-FILING SPECIFICATIONS | |
| Operation Method | Color Touch Screen Control Panel or Client PC |
| Number of Boxes | 1 Public Box; 200 Private User Boxes |
| Capacity of Boxes | 100 Folder per Box; 400 Documents per Folder; 200 Pages per Documents |
e-STUDIO3025AC
- High-Speed – Up to 30 PPM, Color/Mono
- Compact Design
- Advanced Security Features
- Solutions Ready
- Environmentally Friendly
Features and Specifications
e-STUDIO3025AC FEATURES
| PRODUCTIVITY | |
| Color print speeds of up to 30 PPM; B&W up to 30 PPM | |
| DSDF Scan: Up to 240 IPM Duplex, 120 IPM Simplex | |
| RADF Scan: Up to 73 IPM | |
| e-BRIDGE Next Open Platform support | |
| Indirect Electrostatic Photographic Method/OPC/Laser Printing/Heat Roller Fusing | |
| 11″ x 17″ 140 lb index automatic duplexing from the drawers | |
| 110 lb cover support through the bypass | |
| Blank page omission for copying and printing | |
| Outside Erase for copying books and 3D objects | |
| High compression PDF scanning (Slim PDF) | |
| Full featured new Toshiba multi-position and saddle stitch finishers | |
| Universal Print Driver | |
| 128GB Solid State Drive (SSD) | |
| Solutions Ready | |
| IMAGE QUALITY | |
| Patented ASICs provide superb clarity and rich text renditions in all scanning, printing and copying jobs | |
| Up to 1,200 x 1,200 dpi print resolution | |
| Automatic Image quality control function | |
| OPERABILITY | |
| New Toshiba developed 10.1” tablet-style touch color control panel for easier operation | |
| Quick Copy & Scan Buttons | |
| Scan Preview | |
| New Control Panel Print Function button | |
| Dual-line Fax Option | |
| One Touch Templates | |
| Private Printing Feature | |
| SERVICEABILITY | |
| Easy Replaceable Unit Design | |
| Long Life consumables and duty cycles | |
e-STUDIO3025AC SPECIFICATIONS
| MAIN SPECIFICATIONS | |
| Copy Process | Indirect Electrostatic Photographic Method/OPC/Laser Printing/Heat Roller Fusing |
| Display | 10.1” Color WSVGA Touch Screen Tilting Display |
| Copy Speed | 30 PPM (LT) |
| First Copy Out | Color: Less than 7.8 Seconds Monochrome: Less than 5.9 Seconds |
| Warm-Up Time | From Powering On: Approx. 20 Seconds From Sleep & Lower Power: Less than 12 Seconds |
| Copy Resolution | 600 x 600 dpi |
| Stack Feed Bypass | 3.9” x 5.8” to 12” x 18”, 12” x 47” Banner, Envelope |
| Multiple Copying | Up to 999 Copies |
| Paper Capacity | Standard 1,200 Sheets/Max. 5,200 Sheets |
| Original Feed | 300-Sheet DSDF or DSDF with Double-Feed Detection or 100-Sheet RADF |
| Scan Speed & Weights | DSDF Scan: Up to 70 IPM (Monochrome or Color), Simplex or Duplex: 9.3-110 lb Bond RADF Scan: Up to 50 IPM (Monochrome or Color), Simplex: 9.3-41.8 lb Bond, Duplex: 13.3-41.8 lb Bond |
| Max. Original Size | LD/A3 |
| Paper Feed Sizes | Drawer 1: 550 Sheets-ST-R to LD, Drawer 2: 550 Sheets-ST-R to 12” x 18”, Stack Feed Bypass: 100 Sheets-3.9” x 5.8” to 12” x 18”, 12” x 47” Banner, Opt. 550-Sheet Paper Feed Pedestal-ST-R to 12” x 18”, Opt. 550-Sheet Drawer for PFP-ST-R to 12” x 18”, Opt. Envelope Cassette for PFP-Approx. 60 Envelopes/550 Sheets-ST-R to LG. Opt. 2,000-Sheet Tandem LCF (Pedestal Type)-LT Only, Opt. 2,000-Sheet External LCF-LT Only |
| Paper Weights | Standard: 550 Sheets x 2-16 lb Bond-110 lb Cover, Stack Feed Bypass: 100 Sheets-14 lb Bond-110 lb Cover, Opt. 550-Sheet Paper Feed Pedestal-16 lb Bond-110 lb Cover, Opt. 550-Sheet Drawer for PFP -16 lb Bond-110 lb Cover, Opt. Envelope Cassette for PFP-16 lb Bond-140 lb Index, Opt. 2,000-Sheet Tandem LCF (Pedestal Type), 17-28 lb Bond, Opt. 2,000-Sheet External LCF-LT-16 lb Bond-110 lb Cover |
| Duplex | Standard Automatic Duplex Unit (16 lb Bond-140 lb Index) |
| Reproduction Ratio | 25% to 400% |
| Max Duty Cycle | Max. 90K Month (Color: 100%) Max. 180K Month (Monochrome: 100%) |
| Weight | Approx. 169 lb |
| Approx. Dimensions | 23” (W) x 25.2” (D) x 31” (H) |
| Toner Yield | CMY: 38K, K: 39.8K @ 5% |
| Power Source | 120 Volts, 50/60 Hz, 12 Amps |
| Power Consumption | Maximum 1.8kW (120V) |
| Plug Type | NEMA 5/15 |
| Memory | 4GB |
| Hard Disk Drive | 128GB Solid State Drive (SSD) |
| E-BRIDGE NEXT PRINT SPECIFICATIONS | |
| PDL | PCL5e, PCL5c, PCL6 (PCL XL), PS3, PDF, XPS, JPEG |
| Print Speed | 30 PPM (LT) |
| Print Resolution | 600 x 600 dpi (5 bit), 1,200 x 1,200 dpi (Color/2 bit), or 3,600 (Equivalence) x 1,200 dpi (BW/with Smoothing) (PS3 Only) |
| Operating Systems | Windows® 8.1, 10, 11, Windows Server® 2012/R2, Windows Server® 2016/19/22, Macintosh® (macOS X 10.10-15, 12), Unix®, Linux® |
| Network Protocols | TCP/IP (IPv4, IPv6), NetBIOS over TCP/IP, IPX/SPX® for Novell® Environments, EtherTalk® for Macintosh Environments |
| Printing Protocols | SMB V1-3, LPR/LPD, IPP V1.2 w/ Authentication (TLS 1.2/1.3), AppleTalk® PAP or EtherTalk®, Port 9100 (Bi-Directional), NetWare P-SERVER LPD w/ iPrint, BlueTooth (HCRP/BIP/OPP/FTP), WS Print, FTP |
| Print Drivers | Windows® 8.1 (32-bit, 64-bit), Windows Server® 2012/R2 (64-bit), Windows® Server 2016/19/22, Windows® 10, 11 (64-bit), macOS X 10.12-15, 11, 12 |
| Interface | RJ-45 Ethernet (10/100/1000 Base-T), USB 2.0 (High-Speed), Optional IEEE802.11b/g/n, Wireless LAN, Optional Bluetooth |
| Wireless Device | AirPrint®, Mopria®, e-BRIDGE Print & Capture Application on iOS and Android (Available via Apple® App Store or Google Play) |
| Device Management | TopAccess |
| Account Control | Up to 10,000 users or 1,000 Departments Supports User Authentication (on Device), Login Name/Password (via Windows® Domain) or Login Name/Password (via LDAP Server) for Copy, Print, Scan, Fax, List, and User Function |
| Accessibility Features | Tilt Front Panel, Job Programs, Universal Grip for Paper Trays, Disable Screen Timeout, Audible Beeps, Optional Voice Assist |
| Security Features | User Authentication, Trusted Platform Module, On-Board Data Scramble Function, SCEP, Disable e-Filing, Disable Copy, Disk Overwrite, IP Address Filtering (10 Sets), MAC Address Filtering (10 Sets), Network Service Control, Network Port Control, SMB Packet Signing, SSL/TLS (HTTP, IPP, LDAP, SMTP, POP, FTP, DPWS, SYSLOG), IPsec (IKEv1, IKEv2), Security Mode Change, CC Certified (ISO/IEC15408*) with HCD-PP v1.0, IEEE802.1X (Wired/Wireless), Digital Signature for Client Utilities, Password Policy, Password Lock, Password Expiration, Self Testing, Job Access Control, Log Access Control for Job Log, Security Stamp, Role Based Access Control, Secure PDF, Digital Signature for Firmware Update, Integritiy Check Function, Image Log, Card Authentication, Biometric Authentication *Conformance with HCD-PP v1.0 in High Security Mode |
| Environmental Stds | ENERGY STAR® (V3.1), EPEAT Gold, Californian Proposition 65 |
| Certification | WHQL (Windows® 8, 8.1, 10, 11, 2012, 2012 R2, 2016/19/22), Novell®, Citrix®, SAP, AirPrint®, and Mopria® |
| SCAN SPECIFICATIONS | |
| Scan Speed | DSDF Scan: Up to 240 IPM Duplex, 120 IPM Simplex (Monochrome or Color), RADF Scan: Up to 73 IPM (Monochrome or Color) |
| Scan Modes | Standard: Full Color, Auto Color, Monochrome, Grayscale |
| OCR | DOC/XLS/PPT/PDF |
| Scan Resolution | 600 dpi, 400 dpi, 300 dpi, 200 dpi, 150 dpi, 100 dpi |
| File Formats | Monochrome: TIFF-Multi/Single Page, PDF-Multi/Single Page, PDF/A, Searchable PDF, XPS-Multi/Single Page, DOCX, XLSX, PPTX Color/Grayscale: JPEG, TIFF-Multi/Single Page, PDF-Multi/Single Page, PDF/A, Slim PDF, Searchable PDF, XPS-Multi/Single Page, DOCX, XLSX, PPTX |
| Image Compression | Color/Grayscale: JPEG (High, Middle, Low) |
| FAX SPECIFICATIONS | |
| Compatibility | Super G3 |
| Data Compression | MH/MR/MMR/JBIG |
| Transmission Speed | Approx. 3 Seconds Per Page |
| Fax Modem Speed | Up to 33.6 Kbps |
| Memory Transmission | 100 Jobs (with HDD), 2,000 Destinations Max. 400 Destinations /Job |
| Scan Speed | 0.7 Seconds Per Page, Maximum 73 IPM |
| E-FILING SPECIFICATIONS | |
| Operation Method | Color Touch Screen Control Panel or Client PC |
| Number of Boxes | 1 Public Box; 200 Private User Boxes |
| Capacity of Boxes | 100 Folder per Box; 400 Documents per Folder/Box; 200 Pages per Document |
e-STUDIO4515AC
- 45 PPM, Color/Mono
- 1,200/3,200 Paper Capacity (Std./Max)
- 1,200 x 1,200 DPI Color Print Resolution
- 320 GB Self-Encrypting HDD
- Up to 240 Duplex IPM Scan Speed
- Multi-Function Printer
Features and Specifications
FEATURES
| PRODUCTIVITY | |
| Color print speeds of up to 45 PPM, B&W- up to 45 PPM | |
| DSDF Scan: Up to 240 IPM Duplex, 120 IPM Simplex | |
| RADF Scan: Up to 73 IPM | |
| e-BRIDGE Next Open Platform support | |
| Indirect Electrostatic Photographic Method/OPC/Laser Printing/Heat Roller Fusing | |
| 11″ x 17″ 140 lb index automatic duplexing from the drawers | |
| 110 lb cover support through the bypass | |
| Blank page omission for copying and printing | |
| Outside Erase for copying books and 3D objects | |
| High compression PDF scanning (Slim PDF) | |
| Full featured new Toshiba multi-position and saddle stitch finishers | |
| Universal Print Driver | |
| 320GB Self-Encrypting Drive FIPS 140-2 Validated | |
| Solutions Ready | |
| IMAGE QUALITY | |
| Patented ASICs provide superb clarity and rich text renditions in all scanning, printing and copying jobs | |
| Up to 1,200 x 1,200 dpi print resolution | |
| Automatic Image quality control function | |
| OPERABILITY | |
| New Toshiba developed 9 inch tablet-style touch color control panel for easier operation | |
| Quick Copy & Scan Buttons | |
| Scan Preview | |
| New Control Panel Print Function button | |
| Dual-line Fax Option | |
| One Touch Templates | |
| Private Printing Feature | |
| SERVICEABILITY | |
| Easy Replaceable Unit Design | |
| Long Life consumables and duty cycles | |
SPECIFICATIONS
| MAIN SPECIFICATIONS | |
| Copy Process | Indirect Electrostatic Photographic Method/OPC/Laser Printing/Heat Roller Fusing |
| Display | 10.1” Color WVGA Touch Screen Tilting Display |
| Copy Speed | 45 PPM (LT) |
| First Copy Out | 5.7 Seconds Color/4.4 Seconds B&W |
| Warm-Up Time | Approx. 20 Seconds |
| Copy Resolution | 600 x 600 dpi |
| Stack Feed Bypass | 3.9” x 5.8” to 12” x 18”, 12” x 47” Banner, Envelope |
| Multiple Copying | Up to 999 Copies |
| Paper Capacity | Standard 1,200 Sheets/Max. 3,200 Sheets |
| Original Feed | Optional 300-Sheet DSDF or 100-Sheet RADF |
| Scan Speed & Weights | DSDF Scan: Up to 240 IPM Duplex, 120 IPM Simplex (Monochrome or Color), Simplex: 9.3-110 lb Bond, Duplex: 9.3-110 lb Bond RADF Scan: Up to 73 IPM (Monochrome or Color): Simplex: 9.3-41.8 lb Bond, Duplex: 13.3-41.8 lb Bond |
| Max. Original Size | LD |
| Paper Feed Sizes | Drawer 1: 550 Sheets-ST-R to LD, Drawer 2: 550 Sheets-ST-R to LD, Stack Feed Bypass: 100 Sheets-3.9” x 5.8” to LD, Opt. 550-Sheet Paper Feed Pedestal-ST-R to LD, Opt. 550-Sheet Drawer for PFP-ST-R to LD, Opt. Envelope Cassette for PFP-Approx. 60 Envelopes/550 Sheets-ST-R to LG. Opt. 2,000-Sheet Tandem LCF (Pedestal Type)-LT Only |
| Paper Weights | Standard: 550 Sheets x 2-16 lb Bond-140 lb Index, Stack Feed Bypass: 100 Sheets-14 lb Bond-140 lb Index, Opt. 550-Sheet Paper Feed Pedestal-16 lb Bond-140 lb Index, Opt. 550-Sheet Drawer for PFP -16 lb Bond-140 lb Index, Opt. Envelope Cassette for PFP-16 lb Bond-140 lb Index, Opt. 2,000-Sheet Tandem LCF (Pedestal Type), 17-28 lb Bond |
| Duplex | Standard Automatic Duplex Unit (16 lb Bond-140 lb Index) |
| Reproduction Ratio | 25% to 400% |
| Max Duty Cycle | Max.105K Month (Color: 100%) Max. 210K Month (Monochrome: 100%) |
| Weight | Approx. 166 lb |
| Approx. Dimensions | 23” (W) x 25.2″ (D) x 31” (H) |
| Toner Yield | CMY: 33.6K, K: 38.4K @ 5% |
| Power Source | 120 Volts, 50/60 Hz, 12 Amps |
| Power Consumption | Maximum 1.5kW (120V) |
| CPU | Intel Atom™1.33GHz (Dual-Core) |
| Memory | 4GB |
| Hard Disk Drive | 320GB Self-Encrypting Drive FIPS 140-2 Validated |
| E-BRIDGE NEXT PRINT SPECIFICATIONS | |
| PDL | PCL5e, PCL5c, PCL6 (PCL XL), PS3, PDF, XPS, JPEG |
| Print Speed | 45 Pages Per Minute (LT) |
| Print Resolution | 600 x 600 dpi (1 bit) or 2,400 x 600 dpi (with Smoothing), 1,200 x 1,200 dpi (2 bit) or 3,600 x 1,200 dpi (with Smoothing) PS3 Only |
| Operating Systems | Windows® Vista, Windows Server® 2008/R2, Windows® 7, 8, 8.1, 10, Windows Server® 2012/R2, Macintosh® (Mac OS × 10.4, 10.5, 10.6, 10.7, 10.8, 10.9, 10.10, 10,11), Unix®, Linux® |
| Network Protocols | TCP/IP (IPv4, IPv6), NetBIOS over TCP/IP, IPX/SPX® for Novell® Environments, EtherTalk® for Macintosh Environments |
| Printing Protocols | SMB, LPR/LPD, IPP (Ver.1.1) w/Authentication, AppleTalk PAP or EtherTalkTM, Port 9100 (bi-directional), NetWare P-SERVER LPD w/ iPrint, WS Print, FTP |
| Print Drivers | Windows® Vista SP2 (32-bit, 64-bit), Windows Server® 2008 SP2 (32-bit, 64-bit), Windows Server® 2008 R2 SP1 (64-bit), Windows® 7 SP1 (32-bit, 64-bit), Windows® 8/8.1 (32-bit, 64-bit), Windows Server® 2012/R2 (64-bit), Windows® 10 (32-bit, 64-bit), Mac OS® X 10.6.8, 10.7.4, 10.8, 10.9, 10.10 |
| Interface | RJ-45 Ethernet (10/100/1000 Base-T), USB 2.0 (High-speed), Optional 802.11b/g/n, Wireless LAN, Optional Bluetooth |
| Wireless Device | AirPrint®, Mopria®, e-BRIDGE Print & Capture Application on iOS and Android (Available via Apple App Store or Google Play) |
| Device Management | TopAccess, EFMS 6.2 (e-BRIDGE Fleet Management Software) |
| Account Control | Up to 10,000 users or 1,000 Departments Supports User Authentication (on Device), Login Name/Password (via Windows domain) or Login Name/Password (via LDAP Server) for Copy, Print, Scan, Fax, List, and User Function |
| Accessibility Features | Tilt Front Panel, Job Programs, Universal Grip for Paper Trays, Disable Screen Timeout and Audible Beep Message Alerts |
| Security Features | User Authentication, On-Board Data Scramble Function, SCEP, Disable e-Filing, Disable Copy, Disk Overwrite, IP Address Filtering (10 Sets), MAC Address Filtering (10 Sets), Network Service Control, Network Port Control, SMB Packet Signing, SSL (HTTP, IPP, LDAP, SMTP, POP, FTP, DPWS), IPsec (IKEv1, IKEv2), Security Mode Change, CC Certified (ISO/IEC15408 EAL3+)*, IEEE2600.1, IEEE802.1X, Digital Signature for Client Utilities, Password Policy, Password Lock, Password Expiration, Self Testing, Job Access Control, Log Access Control for Job Log, Security Stamp * Compliant with IEEE2600.1 in High security mode. |
| Environmental Stds | Energy Star (V2.0), EPEAT Gold, Blue Angel Mark (RAL UZ-171, MFD), Canadian ECP, Californian Proposition 65, Nordic Swan, RoHS |
| Certification | WHQL (Windows 7, 8, 8.1, 10, 2008 R2, 2012, 2012 R2), Novell, Citrix, SAP |
| SCAN SPECIFICATIONS | |
| Scan Speed | DSDF Scan: Up to 240 IPM Duplex, 120 IPM Simplex (Monochrome or Color), RADF Scan: Up to 73 IPM (Monochrome or Color) |
| Scan Modes | Standard: Full Color, Auto Color, Monochrome, Grayscale |
| Scan Resolution | 600 dpi, 400 dpi, 300 dpi, 200 dpi, 150 dpi, 100 dpi |
| File Formats | Monochrome: TIFF-Multi/Single Page, PDF-Multi/Single Page, Searchable PDF (Opt.), XPS-Multi/Single Page, DOCX (Opt.), XLSX (Opt.), PPTX (Opt.) Color/Grayscale: JPEG, TIFF-Multi/Single Page, PDF-Multi/Single Page, Slim PDF, Searchable PDF (Opt.), XPS-Multi/Single Page, DOCX (Opt.), XLSX (Opt.), PPTX (Opt.) |
| Image Compression | Color/Grayscale: JPEG (High, Middle, Low) |
| FAX SPECIFICATIONS | |
| Compatibility | Super G3 |
| Data Compression | MH/MR/MMR/JBIG |
| Transmission Speed | Approx. 3 Seconds Per Page |
| Fax Modem Speed | Up to 33.6 Kbps |
| Memory Transmission | 100 Jobs (with HDD), 2,000 Destinations Max. 400 Destinations /Job |
| Scan Speed | 0.7 Seconds Per Page, Maximum 73 IPM |
| E-FILING SPECIFICATIONS | |
| Operation Method | Color Touch Screen Control Panel or Client PC |
| Number of Boxes | 1 Public Box; 200 Private User Boxes |
| Capacity of Boxes | 100 Folder per Box; 400 Documents per Folder; 200 Pages per Documents |
e-STUDIO5015AC
- 50 PPM, Color/Mono
- 1,200/3,200 Paper Capacity (Std./Max)
- 1,200 x 1,200 DPI Color Print Resolution
- Large 10.1″ Tablet-Style UI
- PostScript 3 Support
- Multi-Function Printer
Features and Specifications
FEATURES
| PRODUCTIVITY | |
| Color print speeds of up to 50 PPM, B&W- up to 50 PPM | |
| DSDF Scan: Up to 240 IPM Duplex, 120 IPM Simplex | |
| RADF Scan: Up to 73 IPM | |
| e-BRIDGE Next Open Platform support | |
| Indirect Electrostatic Photographic Method/OPC/Laser Printing/Heat Roller Fusing | |
| 11″ x 17″ 140 lb index automatic duplexing from the drawers | |
| 110 lb cover support through the bypass | |
| Blank page omission for copying and printing | |
| Outside Erase for copying books and 3D objects | |
| High compression PDF scanning (Slim PDF) | |
| Full featured new Toshiba multi-position and saddle stitch finishers | |
| Universal Print Driver | |
| 320GB Self-Encrypting Drive FIPS 140-2 Validated | |
| Solutions Ready | |
| IMAGE QUALITY | |
| Patented ASICs provide superb clarity and rich text renditions in all scanning, printing and copying jobs | |
| Up to 1,200 x 1,200 dpi print resolution | |
| Automatic Image quality control function | |
| OPERABILITY | |
| New Toshiba developed 9 inch tablet-style touch color control panel for easier operation | |
| Quick Copy & Scan Buttons | |
| Scan Preview | |
| New Control Panel Print Function button | |
| Dual-line Fax Option | |
| One Touch Templates | |
| Private Printing Feature | |
| SERVICEABILITY | |
| Easy Replaceable Unit Design | |
| Long Life consumables and duty cycles | |
SPECIFICATIONS
| MAIN SPECIFICATIONS | |
| Copy Process | Indirect Electrostatic Photographic Method/OPC/Laser Printing/Heat Roller Fusing |
| Display | 10.1” Color WVGA Touch Screen Tilting Display |
| Copy Speed | 50 PPM (LT) |
| First Copy Out | 5.7 Seconds Color/ 4.4 Seconds B&W |
| Warm-Up Time | Approx. 20 Seconds |
| Copy Resolution | 600 x 600 dpi |
| Stack Feed Bypass | 3.9” x 5.8” to 12” x 18”, 12” x 47” Banner, Envelope |
| Multiple Copying | Up to 999 Copies |
| Paper Capacity | Standard 1,200 Sheets/Max. 3,200 Sheets |
| Original Feed | Optional 300-Sheet DSDF or 100-Sheet RADF |
| Scan Speed & Weights | DSDF Scan: Up to 240 IPM Duplex, 120 IPM Simplex (Monochrome or Color), Simplex: 9.3-110 lb Bond, Duplex: 9.3-110 lb Bond RADF Scan: Up to 73 IPM (Monochrome or Color): Simplex: 9.3-41.8 lb Bond, Duplex: 13.3-41.8 lb Bond |
| Max. Original Size | LD |
| Paper Feed Sizes | Drawer 1: 550 Sheets-ST-R to LD, Drawer 2: 550 Sheets-ST-R to LD, Stack Feed Bypass: 100 Sheets-3.9” x 5.8” to LD, Opt. 550-Sheet Paper Feed Pedestal-ST-R to LD, Opt. 550-Sheet Drawer for PFP-ST-R to LD, Opt. Envelope Cassette for PFP-Approx. 60 Envelopes/550 Sheets-ST-R to LG. Opt. 2,000-Sheet Tandem LCF (Pedestal Type)-LT Only |
| Paper Weights | Standard: 550 Sheets x 2-16 lb Bond-140 lb Index, Stack Feed Bypass: 100 Sheets-14 lb Bond-140 lb Index, Opt. 550-Sheet Paper Feed Pedestal-16 lb Bond-140 lb Index, Opt. 550-Sheet Drawer for PFP -16 lb Bond-140 lb Index, Opt. Envelope Cassette for PFP-16 lb Bond-140 lb Index, Opt. 2,000-Sheet Tandem LCF (Pedestal Type), 17-28 lb Bond |
| Duplex | Standard Automatic Duplex Unit (16 lb Bond-140 lb Index) |
| Reproduction Ratio | 25% to 400% |
| Max Duty Cycle | Max. 105K Month (Color: 100%) Max. 210K Month (Monochrome: 100%) |
| Weight | Approx. 166 lb |
| Approx. Dimensions | 23” (W) x 25.2”(D) x 31” (H) |
| Toner Yield | CMY: 33.6K, K: 38.4K @ 5% |
| Power Source | 120 Volts, 50/60 Hz, 12 Amps |
| Power Consumption | Maximum 1.5kW (120V) |
| CPU | Intel Atom™1.33GHz (Dual-Core) |
| Memory | 4GB |
| Hard Disk Drive | 320GB Self-Encrypting Drive FIPS 140-2 Validated |
| E-BRIDGE NEXT PRINT SPECIFICATIONS | |
| PDL | PCL5e, PCL5c, PCL6 (PCL XL), PS3, PDF, XPS, JPEG |
| Print Speed | 50 Pages Per Minute (LT) |
| Print Resolution | 600 x 600 dpi (1 bit) or 2,400 x 600 dpi (with Smoothing), 1,200 x 1,200 dpi (2 bit) or 3,600 x 1,200 dpi (with Smoothing) PS3 Only |
| Operating Systems | Windows® Vista, Windows Server® 2008/R2, Windows® 7, 8, 8.1, 10, Windows Server® 2012/R2, Macintosh® (Mac OS × 10.4, 10.5, 10.6, 10.7, 10.8, 10.9, 10.10, 10,11), Unix®, Linux® |
| Network Protocols | TCP/IP (IPv4, IPv6), NetBIOS over TCP/IP, IPX/SPX® for Novell® Environments, EtherTalk® for Macintosh Environments |
| Printing Protocols | SMB, LPR/LPD, IPP (Ver.1.1) w/Authentication, AppleTalk PAP or EtherTalkTM, Port 9100 (bi-directional), NetWare P-SERVER LPD w/ iPrint, WS Print, FTP |
| Print Drivers | Windows® Vista SP2 (32-bit, 64-bit), Windows Server® 2008 SP2 (32-bit, 64-bit), Windows Server® 2008 R2 SP1 (64-bit), Windows® 7 SP1 (32-bit, 64-bit), Windows® 8/8.1 (32-bit, 64-bit), Windows Server® 2012/R2 (64-bit), Windows® 10 (32-bit, 64-bit), Mac OS® X 10.6.8, 10.7.4, 10.8, 10.9, 10.10 |
| Interface | RJ-45 Ethernet (10/100/1000 Base-T), USB 2.0 (High-speed), Optional 802.11b/g/n, Wireless LAN, Optional Bluetooth |
| Wireless Device | AirPrint®, Mopria®, e-BRIDGE Print & Capture Application on iOS and Android (Available via Apple App Store or Google Play) |
| Device Management | TopAccess, EFMS 6.2 (e-BRIDGE Fleet Management Software) |
| Account Control | Up to 10,000 users or 1,000 Departments Supports User Authentication (on Device), Login Name/Password (via Windows domain) or Login Name/Password (via LDAP Server) for Copy, Print, Scan, Fax, List, and User Function |
| Accessibility Features | Tilt Front Panel, Job Programs, Universal Grip for Paper Trays, Disable Screen Timeout and Audible Beep Message Alerts |
| Security Features | User Authentication, On-Board Data Scramble Function, SCEP, Disable e-Filing, Disable Copy, Disk Overwrite, IP Address Filtering (10 Sets), MAC Address Filtering (10 Sets), Network Service Control, Network Port Control, SMB Packet Signing, SSL (HTTP, IPP, LDAP, SMTP, POP, FTP, DPWS), IPsec (IKEv1, IKEv2), Security Mode Change, CC Certified (ISO/IEC15408 EAL3+)*, IEEE2600.1, IEEE802.1X, Digital Signature for Client Utilities, Password Policy, Password Lock, Password Expiration, Self Testing, Job Access Control, Log Access Control for Job Log, Security Stamp * Compliant with IEEE2600.1 in High security mode. |
| Environmental Stds | Energy Star (V2.0), EPEAT Gold, Blue Angel Mark (RAL UZ-171, MFD), Canadian ECP, Californian Proposition 65, Nordic Swan, RoHS |
| Certification | WHQL (Windows 7, 8, 8.1, 10, 2008 R2, 2012, 2012 R2), Novell, Citrix, SAP |
| SCAN SPECIFICATIONS | |
| Scan Speed | DSDF Scan: Up to 240 IPM Duplex, 120 IPM Simplex (Monochrome or Color), RADF Scan: Up to 73 IPM (Monochrome or Color) |
| Scan Modes | Standard: Full Color, Auto Color, Monochrome, Grayscale |
| Scan Resolution | 600 dpi, 400 dpi, 300 dpi, 200 dpi, 150 dpi, 100 dpi |
| File Formats | Monochrome: TIFF-Multi/Single Page, PDF-Multi/Single Page, Searchable PDF (Opt.), XPS-Multi/Single Page, DOCX (Opt.), XLSX (Opt.), PPTX (Opt.) Color/Grayscale: JPEG, TIFF-Multi/Single Page, PDF-Multi/Single Page, Slim PDF, Searchable PDF (Opt.), XPS-Multi/Single Page, DOCX (Opt.), XLSX (Opt.), PPTX (Opt.) |
| Image Compression | Color/Grayscale: JPEG (High, Middle, Low) |
| FAX SPECIFICATIONS | |
| Compatibility | Super G3 |
| Data Compression | MH/MR/MMR/JBIG |
| Transmission Speed | Approx. 3 Seconds Per Page |
| Fax Modem Speed | Up to 33.6 Kbps |
| Memory Transmission | 100 Jobs (with HDD), 2,000 Destinations Max. 400 Destinations /Job |
| Scan Speed | 0.7 Seconds Per Page, Maximum 73 IPM |
| E-FILING SPECIFICATIONS | |
| Operation Method | Color Touch Screen Control Panel or Client PC |
| Number of Boxes | 1 Public Box; 200 Private User Boxes |
| Capacity of Boxes | 100 Folder per Box; 400 Documents per Folder; 200 Pages per Documents |
e-STUDIO5516AC
- 55 PPM, Color / 65 PPM, Mono
- 3,520/6,020 Paper Capacity (Std./Max)
- 240 Duplex Scans Per Minute
- Service Module Design
- Broad Media Range Support
- Multi-Function Printer
Features and Specifications
FEATURES
| PRODUCTIVITY | |
| Color print speeds of up to 55 PPM, B&W- up to 65 PPM | |
| DSDF Scan: Up to 240 IPM Duplex, 120 IPM Simplex | |
| 12″ x 18″ 140 lb index automatic duplexing from the drawers | |
| 13″ x 19″ 110 lb cover support through the bypass | |
| Universal Print Driver | |
| 320GB Self-Encrypting Drive | |
| Solutions Ready | |
| IMAGE QUALITY | |
| Patented ASICs provide superb clarity and rich text renditions in all scanning, printing and copying jobs | |
| Up to 1200 x 1200 dpi print resolution | |
| Automatic Image quality control function | |
| OPERABILITY | |
| New Toshiba developed 10.1 inch tablet-style touch color control panel for easier operation | |
| Scan Preview | |
| Dual-line Fax Option | |
| One Touch Templates | |
| SERVICEABILITY | |
| Easy Replaceable Unit Design | |
| Long Life consumables and duty cycles | |
SPECIFICATIONS
| MAIN SPECIFICATIONS | |
| Copy Process | Indirect Electrostatic Photographic Method/OPC/Laser Printing/Heat Roller Fusing |
| Display | 10.1” Color WVGA Touch Screen Tilting Display |
| Copy Speed | Color: 55 PPM (LT), Monochrome: 65 PPM (LT) |
| First Copy Out | Color: 6.4, Monochrome: 5.2 |
| Warm-Up Time | Approx. 20 Seconds |
| Copy Resolution | 600 x 600 dpi |
| Stack Feed Bypass | 3.9” x 5.8” to 13” x 19”, 12” x 47” Banner, Envelope |
| Multiple Copying | Up to 9,999 Copies |
| Paper Capacity | 4-Drawer: 2,280 Sheets/Max. 4,780 Sheets Tandem Drawer: Standard 3,520 Sheets/Max. 6,020 Sheets |
| Original Feed | Standard 300-Sheet DSDF |
| Scan Speed & Weights | DSDF Scan: Up to 240 IPM Duplex, 120 IPM Simplex (Monochrome or Color), Simplex: 9.3-110 lb Index, Duplex: 9.3-110 lb Index |
| Max. Original Size | LD |
| Paper Feed Sizes | Drawers: 540 Sheets-ST-R to 12” x 18” Integral Tandem LCF 1,160 x 2 LT-Only Stack Feed Bypass: 120 Sheets-3.9” x 5.8” to 13” x 19”, 12” x 47” Banner 2,500-Sheet Ext. LCF LT-Only |
| Paper Weights | 4-Drawer: Standard 540 Sheets x 4-16 lb Bond-140 lb Index Tandem LCF 1,160 Sheets x 2-16 lb Bond-140 lb Index Plus 540 Sheets x 2-16 lb Bond-140 lb Index Stack Feed Bypass: 120 Sheets-16 lb Bond-110 lb Cover Opt. 2,500-Sheet Ext. LCF LT-Only -16 lb Bond-140 lb Index |
| Duplex | Standard Automatic Duplex Unit (16 lb Bond-140 lb Index) |
| Reproduction Ratio | 25% to 400% |
| Max Duty Cycle | Max. 480K Month (Color: 100%) |
| Weight | Approx. 470 lb |
| Approx. Dimensions | 37.6” (W) x 28.9” (D) x 48.3” (H) |
| Toner Yield | CMY 39,200, K: 106,600 @ 5% |
| Power Source | 120 Volts, 50/60 Hz, 16 Amps |
| Power Consumption | Maximum 2.0kW (120V) |
| CPU | Intel Atom™ 1.75 GHz (Dual-Core |
| Memory | 4GB |
| Hard Disk Drive | 320GB Self-Encrypting Drive |
| E-BRIDGE NEXT PRINT SPECIFICATIONS | |
| PDL | PCL5e, PCL5c, PCL6 (PCL XL), PS3, PDF, XPS, JPEG |
| Print Speed | 55 PPM (LT) Color / 65 PPM (LT) B&W |
| Print Resolution | 600 x 600 dpi (5 bit), 1,200 x 1,200 dpi (Color/2 bit) or 3,600 x 1,200 dpi (BW/with Smoothing) PS3 Only |
| Operating Systems | Windows® Vista, Windows Server® 2008/R2, Windows® 7, 8, 8.1, 10, Windows Server® 2012/R2, Macintosh® (Mac OS X 10.6, 10.7, 10.8, 10.9, 10.10, 10.11), Unix®, Linux® |
| Network Protocols | TCP/IP (IPv4, IPv6), NetBIOS over TCP/IP, IPX/SPX® for Novell® Environments, EtherTalk® for Macintosh Environments |
| Printing Protocols | SMB, LPR/LPD, IPP (Ver.1.1) w/Authentication, AppleTalk PAP or EtherTalk™, Port 9100 (bi-directional), NetWare P-SERVER LPD w/ iPrint, WS Print, FTP |
| Print Drivers | Windows® Vista SP2 (32-bit, 64-bit), Windows Server® 2008 SP2 (32-bit, 64- bit), Windows Server® 2008 R2 SP1 (64-bit), Windows® 7 SP1 (32-bit, 64-bit), Windows® 8/8.1 (32-bit, 64-bit), Windows Server® 2012/R2 (64-bit), Windows® 10 (32-bit, 64-bit), Mac OS® X 10.6.8, 10.7.4, 10.8, 10.9, 10.10, 10.11 |
| Interface | RJ-45 Ethernet (10/100/1000 Base-T), USB 2.0 (High-speed) Optional 802.11b/g/n, Wireless LAN, Optional Bluetooth |
| Wireless Device | AirPrint™, Mopria®, e-BRIDGE Print & Capture Application on iOS and Android (Available via Apple App Store or Google Play) |
| Device Management | TopAccess, EFMS 6.2 (e-BRIDGE Fleet Management Software) |
| Account Control | Up to 10,000 users or 1,000 Departments Supports User Authentication (on Device), Login Name/Password (via Windows domain) or Login Name/ Password (via LDAP Server) for Copy, Print, Scan, Fax, List, and User Function |
| Accessibility Features | Tilt Front Panel, Job Programs, Universal Grip for Paper Trays, Disable Screen Timeout and Audible Beep Message Alerts |
| Security Features | User Authentication, On-Board Data Scramble Function, SCEP, Disable e-Filing, Disable Copy, Disk Overwrite, IP Address Filtering (10 Sets), MAC Address Filtering (10 Sets), Network Service Control, Network Port Control, SMB Packet Signing, SSL (HTTP, IPP, LDAP, SMTP, POP, FTP, DPWS), IPsec (IKEv1, IKEv2), Security Mode Change, CC Certified (ISO/IEC15408 EAL3+)*, IEEE2600.1, IEEE802.1X, Digital Signature for Client Utilities, Password Policy, Password Lock, Password Expiration, Self Testing, Job Access Control, Log Access Control for Job Log, Security Stamp *Compliant with IEEE2600.1 in High Security Mode. |
| Environmental Stds | Energy Star (V2.0), EPEAT Gold, RoHS |
| Certification | WHQL (Windows 7, 8, 8.1, 10, 2008 R2, 2012, 2012 R2), Novell, Citrix, SAP |
| SCAN SPECIFICATIONS | |
| Scan Speed | DSDF Scan: Up to 240 IPM Duplex, 120 IPM Simplex (Monochrome or Color) |
| Scan Modes | Standard: Full Color, Auto Color, Monochrome, Grayscale |
| Scan Resolution | 600 dpi, 400 dpi, 300 dpi, 200 dpi, 150 dpi, 100 dpi |
| File Formats | Monochrome: TIFF-Multi/Single Page, PDF-Multi/Single Page, Searchable PDF (Opt.), XPS-Multi/Single Page, DOCX (Opt.), XLSX (Opt.), PPTX (Opt.) Color/Grayscale: JPEG, TIFF-Multi/Single Page, PDF-Multi/Single Page, Slim PDF, Searchable PDF (Opt.), XPS-Multi/Single Page, DOCX (Opt.), XLSX (Opt.), PPTX (Opt.) |
| Image Compression | Color/Grayscale: JPEG (High, Middle, Low) |
| FAX SPECIFICATIONS | |
| Compatibility | Super G3 |
| Data Compression | MH/MR/MMR/JBIG |
| Transmission Speed | Approx. 3 Seconds Per Page |
| Fax Modem Speed | Up to 33.6 Kbps |
| Memory Transmission | 100 Jobs (with HDD), 2,000 Destinations Max. 400 Destinations /Job |
| Scan Speed | 0.7 Seconds Per Page, Maximum 73 IPM |
| E-FILING SPECIFICATIONS | |
| Operation Method | Color Touch Screen Control Panel or Client PC |
| Number of Boxes | 1 Public Box; 200 Private User Boxes |
| Capacity of Boxes | 100 Folders Per Box, 400 Documents Per Folder/Box, 200 Pages Per Document |
e-STUDIO7516AC
- 75 PPM, Color / 85 PPM, Mono
- 3,520/6,020 Paper Capacity (Std./Max)
- 240 Duplex Scans Per Minute
- Available in 4-Drawer & Tandem
- Flagship Color Performance
- Multi-Function Printer
The e-STUDIO7516AC are high-end color MFPs that boast a color printing output 75 ppm. Many amounts of printings and scanning are required for daily work? If yes, here we have some solutions for you. This series of MFPs integrates newly-engineered software, enhanced user interface, and embedded application platform. Such advanced functions are your best business partners in your daily work.
Features and Specifications
FEATURES
| PRODUCTIVITY | |
| Color print speeds of up to 75 PPM, B&W- up to 85 PPM | |
| DSDF Scan: Up to 240 IPM Duplex, 120 IPM Simplex | |
| 12″ x 18″ 140 lb index automatic duplexing from the drawers | |
| 13: x 19″ 110 lb cover support through the bypass | |
| Universal Print Driver | |
| 320GB Self-Encrypting Drive | |
| Solutions Ready | |
| IMAGE QUALITY | |
| Patented ASICs provide superb clarity and rich text renditions in all scanning, printing and copying jobs | |
| Up to 1,200 x 1,200 dpi print resolution | |
| Automatic Image quality control function | |
| OPERABILITY | |
| New Toshiba developed 10.1 inch tablet-style touch color control panel for easier operation | |
| Scan Preview | |
| Dual-line Fax Option | |
| One Touch Templates | |
| SERVICEABILITY | |
| Easy Replaceable Unit Design | |
| Long Life consumables and duty cycles | |
SPECIFICATIONS
| MAIN SPECIFICATIONS | |
| Copy Process | Indirect Electrostatic Photographic Method/OPC/Laser Printing/ Heat Roller Fusing |
| Display | 10.1” Color WVGA Touch Screen Tilting Display |
| Copy Speed | Color: 75 PPM (LT), Monochrome: 85 PPM (LT) |
| First Copy Out | Color: 5.4, Monochrome: 4.1 |
| Warm-Up Time | Approx. 20 Seconds |
| Copy Resolution | 600 x 600 dpi |
| Stack Feed Bypass | 3.9” x 5.8” to 13” x 19”, 12” x 47” Banner, Envelope |
| Multiple Copying | Up to 9,999 Copies |
| Paper Capacity | 4-Drawer: 2,280 Sheets/Max. 4,780 Sheets Tandem Drawer: Standard 3,520 Sheets/Max. 6,020 Sheets |
| Original Feed | Standard 300-Sheet DSDF |
| Scan Speed & Weights | DSDF Scan: Up to 240 IPM Duplex, 120 IPM Simplex (Monochrome or Color), Simplex: 9.3-110 lb Index, Duplex: 9.3-110 lb Index |
| Max. Original Size | LD |
| Paper Feed Sizes | Drawers: 540 Sheets-ST-R to 12” x 18” Integral Tandem LCF 1,160 x 2 LT-Only Stack Feed Bypass: 120 Sheets-3.9” x 5.8” to 13” x 19”, 12” x 47” Banner 2,500-Sheet Ext. LCF LT-Only |
| Paper Weights | 4-Drawer: Standard 540 Sheets x 4-16 lb Bond-140 lb Index Tandem LCF 1,160 Sheets x 2-16 lb Bond-140 lb Index Plus 540 Sheets x 2-16 lb Bond-140 lb Index Stack Feed Bypass: 120 Sheets-16 lb Bond-110 lb Cover Opt. 2,500-Sheet Ext. LCF LT-Only -16 lb Bond-140 lb Index |
| Duplex | Standard Automatic Duplex Unit (16 lb Bond-140 lb Index |
| Reproduction Ratio | 25% to 400% |
| Max Duty Cycle | Max. 600K Month |
| Weight | Approx. 470 lb |
| Approx. Dimensions | 37.6” (W) x 28.9” (D) x 48.3” (H) |
| Toner Yield | CMY 39,200, K: 106,600 @ 5% |
| Power Source | 120 Volts, 50/60 Hz, 16 Amps |
| Power Consumption | Maximum 2.0kW (120V) |
| CPU | Intel Atom™ 1.75 GHz (Dual-Core) |
| Memory | 4GB |
| Hard Disk Drive | 320GB Self-Encrypting Drive |
| E-BRIDGE NEXT PRINT SPECIFICATIONS | |
| PDL | PCL5e, PCL5c, PCL6 (PCL XL), PS3, PDF, XPS, JPEG |
| Print Speed | Color: 55/65/75 PPM (LT), Monochrome: 65/75/85 PPM (LT) |
| Print Resolution | 600 x 600 dpi (5 bit), 1,200 x 1,200 dpi (Color/2 bit) or 3,600 x 1,200 dpi (BW/with Smoothing) PS3 Only |
| Operating Systems | Windows® Vista, Windows Server® 2008/R2, Windows® 7, 8, 8.1, 10, Windows Server® 2012/R2, Macintosh® (Mac OS X 10.6, 10.7, 10.8, 10.9, 10.10, 10.11), Unix®, Linux® |
| Network Protocols | TCP/IP (IPv4, IPv6), NetBIOS over TCP/IP, IPX/SPX® for Novell® Environments, EtherTalk® for Macintosh Environments |
| Printing Protocols | SMB, LPR/LPD, IPP (Ver.1.1) w/Authentication, AppleTalk PAP or EtherTalk™, Port 9100 (bi-directional), NetWare P-SERVER LPD w/ iPrint, WS Print, FTP |
| Print Drivers | Windows® Vista SP2 (32-bit, 64-bit), Windows Server® 2008 SP2 (32-bit, 64- bit), Windows Server® 2008 R2 SP1 (64-bit), Windows® 7 SP1 (32-bit, 64-bit), Windows® 8/8.1 (32-bit, 64-bit), Windows Server® 2012/R2 (64-bit), Windows® 10 (32-bit, 64-bit), Mac OS® X 10.6.8, 10.7.4, 10.8, 10.9, 10.10, 10.11 |
| Interface | RJ-45 Ethernet (10/100/1000 Base-T), USB 2.0 (High-speed) Optional 802.11b/g/n, Wireless LAN, Optional Bluetooth |
| Wireless Device | AirPrint™, Mopria®, e-BRIDGE Print & Capture Application on iOS and Android (Available via Apple App Store or Google Play) |
| Device Management | TopAccess, EFMS 6.2 (e-BRIDGE Fleet Management Software) |
| Account Control | Up to 10,000 users or 1,000 Departments Supports User Authentication (on Device), Login Name/Password (via Windows domain) or Login Name/ Password (via LDAP Server) for Copy, Print, Scan, Fax, List, and User Function |
| Accessibility Features | Tilt Front Panel, Job Programs, Universal Grip for Paper Trays, Disable Screen Timeout and Audible Beep Message Alerts |
| Security Features | User Authentication, On-Board Data Scramble Function, SCEP, Disable e-Filing, Disable Copy, Disk Overwrite, IP Address Filtering (10 Sets), MAC Address Filtering (10 Sets), Network Service Control, Network Port Control, SMB Packet Signing, SSL (HTTP, IPP, LDAP, SMTP, POP, FTP, DPWS), IPsec (IKEv1, IKEv2), Security Mode Change, CC Certified (ISO/IEC15408 EAL3+)*, IEEE2600.1, IEEE802.1X, Digital Signature for Client Utilities, Password Policy, Password Lock, Password Expiration, Self Testing, Job Access Control, Log Access Control for Job Log, Security Stamp *Compliant with IEEE2600.1 in High Security Mode. |
| Environmental Stds | Energy Star (V2.0), EPEAT Gold, RoHS |
| Certification | WHQL (Windows 7, 8, 8.1, 10, 2008 R2, 2012, 2012 R2), Novell, Citrix, SAP |
| SCAN SPECIFICATIONS | |
| Scan Speed | DSDF Scan: Up to 240 IPM Duplex, 120 IPM Simplex (Monochrome or Color) |
| Scan Modes | Standard: Full Color, Auto Color, Monochrome, Grayscale |
| Scan Resolution | 600 dpi, 400 dpi, 300 dpi, 200 dpi, 150 dpi, 100 dpi |
| File Formats | Monochrome: TIFF-Multi/Single Page, PDF-Multi/Single Page, Searchable PDF (Opt.), XPS-Multi/Single Page, DOCX (Opt.), XLSX (Opt.), PPTX (Opt.) Color/Grayscale: JPEG, TIFF-Multi/Single Page, PDF-Multi/Single Page, Slim PDF, Searchable PDF (Opt.), XPS-Multi/Single Page, DOCX (Opt.), XLSX (Opt.), PPTX (Opt.) |
| Image Compression | Color/Grayscale: JPEG (High, Middle, Low) |
| FAX SPECIFICATIONS | |
| Compatibility | Super G3 |
| Data Compression | MH/MR/MMR/JBIG |
| Transmission Speed | Approx. 3 Seconds Per Page |
| Fax Modem Speed | Up to 33.6 Kbps |
| Memory Transmission | 100 Jobs (with HDD), 2,000 Destinations Max. 400 Destinations/Job |
| Scan Speed | 0.7 Seconds Per Page, Maximum 73 IPM |
| E-FILING SPECIFICATIONS | |
| Operation Method | Color Touch Screen Control Panel or Client PC |
| Number of Boxes | 1 Public Box; 200 Private User Boxes |
| Capacity of Boxes | 100 Folder per Box; 400 Documents per Folder; 200 Pages per Documents |
