Unleash the power of pure efficiency with our Toshiba e-Studio Monochrome MFPs, built for speed and cost-effectiveness. Dominate your document workflow with lightning-fast printing and whisper-quiet operation. Get crisp, professional results every time, without breaking the bank.
Our Available Monochrome Toshiba e-Studio Multi-Function Printer
- e-STUDIO2822AF
- e-STUDIO2523AD
- e-STUDIO3018A
- e-STUDIO3028A
- e-STUDIO3518A
- e-STUDIO4518A
- e-STUDIO5018A
- e-STUDIO5518A
- e-STUDIO6518A
- e-STUDIO7518A
- e-STUDIO8518A
e-STUDIO2822AF
-
- 28 PPM, Mono
- 300-Sheet Paper Capacity
- Ledger-Size Paper Support
- Compact Design
- Copy, Print, Scan & Fax
- Multi-Function Printer
Features and Specifications
e-STUDIO2822AF FEATURES
| GENERAL FEATURES | |
| B&W MFP | |
| Small Workgroup | |
| 28 PPM | |
| Copy, Print, Scan, Fax | |
| EPEAT Gold | |
| 10/100 Base T Network Interface Standard | |
| Fax & 802.11 b/g/n wireless | |
| COPY FEATURES | |
| 50-sheet Reversing Automatic Document Feeder | |
| Energy Saver | |
| AMS/APS | |
| Auto Job Start | |
| Auto Sort Mode | |
| Electronic Sort | |
| ID Card Copy | |
| Department Codes (100) | |
| 2-in-1 / 4-in-1 | |
| SCAN FEATURES | |
| Standard TWAIN Scanning (Toshiba Viewer) | |
| 600 DPI Resolution | |
| Up to 11″ x 17″ Scanning | |
| Standard Network I/F | |
| Scan-to-Email, Scan-to-File, Scan-to-FTP | |
| UP to 10 Scan Templates | |
| TIFF, Multi-TIFF, PDF Formats | |
| MANAGEMENT FEATURES | |
| TopAccess | |
| e-BRIDGE CloudConnect (eCC) | |
e-STUDIO2822AF SPECIFICATIONS
| COPY SPECIFICATIONS | |
| Copy Process | Indirect Electrostatic Photographic Method |
| Type | Desktop |
| Copy Speed | 28 CPM |
| Copier Memory (Std./Max) | 512 MB / 512 MB |
| Print Resolution | 600 x 2,400 dpi (with smoothing)/256 Gradations |
| Scan Resolution | 600 dpi |
| Available Original/Copy Paper Size | Cassette: ST-R to LD (17-20 lb Bond), Bypass Tray: ST-R to LD (14-120 lb Index) |
| Paper Supply | Standard: Drawer (250 Sheets x 1) Stack Feed Bypass (50 Sheets) Max.: 300 |
| Available Copy Paper Weight | 17-20 lb Index |
| Multiple Copying | Up to 999 |
| Reproduction Ratio | 25% – 400% |
| Warm-up Time | 20 Sec. |
| First Copy Time | 7.1 Sec. |
| Copy Density Control | Text/Text-Photo/Photo |
| Power Supply Consumption | 115 Volts/12 Amps |
| Dimensions (W x D x H) | 15.3″ x 21.25″ x 20″ |
| Weight | 62.7 lbs |
| ADU | Standard |
| PRINT SPECIFICATIONS | |
| Print Speed | 28 PPM |
| Print Resolution | 600 x 2,400 dpi (with smoothing |
| Interface | 10/100 Base-T Network or USB 2.0, Optional 802.11 b/g/n Wireless |
| Operating System | Windows 7, 8, 8.1, 10, 2008R2, 2012, 2012 R2, (WHQL), CUPS PCL Unix, Linux 5.10.x, 6.5.x |
| Duplex Printing | Yes |
| Memory | 512 MB |
| PDL | PCL 6 Emulation |
| SCAN SPECIFICATIONS | |
| Scan Speed | 25 SPM (BW) at 600 dpi, 22 SPM (Color) @ 200 dpi, 13 SPM @ 300 dpi |
| Scan Resolution | Up to 600 dpi |
| Interface | 10/100 Base-T Network I/F, USB 2.0 |
| Scan Mode | Color & B&W |
| Memory | 128 MB |
| Scan Type | Scan-to-Email, Scan-to-File (SMB or FTP), Scan-to-FTP, Scan-to-TWAIN |
| Format | JPEG, TIFF-Multi/Single page, PDF-Multi/Single Page |
| FAX SPECIFICATIONS | |
| Fax | Standard |
| Modem Speed | Super G3, G3 |
| Compression Type | MH / MR / MMR / JBIG |
| One Touch Keys | 5 |
| Duplex Transmission | Yes (w/RADF) |
| Memory | 6.0 MB (Approx. 500 Pages) |
| Memory Transmission | Max. 256 Jobs, 220 destinations/job, 384 pages/file |
| Phone Book | 200 Stations |
| DIMENSIONS | |
| Base: 15.3″ x 21.25″ x 20″(W x D x H) | |

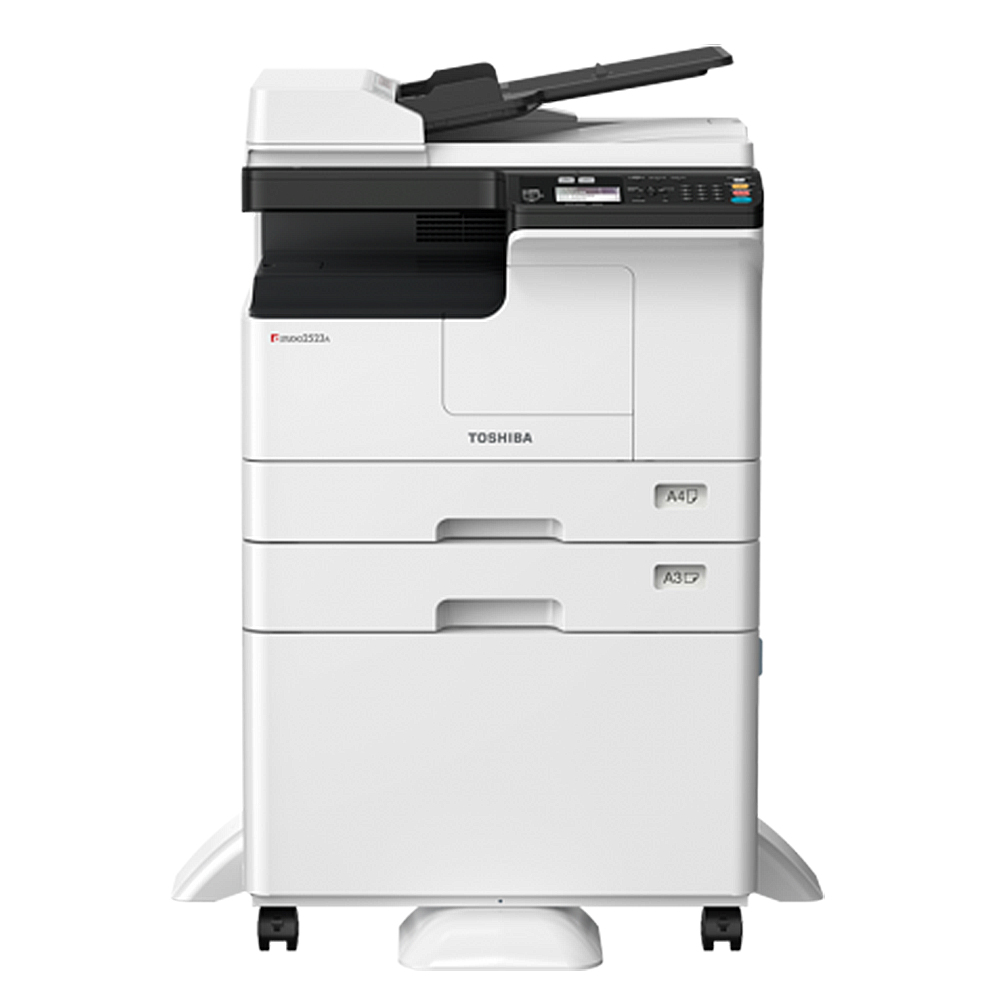

e-STUDIO2523AD
-
- 25 PPM, Mono
- 350-Sheet Paper Capacity
- ST-R to LD Paper Support
- Compact Design
- Copy, Print, & Scan
- Multi-Function Printer
Features and Specifications
Specification
| General | ||
| Dimensions | 575 x 540 x 402mm | |
| Weight | 25.5Kg | |
| Color | White | |
| Print Speed | 25ppm | |
| Warm-Up Time | Approx. 15 sec. | |
| Resolution | 600 x 600dpi, 2,400 x 600dpi (with smoothing) | |
| Duplex Printing | Yes | |
| Copy | ||
| First-Copy-Out Time | 6.4sec. (A4), 6.5sec (Leter) | |
| Resolution | 2,400 x 600dpi | |
| Scan | ||
| Scan Speed | 25spm (B & W) 24spm (Color) |
|
| Scan Technology | 600dpi | |
| Paper Handling | ||
| Paper Weight | 64 – 216 g/m2 | |
| Input Capacity | Input Paper Capacity (Standard): 350Sheets Input Paper Capacity (Maximum): 600Sheets |
|
| Connectivity | ||
| USB | Yes (Built-in) | |
| Refill Supplies | ||
| Toner | Supplies: T-2323C e-studio Toner | |
| Warranty | ||
| Warranty | 01 Year Service Warranty (No Parts Warranty) | |

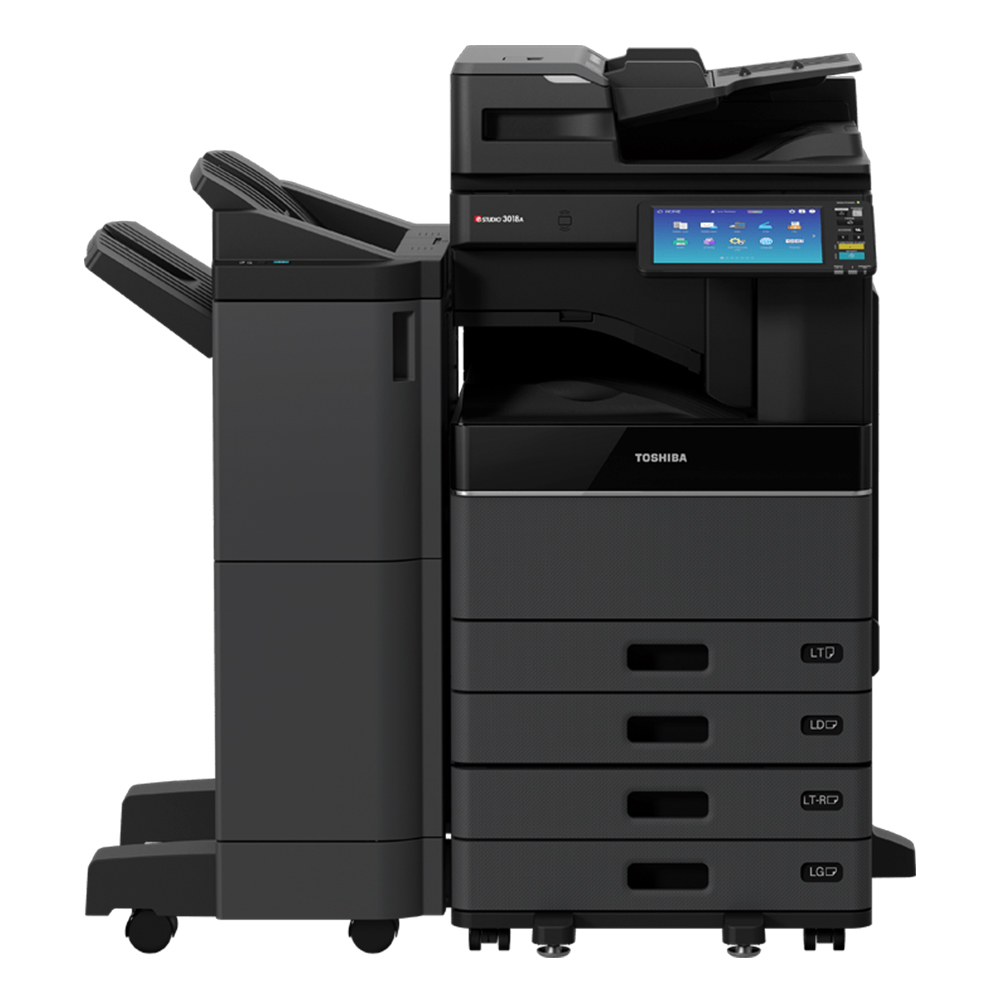

e-STUDIO3018A
-
- 30 PPM, Mono
- 1,200/3,200 Paper Capacity (Std./Max)
- Up to 3,600 x 1,200 DPI Print Resolution
- Mobile Device Friendly
- Exceptionally Secure
- Multi-Function Printer
Features and Specifications
e-STUDIO3018A FEATURES
| PRODUCTIVITY | |
| B&W print speeds of up to 30 PPM | |
| DSDF Scan: Up to 240 IPM Duplex, 120 IPM Simplex | |
| RADF Scan: Up to 73 IPM | |
| e-BRIDGE Next Open Platform support | |
| Indirect Electrostatic Photographic Method/OPC/Laser Printing/Heat Roller Fusing | |
| 11″ x 17″ 140 lb index automatic duplexing from the drawers | |
| 110 lb cover support through the bypass | |
| Blank page omission for copying and printing | |
| Outside Erase for copying books and 3D objects | |
| High compression PDF scanning (Slim PDF) | |
| Full featured new Toshiba multi-position and saddle stitch finishers | |
| Universal Print Driver | |
| 320GB Self-Encrypting Drive FIPS 140-2 Validated | |
| Solutions Ready | |
| IMAGE QUALITY | |
| Patented ASICs provide superb clarity and rich text renditions in all scanning, printing and copying jobs | |
| Up to 1,200 x 1,200 dpi print resolution | |
| Automatic Image quality control function | |
| OPERABILITY | |
| New Toshiba developed 9 inch tablet-style touch color control panel for easier operation | |
| Quick Copy & Scan Buttons | |
| Scan Preview | |
| New Control Panel Print Function button | |
| Dual-line Fax Option | |
| One Touch Templates | |
| Private Printing Feature | |
| SERVICEABILITY | |
| Easy Replaceable Unit Design | |
| Long Life consumables and duty cycles | |
e-STUDIO3018A SPECIFICATIONS
| MAIN SPECIFICATIONS | |
| Copy Process | Indirect Electrostatic Photographic Method/OPC/Laser Printing/Heat Roller Fusing |
| Display | 10.1” Color WVGA Touch Screen Tilting Display |
| Copy Speed | 30 PPM (LT) |
| First Copy Out | 4.3 Seconds |
| Warm-Up Time | Approx. 20 Seconds |
| Copy Resolution | 2,400 x 1200 dpi with Smoothing |
| Stack Feed Bypass | 3.9” x 5.8” to LD, Envelope |
| Multiple Copying | Up to 999 Copies |
| Paper Capacity | Standard 1,200 Sheets/Max. 3,200 Sheets |
| Original Feed | Optional 300-Sheet DSDF or 100-Sheet RADF |
| Scan Speed & Weights | DSDF Scan: Up to 240 IPM Duplex, 120 IPM Simplex (Monochrome or Color), Simplex: 9.3-110 lb Bond, Duplex: 9.3-110 lb Bond RADF Scan: Up to 73 IPM (Monochrome or Color): Simplex: 9.3-41.8 lb Bond, Duplex: 13.3-41.8 lb Bond |
| Max. Original Size | LD |
| Paper Feed Sizes | Drawer 1: 550 Sheets-ST-R to LD, Drawer 2: 550 Sheets-ST-R to LD, Stack Feed Bypass: 100 Sheets-3.9” x 5.8” to LD, Opt. 550-Sheet Paper Feed Pedestal-ST-R to LD, Opt. 550-Sheet Drawer for PFP-ST-R to LD, Opt. Envelope Cassette for PFP-Approx. 60 Envelopes/550 Sheets-ST-R to LG. Opt. 2,000-Sheet Tandem LCF (Pedestal Type)-LT Only |
| Paper Weights | Standard: 550 Sheets x 2-16 lb Bond-140 lb Index, Stack Feed Bypass: 100 Sheets-14 lb Bond-140 lb Index, Opt. 550-Sheet Paper Feed Pedestal-16 lb Bond-140 lb Index, Opt. 550-Sheet Drawer for PFP -16 lb Bond-140 lb Index, Opt. Envelope Cassette for PFP-16 lb Bond-140 lb Index, Opt. 2,000-Sheet Tandem LCF (Pedestal Type), 17-28 lb Bond |
| Duplex | Standard Automatic Duplex Unit (16 lb Bond-140 lb Index) |
| Reproduction Ratio | 25% to 400% |
| Max Duty Cycle | Max. 120K Month |
| Weight | Approx. 121 lb |
| Approx. Dimensions | 23” (W) x 23” (D) x 31” (H) |
| Toner Yield | K: 43.9K @ 5% |
| Power Source | 120 Volts, 50/60 Hz, 15 Amps |
| Power Consumption | Maximum 1.5kW (120V) |
| CPU | Intel Atom™1.33GHz (Dual-Core) |
| Memory | 4GB |
| Hard Disk Drive | 320GB Self-Encrypting Drive FIPS 140-2 Validated |
| E-BRIDGE NEXT PRINT SPECIFICATIONS | |
| PDL | PCL5e, PCL5c, PCL6 (PCL XL), PS3, PDF, XPS, JPEG |
| Print Speed | 30 Pages Per Minute (LT) |
| Print Resolution | 600 x 600 dpi (1 bit) or 2,400 x 600 dpi (with Smoothing), 1,200 x 1,200 dpi (2 bit) or 3,600 x 1,200 dpi (with Smoothing) PS3 Only |
| Operating Systems | Windows® Vista, Windows Server® 2008/R2, Windows® 7, 8, 8.1, 10, Windows Server® 2012/R2, Macintosh® (Mac OS × 10.4, 10.5, 10.6, 10.7, 10.8, 10.9, 10.10, 10,11), Unix®, Linux® |
| Network Protocols | TCP/IP (IPv4, IPv6), NetBIOS over TCP/IP, IPX/SPX® for Novell® Environments, EtherTalk® for Macintosh Environments |
| Printing Protocols | SMB, LPR/LPD, IPP (Ver.1.1) w/Authentication, AppleTalk PAP or EtherTalkTM, Port 9100 (bi-directional), NetWare P-SERVER LPD w/ iPrint, WS Print, FTP |
| Print Drivers | Windows® Vista SP2 (32-bit, 64-bit), Windows Server® 2008 SP2 (32-bit, 64-bit), Windows Server® 2008 R2 SP1 (64-bit), Windows® 7 SP1 (32-bit, 64-bit), Windows® 8/8.1 (32-bit, 64-bit), Windows Server® 2012/R2 (64-bit), Windows® 10 (32-bit, 64-bit), Mac OS® X 10.6.8, 10.7.4, 10.8, 10.9, 10.10 |
| Interface | RJ-45 Ethernet (10/100/1000 Base-T), USB 2.0 (High-speed), Optional 802.11b/g/n, Wireless LAN, Optional Bluetooth |
| Wireless Device | AirPrint®, Mopria®, e-BRIDGE Print & Capture Application on iOS and Android (Available via Apple App Store or Google Play) |
| Device Management | TopAccess, EFMS 6.2 (e-BRIDGE Fleet Management Software) |
| Account Control | Up to 10,000 users or 1,000 Departments Supports User Authentication (on Device), Login Name/Password (via Windows domain) or Login Name/Password (via LDAP Server) for Copy, Print, Scan, Fax, List, and User Function |
| Accessibility Features | Tilt Front Panel, Job Programs, Universal Grip for Paper Trays, Disable Screen Timeout and Audible Beep Message Alerts |
| Security Features | User Authentication, On-Board Data Scramble Function, SCEP, Disable e-Filing, Disable Copy, Disk Overwrite, IP Address Filtering (10 Sets), MAC Address Filtering (10 Sets), Network Service Control, Network Port Control, SMB Packet Signing, SSL (HTTP, IPP, LDAP, SMTP, POP, FTP, DPWS), IPsec (IKEv1, IKEv2), Security Mode Change, CC Certified (ISO/IEC15408 EAL3+)*, IEEE2600.1, IEEE802.1X, Digital Signature for Client Utilities, Password Policy, Password Lock, Password Expiration, Self Testing, Job Access Control, Log Access Control for Job Log, Security Stamp * Compliant with IEEE2600.1 in High security mode. |
| Environmental Stds | Energy Star (V2.0), EPEAT Gold, Blue Angel Mark (RAL UZ-171, MFD), Canadian ECP, Californian Proposition 65, Nordic Swan, RoHS |
| Certification | WHQL (Windows 7, 8, 8.1, 10, 2008 R2, 2012, 2012 R2), Novell, Citrix, SAP |
| SCAN SPECIFICATIONS | |
| Scan Speed | DSDF Scan: Up to 240 IPM Duplex, 120 IPM Simplex (Monochrome or Color), RADF Scan: Up to 73 IPM (Monochrome or Color) |
| Scan Modes | Standard: Full Color, Auto Color, Monochrome, Grayscale |
| Scan Resolution | 600 dpi, 400 dpi, 300 dpi, 200 dpi, 150 dpi, 100 dpi |
| File Formats | Monochrome: TIFF-Multi/Single Page, PDF-Multi/Single Page, Searchable PDF (Opt.), XPS-Multi/Single Page, DOCX (Opt.), XLSX (Opt.), PPTX (Opt.) Color/Grayscale: JPEG, TIFF-Multi/Single Page, PDF-Multi/Single Page, Slim PDF, Searchable PDF (Opt.), XPS-Multi/Single Page, DOCX (Opt.), XLSX (Opt.), PPTX (Opt.) |
| Image Compression | Color/Grayscale: JPEG (High, Middle, Low) |
| FAX SPECIFICATIONS | |
| Compatibility | Super G3 |
| Data Compression | MH/MR/MMR/JBIG |
| Transmission Speed | Approx. 3 Seconds Per Page |
| Fax Modem Speed | Up to 33.6 Kbps |
| Memory Transmission | 100 Jobs (with HDD), 2,000 Destinations Max. 400 Destinations /Job |
| Scan Speed | 0.7 Seconds Per Page, Maximum 73 IPM |
| E-FILING SPECIFICATIONS | |
| Operation Method | Color Touch Screen Control Panel or Client PC |
| Number of Boxes | 1 Public Box; 200 Private User Boxes |
| Capacity of Boxes | 100 Folder per Box; 400 Documents per Folder; 200 Pages per Documents |

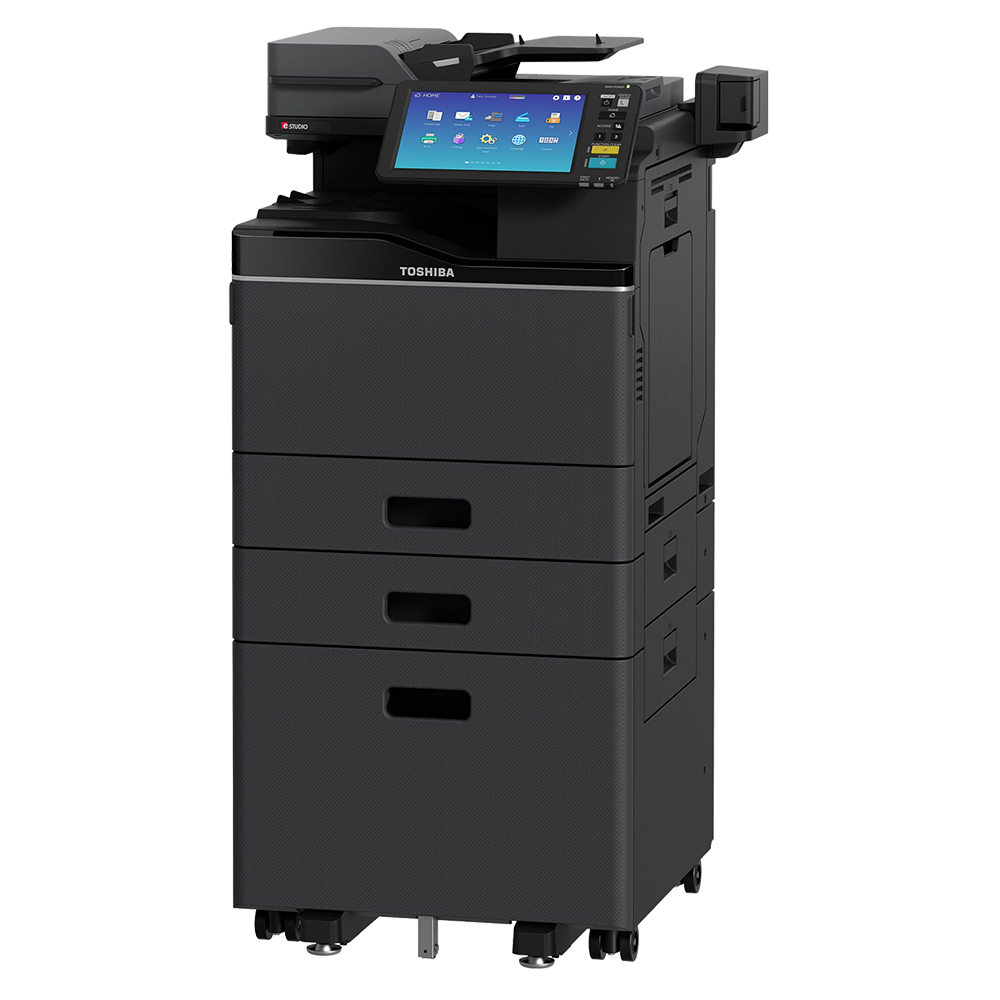

e-STUDIO3028A
-
- 30 PPM, Mono
- 1,200/3,200 Paper Capacity (Std./Max)
- Up to 3,600 x 1,200 DPI Print Resolution
- Mobile Device Friendly
- Exceptionally Secure
- Multi-Function Printer
Features and Specifications
SYSTEM & SECURITY
Device Management: TopAccess for remote administration and configuration
System Features: e-Filing document server for secure storage, Document distribution and Print-on-Demand (1 public box, 200 user boxes), 1,233,840 one-touch templates for storage of personalised settings or workflows, Scan/Fax Preview, RIP-while-Print, e-BRIDGE Open Platform*, Embedded Web Browser, Job Skip, PCL Barcode printing, e-BRIDGE Plus embedded apps
Accounting & Security: Role Based Access, LDAP support, 1,000 department & 10,000 user codes, Card Reader*, Private print, Standard data encryption with Security SSD, Data Overwrite function when optional HDD is chosen, IP and MAC address filter, Port filter, Support of SSL and IPsec* protocols, IEEE802.1x support, CC certified (ISO/IEC15408) with HCD-PP v1.0*, Scan to Secure PDF, Pull-printing*
Specifications: e-STUDIO3028A
GENERAL
| Print & Copy Speed: | 30 ppm (A4) 16 ppm (A3) |
|
Warm-up Time:
|
~ 14 seconds from low power mode |
|
Paper Size & Weight:
|
Cassettes: A5R-A3, 60-256 g/m² Bypass Single Feed: 100×148 mm-A3, 52-256 g/m², Multi-Feed: 100×148 mm-A3, 60-256g/m² Banner paper (up to 305 x 1,200 mm, 90-163g/m²) |
|
Paper Capacity:
|
Cassettes: 2x 550 sheets, Bypass: 1x 100 sheets Max.: 5,200 sheets |
|
Inner Output Tray:
|
550-sheet capacity
|
|
Automatic Duplex:
|
A5R-A3, 60-256 g/m²
|
|
Controller Type:
|
Toshiba e-BRIDGE Next
|
|
Control Panel:
|
26 cm (10.1″) Multi-Touch Colour Panel
|
|
Memory:
|
Security SSD 128 GB**, Standard: 4 GB RAM |
|
Interface:
|
10Base-T/100Base-TX/1000Base-T, High-Speed USB 2.0, WLAN* (IEEE802.11b/g/n), Bluetooth*, Wi-Fi Direct* |
|
Dimensions & Weight:
|
585 x 586 x 787 mm (W x D x H), ~ 55 kg |
| Initial Consumables: | Drums |
|
Resolution:
|
600 x 600 dpi, 1 bit equiv. 2,400 x 600 dpi (with smoothing), 1,200 x 1,200 dpi, 2bit (equiv. 3,600 x 1,200 dpi) with PostScript driver only |
|
Page Description Languages:
|
PCL5e, PCL5c, PCL6 (PCL XL), XPS, PDF, PS3 and JPEG |
|
Supported Systems:
|
Windows 11/10/8.1, Windows Server 2022/2019/2016/2012 R2/2012 (64bit), Mac OS X 10-12, Linux/Unix, Citrix, SAP, AS/400
|
|
Network Protocols:
|
TCP/IP (IPv4/IPv6), NetBios over TCP/IP |
|
Mobile Printing:
|
e-BRIDGE Print & Capture, Mopria® Print Service, AirPrint®
|
|
Print Functions:
|
Universal Printer Driver, Driver Templates, Driver plug-ins*, Print from USB, Hold print, Tandem printing, E-mail direct printing
|
SCAN
|
Resolution:
|
Maximum 600 x 600 dpi |
|
Scan Speed:
|
Reversing Automatic Document Feeder*: up to 73 ppm (300 dpi) in colour and monochrome Dual Scan Document Feeder*: up to 240 ppm (300 dpi) in colour and monochrome |
|
Scan Modes:
|
Auto-Colour (ACS), Colour, Greyscale, Monochrome |
|
File Formats:
|
JPEG, Multi/Single Page TIFF/XPS/PDF, Secure PDF, Slim PDF, PDF/A, PDF/A-2, Searchable PDF* (and other formats like DOCX, XLSX)* |
|
Scan Functions:
|
WS Scan, Scan to USB, Scan to E-Mail, Scan to File (SMB, FTP, FTPS, Local), Meta Scan*, OCR scan, Scan to Box (e-Filing), WIA, TWAIN |
COPY
|
Resolution:
|
Scan: 600 x 600 dpi Print: 600 x 600 dpi, 1 bit, equiv. 2,400 x 600 dpi (with smoothing) |
|
First Print Output Time:
|
~ 4.3 seconds |
|
Zoom:
|
Platen*: 25-400%, RADF*/DSDF*: 25-200% |
|
Copy Modes:
|
Text, Text/Photo, Photo, Custom |
|
Copy Functions:
|
Electronic Sort, Rotate Sort, ID Card Copy, Edge Erase, 2-in-1 / 4-in-1 mode |
FAX*
|
Communication:
|
Super G3, G3 – (opt. 2nd line), Internet Fax T.37 |
|
Transmission Speed:
|
~ 3 seconds per page
|
|
Compression:
|
JBIG, MMR, MR, MH
|
|
Fax Memory:
|
1 GB Transmission/Reception
|
|
Network-Fax:
|
Driver for Windows 11/10/8.1, Windows Server 2022/2019/2016/Server 2012 R2/Server 2012 (64 bit)
|
|
Incoming Fax Routing:
|
To shared folders (SMB, FTP), E-Mail, e-Filing
|
e-STUDIO3518A
-
- 35 PPM, Mono
- 1,200/3,200 Paper Capacity (Std./Max)
- Up to 3,600 x 1,200 DPI Print Resolution
- Advanced Workflow Solutions
- 320 GB Self-Encrypting HDD
- Multi-Function Printer
Features and Specifications
FEATURES
| PRODUCTIVITY | |
| Color print speeds of up to 45 PPM, B&W- up to 45 PPM | |
| DSDF Scan: Up to 240 IPM Duplex, 120 IPM Simplex | |
| RADF Scan: Up to 73 IPM | |
| e-BRIDGE Next Open Platform support | |
| Indirect Electrostatic Photographic Method/OPC/Laser Printing/Heat Roller Fusing | |
| 11″ x 17″ 140 lb index automatic duplexing from the drawers | |
| 110 lb cover support through the bypass | |
| Blank page omission for copying and printing | |
| Outside Erase for copying books and 3D objects | |
| High compression PDF scanning (Slim PDF) | |
| Full featured new Toshiba multi-position and saddle stitch finishers | |
| Universal Print Driver | |
| 320GB Self-Encrypting Drive FIPS 140-2 Validated | |
| Solutions Ready | |
| IMAGE QUALITY | |
| Patented ASICs provide superb clarity and rich text renditions in all scanning, printing and copying jobs | |
| Up to 1,200 x 1,200 dpi print resolution | |
| Automatic Image quality control function | |
| OPERABILITY | |
| New Toshiba developed 9 inch tablet-style touch color control panel for easier operation | |
| Quick Copy & Scan Buttons | |
| Scan Preview | |
| New Control Panel Print Function button | |
| Dual-line Fax Option | |
| One Touch Templates | |
| Private Printing Feature | |
| SERVICEABILITY | |
| Easy Replaceable Unit Design | |
| Long Life consumables and duty cycles | |
e-STUDIO3518A SPECIFICATIONS
| MAIN SPECIFICATIONS | |
| Copy Process | Indirect Electrostatic Photographic Method/OPC/Laser Printing/Heat Roller Fusing |
| Display | 10.1” Color WVGA Touch Screen Tilting Display |
| Copy Speed | 35 PPM (LT) |
| First Copy Out | 3.6 Seconds |
| Warm-Up Time | Approx. 20 Seconds |
| Copy Resolution | 2,400 x 1200 dpi with Smoothing |
| Stack Feed Bypass | 3.9” x 5.8” to LD, Envelope |
| Multiple Copying | Up to 999 Copies |
| Paper Capacity | Standard 1,200 Sheets/Max. 3,200 Sheets |
| Original Feed | Optional 300-Sheet DSDF or 100-Sheet RADF |
| Scan Speed & Weights | DSDF Scan: Up to 240 IPM Duplex, 120 IPM Simplex (Monochrome or Color), Simplex: 9.3-110 lb Bond, Duplex: 9.3-110 lb Bond RADF Scan: Up to 73 IPM (Monochrome or Color): Simplex: 9.3-41.8 lb Bond, Duplex: 13.3-41.8 lb Bond |
| Max. Original Size | LD |
| Paper Feed Sizes | Drawer 1: 550 Sheets-ST-R to LD, Drawer 2: 550 Sheets-ST-R to LD, Stack Feed Bypass: 100 Sheets-3.9” x 5.8” to LD, Opt. 550-Sheet Paper Feed Pedestal-ST-R to LD, Opt. 550-Sheet Drawer for PFP-ST-R to LD, Opt. Envelope Cassette for PFP-Approx. 60 Envelopes/550 Sheets-ST-R to LG. Opt. 2,000-Sheet Tandem LCF (Pedestal Type)-LT Only |
| Paper Weights | Standard: 550 Sheets x 2-16 lb Bond-140 lb Index, Stack Feed Bypass: 100 Sheets-14 lb Bond-140 lb Index, Opt. 550-Sheet Paper Feed Pedestal-16 lb Bond-140 lb Index, Opt. 550-Sheet Drawer for PFP -16 lb Bond-140 lb Index, Opt. Envelope Cassette for PFP-16 lb Bond-140 lb Index, Opt. 2,000-Sheet Tandem LCF (Pedestal Type), 17-28 lb Bond |
| Duplex | Standard Automatic Duplex Unit (16 lb Bond-140 lb Index) |
| Reproduction Ratio | 25% to 400% |
| Max Duty Cycle | Max. 125K Month |
| Weight | Approx. 121 lb |
| Approx. Dimensions | 23” (W) x 23” (D) x 31” (H) |
| Toner Yield | K: 43.9K @ 5% |
| Power Source | 120 Volts, 50/60 Hz, 15 Amps |
| Power Consumption | Maximum 1.5kW (120V) |
| CPU | Intel Atom™ 1.33GHz (Dual-Core) |
| Memory | 4GB |
| Hard Disk Drive | 320GB Self-Encrypting Drive FIPS 140-2 Validated |
| E-BRIDGE NEXT PRINT SPECIFICATIONS | |
| PDL | PCL5e, PCL5c, PCL6 (PCL XL), PS3, PDF, XPS, JPEG |
| Print Speed | 35 Pages Per Minute (LT) |
| Print Resolution | 600 x 600 dpi (1 bit) or 2,400 x 600 dpi (with Smoothing), 1,200 x 1,200 dpi (2 bit) or 3,600 x 1,200 dpi (with Smoothing) PS3 Only |
| Operating Systems | Windows® Vista, Windows Server® 2008/R2, Windows® 7, 8, 8.1, 10, Windows Server® 2012/R2, Macintosh® (Mac OS × 10.4, 10.5, 10.6, 10.7, 10.8, 10.9, 10.10, 10,11), Unix®, Linux® |
| Network Protocols | TCP/IP (IPv4, IPv6), NetBIOS over TCP/IP, IPX/SPX® for Novell® Environments, EtherTalk® for Macintosh Environments |
| Printing Protocols | SMB, LPR/LPD, IPP (Ver.1.1) w/Authentication, AppleTalk PAP or EtherTalkTM, Port 9100 (bi-directional), NetWare P-SERVER LPD w/ iPrint, WS Print, FTP |
| Print Drivers | Windows® Vista SP2 (32-bit, 64-bit), Windows Server® 2008 SP2 (32-bit, 64-bit), Windows Server® 2008 R2 SP1 (64-bit), Windows® 7 SP1 (32-bit, 64-bit), Windows® 8/8.1 (32-bit, 64-bit), Windows Server® 2012/R2 (64-bit), Windows® 10 (32-bit, 64-bit), Mac OS® X 10.6.8, 10.7.4, 10.8, 10.9, 10.10 |
| Interface | RJ-45 Ethernet (10/100/1000 Base-T), USB 2.0 (High-speed), Optional 802.11b/g/n, Wireless LAN, Optional Bluetooth |
| Wireless Device | AirPrint®, Mopria®, e-BRIDGE Print & Capture Application on iOS and Android (Available via Apple App Store or Google Play) |
| Device Management | TopAccess, EFMS 6.2 (e-BRIDGE Fleet Management Software) |
| Account Control | Up to 10,000 users or 1,000 Departments Supports User Authentication (on Device), Login Name/Password (via Windows domain) or Login Name/Password (via LDAP Server) for Copy, Print, Scan, Fax, List, and User Function |
| Accessibility Features | Tilt Front Panel, Job Programs, Universal Grip for Paper Trays, Disable Screen Timeout and Audible Beep Message Alerts |
| Security Features | User Authentication, On-Board Data Scramble Function, SCEP, Disable e-Filing, Disable Copy, Disk Overwrite, IP Address Filtering (10 Sets), MAC Address Filtering (10 Sets), Network Service Control, Network Port Control, SMB Packet Signing, SSL (HTTP, IPP, LDAP, SMTP, POP, FTP, DPWS), IPsec (IKEv1, IKEv2), Security Mode Change, CC Certified (ISO/IEC15408 EAL3+)*, IEEE2600.1, IEEE802.1X, Digital Signature for Client Utilities, Password Policy, Password Lock, Password Expiration, Self Testing, Job Access Control, Log Access Control for Job Log, Security Stamp * Compliant with IEEE2600.1 in High security mode. |
| Environmental Stds | Energy Star (V2.0), EPEAT Gold, Blue Angel Mark (RAL UZ-171, MFD), Canadian ECP, Californian Proposition 65, Nordic Swan, RoHS |
| Certification | WHQL (Windows 7, 8, 8.1, 10, 2008 R2, 2012, 2012 R2), Novell, Citrix, SAP |
| SCAN SPECIFICATIONS | |
| Scan Speed | DSDF Scan: Up to 240 IPM Duplex, 120 IPM Simplex (Monochrome or Color), RADF Scan: Up to 73 IPM (Monochrome or Color) |
| Scan Modes | Standard: Full Color, Auto Color, Monochrome, Grayscale |
| Scan Resolution | 600 dpi, 400 dpi, 300 dpi, 200 dpi, 150 dpi, 100 dpi |
| File Formats | Monochrome: TIFF-Multi/Single Page, PDF-Multi/Single Page, Searchable PDF (Opt.), XPS-Multi/Single Page, DOCX (Opt.), XLSX (Opt.), PPTX (Opt.) Color/Grayscale: JPEG, TIFF-Multi/Single Page, PDF-Multi/Single Page, Slim PDF, Searchable PDF (Opt.), XPS-Multi/Single Page, DOCX (Opt.), XLSX (Opt.), PPTX (Opt.) |
| Image Compression | Color/Grayscale: JPEG (High, Middle, Low) |
| FAX SPECIFICATIONS | |
| Compatibility | Super G3 |
| Data Compression | MH/MR/MMR/JBIG |
| Transmission Speed | Approx. 3 Seconds Per Page |
| Fax Modem Speed | Up to 33.6 Kbps |
| Memory Transmission | 100 Jobs (with HDD), 2,000 Destinations Max. 400 Destinations /Job |
| Scan Speed | 0.7 Seconds Per Page, Maximum 73 IPM |
| E-FILING SPECIFICATIONS | |
| Operation Method | Color Touch Screen Control Panel or Client PC |
| Number of Boxes | 1 Public Box; 200 Private User Boxes |
| Capacity of Boxes | 100 Folder per Box; 400 Documents per Folder; 200 Pages per Documents |
e-STUDIO4518A
-
- 45 PPM, Mono
- 1,200/3,200 Paper Capacity (Std./Max)
- Up to 3,600 x 1,200 DPI Print Resolution
- Large 10.1″ Tablet-Style UI
- Advanced Finishing
- Multi-Function Printer
Features and Specifications
e-STUDIO4518A FEATURES
| PRODUCTIVITY | |
| B&W print speeds of up to 45 PPM | |
| DSDF Scan: Up to 240 IPM Duplex, 120 IPM Simplex | |
| RADF Scan: Up to 73 IPM | |
| e-BRIDGE Next Open Platform support | |
| Indirect Electrostatic Photographic Method/OPC/Laser Printing/Heat Roller Fusing | |
| 11″ x 17″ 140 lb index automatic duplexing from the drawers | |
| 110 lb cover support through the bypass | |
| Blank page omission for copying and printing | |
| Outside Erase for copying books and 3D objects | |
| High compression PDF scanning (Slim PDF) | |
| Full featured new Toshiba multi-position and saddle stitch finishers | |
| Universal Print Driver | |
| 320GB Self-Encrypting Drive FIPS 140-2 Validated | |
| Solutions Ready | |
| IMAGE QUALITY | |
| Patented ASICs provide superb clarity and rich text renditions in all scanning, printing and copying jobs | |
| Up to 1,200 x 1,200 dpi print resolution | |
| Automatic Image quality control function | |
| OPERABILITY | |
| New Toshiba developed 9 inch tablet-style touch color control panel for easier operation | |
| Quick Copy & Scan Buttons | |
| Scan Preview | |
| New Control Panel Print Function button | |
| Dual-line Fax Option | |
| One Touch Templates | |
| Private Printing Feature | |
| SERVICEABILITY | |
| Easy Replaceable Unit Design | |
| Long Life consumables and duty cycles | |
e-STUDIO4518A SPECIFICATIONS
| MAIN SPECIFICATIONS | |
| Copy Process | Indirect Electrostatic Photographic Method/OPC/Laser Printing/Heat Roller Fusing |
| Display | 10.1” Color WVGA Touch Screen Tilting Display |
| Copy Speed | 45 PPM (LT) |
| First Copy Out | 3.6 Seconds |
| Warm-Up Time | Approx. 20 Seconds |
| Copy Resolution | 2,400 x 1200 dpi with Smoothing |
| Stack Feed Bypass | 3.9” x 5.8” to LD, Envelope |
| Multiple Copying | Up to 999 Copies |
| Paper Capacity | Standard 1,200 Sheets/Max. 3,200 Sheets |
| Original Feed | Optional 300-Sheet DSDF or 100-Sheet RADF |
| Scan Speed & Weights | DSDF Scan: Up to 240 IPM Duplex, 120 IPM Simplex (Monochrome or Color), Simplex: 9.3-110 lb Bond, Duplex: 9.3-110 lb Bond RADF Scan: Up to 73 IPM (Monochrome or Color): Simplex: 9.3-41.8 lb Bond, Duplex: 13.3-41.8 lb Bond |
| Max. Original Size | LD |
| Paper Feed Sizes | Drawer 1: 550 Sheets-ST-R to LD, Drawer 2: 550 Sheets-ST-R to LD, Stack Feed Bypass: 100 Sheets-3.9” x 5.8” to LD, Opt. 550-Sheet Paper Feed Pedestal-ST-R to LD, Opt. 550-Sheet Drawer for PFP-ST-R to LD, Opt. Envelope Cassette for PFP-Approx. 60 Envelopes/550 Sheets-ST-R to LG. Opt. 2,000-Sheet Tandem LCF (Pedestal Type)-LT Only |
| Paper Weights | Standard: 550 Sheets x 2-16 lb Bond-140 lb Index, Stack Feed Bypass: 100 Sheets-14 lb Bond-140 lb Index, Opt. 550-Sheet Paper Feed Pedestal-16 lb Bond-140 lb Index, Opt. 550-Sheet Drawer for PFP -16 lb Bond-140 lb Index, Opt. Envelope Cassette for PFP-16 lb Bond-140 lb Index, Opt. 2,000-Sheet Tandem LCF (Pedestal Type), 17-28 lb Bond |
| Duplex | Standard Automatic Duplex Unit (16 lb Bond-140 lb Index) |
| Reproduction Ratio | 25% to 400% |
| Max Duty Cycle | Max. 150K Month |
| Weight | Approx. 121 lb |
| Approx. Dimensions | 23” (W) x 23” (D) x 31” (H) |
| Toner Yield | K: 43.9K @ 5% |
| Power Source | 120 Volts, 50/60 Hz, 15 Amps |
| Power Consumption | Maximum 1.5kW (120V) |
| CPU | Intel Atom™ 1.33GHz (Dual-Core) |
| Memory | 4GB |
| Hard Disk Drive | 320GB Self-Encrypting Drive FIPS 140-2 Validated |
| E-BRIDGE NEXT PRINT SPECIFICATIONS | |
| PDL | PCL5e, PCL5c, PCL6 (PCL XL), PS3, PDF, XPS, JPEG |
| Print Speed | 45 Pages Per Minute (LT) |
| Print Resolution | 600 x 600 dpi (1 bit) or 2,400 x 600 dpi (with Smoothing), 1,200 x 1,200 dpi (2 bit) or 3,600 x 1,200 dpi (with Smoothing) PS3 Only |
| Operating Systems | Windows® Vista, Windows Server® 2008/R2, Windows® 7, 8, 8.1, 10, Windows Server® 2012/R2, Macintosh® (Mac OS × 10.4, 10.5, 10.6, 10.7, 10.8, 10.9, 10.10, 10,11), Unix®, Linux® |
| Network Protocols | TCP/IP (IPv4, IPv6), NetBIOS over TCP/IP, IPX/SPX® for Novell® Environments, EtherTalk® for Macintosh Environments |
| Printing Protocols | SMB, LPR/LPD, IPP (Ver.1.1) w/Authentication, AppleTalk PAP or EtherTalkTM, Port 9100 (bi-directional), NetWare P-SERVER LPD w/ iPrint, WS Print, FTP |
| Print Drivers | Windows® Vista SP2 (32-bit, 64-bit), Windows Server® 2008 SP2 (32-bit, 64-bit), Windows Server® 2008 R2 SP1 (64-bit), Windows® 7 SP1 (32-bit, 64-bit), Windows® 8/8.1 (32-bit, 64-bit), Windows Server® 2012/R2 (64-bit), Windows® 10 (32-bit, 64-bit), Mac OS® X 10.6.8, 10.7.4, 10.8, 10.9, 10.10 |
| Interface | RJ-45 Ethernet (10/100/1000 Base-T), USB 2.0 (High-speed), Optional 802.11b/g/n, Wireless LAN, Optional Bluetooth |
| Wireless Device | AirPrint®, Mopria®, e-BRIDGE Print & Capture Application on iOS and Android (Available via Apple App Store or Google Play) |
| Device Management | TopAccess, EFMS 6.2 (e-BRIDGE Fleet Management Software) |
| Account Control | Up to 10,000 users or 1,000 Departments Supports User Authentication (on Device), Login Name/Password (via Windows domain) or Login Name/Password (via LDAP Server) for Copy, Print, Scan, Fax, List, and User Function |
| Accessibility Features | Tilt Front Panel, Job Programs, Universal Grip for Paper Trays, Disable Screen Timeout and Audible Beep Message Alerts |
| Security Features | User Authentication, On-Board Data Scramble Function, SCEP, Disable e-Filing, Disable Copy, Disk Overwrite, IP Address Filtering (10 Sets), MAC Address Filtering (10 Sets), Network Service Control, Network Port Control, SMB Packet Signing, SSL (HTTP, IPP, LDAP, SMTP, POP, FTP, DPWS), IPsec (IKEv1, IKEv2), Security Mode Change, CC Certified (ISO/IEC15408 EAL3+)*, IEEE2600.1, IEEE802.1X, Digital Signature for Client Utilities, Password Policy, Password Lock, Password Expiration, Self Testing, Job Access Control, Log Access Control for Job Log, Security Stamp * Compliant with IEEE2600.1 in High security mode. |
| Environmental Stds | Energy Star (V2.0), EPEAT Gold, Blue Angel Mark (RAL UZ-171, MFD), Canadian ECP, Californian Proposition 65, Nordic Swan, RoHS |
| Certification | WHQL (Windows 7, 8, 8.1, 10, 2008 R2, 2012, 2012 R2), Novell, Citrix, SAP |
| SCAN SPECIFICATIONS | |
| Scan Speed | DSDF Scan: Up to 240 IPM Duplex, 120 IPM Simplex (Monochrome or Color), RADF Scan: Up to 73 IPM (Monochrome or Color) |
| Scan Modes | Standard: Full Color, Auto Color, Monochrome, Grayscale |
| Scan Resolution | 600 dpi, 400 dpi, 300 dpi, 200 dpi, 150 dpi, 100 dpi |
| File Formats | Monochrome: TIFF-Multi/Single Page, PDF-Multi/Single Page, Searchable PDF (Opt.), XPS-Multi/Single Page, DOCX (Opt.), XLSX (Opt.), PPTX (Opt.) Color/Grayscale: JPEG, TIFF-Multi/Single Page, PDF-Multi/Single Page, Slim PDF, Searchable PDF (Opt.), XPS-Multi/Single Page, DOCX (Opt.), XLSX (Opt.), PPTX (Opt.) |
| Image Compression | Color/Grayscale: JPEG (High, Middle, Low) |
| FAX SPECIFICATIONS | |
| Compatibility | Super G3 |
| Data Compression | MH/MR/MMR/JBIG |
| Transmission Speed | Approx. 3 Seconds Per Page |
| Fax Modem Speed | Up to 33.6 Kbps |
| Memory Transmission | 100 Jobs (with HDD), 2,000 Destinations Max. 400 Destinations /Job |
| Scan Speed | 0.7 Seconds Per Page, Maximum 73 IPM |
| E-FILING SPECIFICATIONS | |
| Operation Method | Color Touch Screen Control Panel or Client PC |
| Number of Boxes | 1 Public Box; 200 Private User Boxes |
| Capacity of Boxes | 100 Folder per Box; 400 Documents per Folder; 200 Pages per Documents |
e-STUDIO5018A
-
- 50 PPM, Mono
- 1,200/3,200 Paper Capacity (Std./Max)
- Up to 3,600 x 1,200 DPI Print Resolution
- Customizable Workflow
- Exceptional Productivity
- Multi-Function Printer
Features and Specifications
e-STUDIO5018A FEATURES
| PRODUCTIVITY | |
| B&W print speeds of up to 50 PPM | |
| DSDF Scan: Up to 240 IPM Duplex, 120 IPM Simplex | |
| RADF Scan: Up to 73 IPM | |
| e-BRIDGE Next Open Platform support | |
| Indirect Electrostatic Photographic Method/OPC/Laser Printing/Heat Roller Fusing | |
| 11″ x 17″ 140 lb index automatic duplexing from the drawers | |
| 110 lb cover support through the bypass | |
| Blank page omission for copying and printing | |
| Outside Erase for copying books and 3D objects | |
| High compression PDF scanning (Slim PDF) | |
| Full featured new Toshiba multi-position and saddle stitch finishers | |
| Universal Print Driver | |
| 320GB Self-Encrypting Drive FIPS 140-2 Validated | |
| Solutions Ready | |
| IMAGE QUALITY | |
| Patented ASICs provide superb clarity and rich text renditions in all scanning, printing and copying jobs | |
| Up to 1,200 x 1,200 dpi print resolution | |
| Automatic Image quality control function | |
| OPERABILITY | |
| New Toshiba developed 9 inch tablet-style touch color control panel for easier operation | |
| Quick Copy & Scan Buttons | |
| Scan Preview | |
| New Control Panel Print Function button | |
| Dual-line Fax Option | |
| One Touch Templates | |
| Private Printing Feature | |
| SERVICEABILITY | |
| Easy Replaceable Unit Design | |
| Long Life consumables and duty cycles | |
e-STUDIO5018A SPECIFICATIONS
| MAIN SPECIFICATIONS | |
| Copy Process | Indirect Electrostatic Photographic Method/OPC/Laser Printing/Heat Roller Fusing |
| Display | 10.1” Color WVGA Touch Screen Tilting Display |
| Copy Speed | 50 PPM (LT) |
| First Copy Out | 3.6 Seconds |
| Warm-Up Time | Approx. 20 Seconds |
| Copy Resolution | 2,400 x 1200 dpi with Smoothing |
| Stack Feed Bypass | 3.9” x 5.8” to LD, Envelope |
| Multiple Copying | Up to 999 Copies |
| Paper Capacity | Standard 1,200 Sheets/Max. 3,200 Sheets |
| Original Feed | Optional 300-Sheet DSDF or 100-Sheet RADF |
| Scan Speed & Weights | DSDF Scan: Up to 240 IPM Duplex, 120 IPM Simplex (Monochrome or Color), Simplex: 9.3-110 lb Bond, Duplex: 9.3-110 lb Bond RADF Scan: Up to 73 IPM (Monochrome or Color): Simplex: 9.3-41.8 lb Bond, Duplex: 13.3-41.8 lb Bond |
| Max. Original Size | LD |
| Paper Feed Sizes | Drawer 1: 550 Sheets-ST-R to LD, Drawer 2: 550 Sheets-ST-R to LD, Stack Feed Bypass: 100 Sheets-3.9” x 5.8” to LD, Opt. 550-Sheet Paper Feed Pedestal-ST-R to LD, Opt. 550-Sheet Drawer for PFP-ST-R to LD, Opt. Envelope Cassette for PFP-Approx. 60 Envelopes/550 Sheets-ST-R to LG. Opt. 2,000-Sheet Tandem LCF (Pedestal Type)-LT Only |
| Paper Weights | Standard: 550 Sheets x 2-16 lb Bond-140 lb Index, Stack Feed Bypass: 100 Sheets-14 lb Bond-140 lb Index, Opt. 550-Sheet Paper Feed Pedestal-16 lb Bond-140 lb Index, Opt. 550-Sheet Drawer for PFP -16 lb Bond-140 lb Index, Opt. Envelope Cassette for PFP-16 lb Bond-140 lb Index, Opt. 2,000-Sheet Tandem LCF (Pedestal Type), 17-28 lb Bond |
| Duplex | Standard Automatic Duplex Unit (16 lb Bond-140 lb Index) |
| Reproduction Ratio | 25% to 400% |
| Max Duty Cycle | Max. 150K Month |
| Weight | Approx. 121 lb |
| Approx. Dimensions | 23” (W) x 23” (D) x 31” (H) |
| Toner Yield | K: 43.9K @ 5% |
| Power Source | 120 Volts, 50/60 Hz, 15 Amps |
| Power Consumption | Maximum 1.5kW (120V) |
| CPU | Intel Atom™1.33GHz (Dual-Core) |
| Memory | 4GB |
| Hard Disk Drive | 320GB Self-Encrypting Drive FIPS 140-2 Validated |
| E-BRIDGE NEXT PRINT SPECIFICATIONS | |
| PDL | PCL5e, PCL5c, PCL6 (PCL XL), PS3, PDF, XPS, JPEG |
| Print Speed | 50 Pages Per Minute (LT) |
| Print Resolution | 600 x 600 dpi (1 bit) or 2,400 x 600 dpi (with Smoothing), 1,200 x 1,200 dpi (2 bit) or 3,600 x 1,200 dpi (with Smoothing) PS3 Only |
| Operating Systems | Windows® Vista, Windows Server® 2008/R2, Windows® 7, 8, 8.1, 10, Windows Server® 2012/R2, Macintosh® (Mac OS × 10.4, 10.5, 10.6, 10.7, 10.8, 10.9, 10.10, 10,11), Unix®, Linux® |
| Network Protocols | TCP/IP (IPv4, IPv6), NetBIOS over TCP/IP, IPX/SPX® for Novell® Environments, EtherTalk® for Macintosh Environments |
| Printing Protocols | SMB, LPR/LPD, IPP (Ver.1.1) w/Authentication, AppleTalk PAP or EtherTalkTM, Port 9100 (bi-directional), NetWare P-SERVER LPD w/ iPrint, WS Print, FTP |
| Print Drivers | Windows® Vista SP2 (32-bit, 64-bit), Windows Server® 2008 SP2 (32-bit, 64-bit), Windows Server® 2008 R2 SP1 (64-bit), Windows® 7 SP1 (32-bit, 64-bit), Windows® 8/8.1 (32-bit, 64-bit), Windows Server® 2012/R2 (64-bit), Windows® 10 (32-bit, 64-bit), Mac OS® X 10.6.8, 10.7.4, 10.8, 10.9, 10.10 |
| Interface | RJ-45 Ethernet (10/100/1000 Base-T), USB 2.0 (High-speed), Optional 802.11b/g/n, Wireless LAN, Optional Bluetooth |
| Wireless Device | AirPrint®, Mopria®, e-BRIDGE Print & Capture Application on iOS and Android (Available via Apple App Store or Google Play) |
| Device Management | TopAccess, EFMS 6.2 (e-BRIDGE Fleet Management Software) |
| Account Control | Up to 10,000 users or 1,000 Departments Supports User Authentication (on Device), Login Name/Password (via Windows domain) or Login Name/Password (via LDAP Server) for Copy, Print, Scan, Fax, List, and User Function |
| Accessibility Features | Tilt Front Panel, Job Programs, Universal Grip for Paper Trays, Disable Screen Timeout and Audible Beep Message Alerts |
| Security Features | User Authentication, On-Board Data Scramble Function, SCEP, Disable e-Filing, Disable Copy, Disk Overwrite, IP Address Filtering (10 Sets), MAC Address Filtering (10 Sets), Network Service Control, Network Port Control, SMB Packet Signing, SSL (HTTP, IPP, LDAP, SMTP, POP, FTP, DPWS), IPsec (IKEv1, IKEv2), Security Mode Change, CC Certified (ISO/IEC15408 EAL3+)*, IEEE2600.1, IEEE802.1X, Digital Signature for Client Utilities, Password Policy, Password Lock, Password Expiration, Self Testing, Job Access Control, Log Access Control for Job Log, Security Stamp * Compliant with IEEE2600.1 in High security mode. |
| Environmental Stds | Energy Star (V2.0), EPEAT Gold, Blue Angel Mark (RAL UZ-171, MFD), Canadian ECP, Californian Proposition 65, Nordic Swan, RoHS |
| Certification | WHQL (Windows 7, 8, 8.1, 10, 2008 R2, 2012, 2012 R2), Novell, Citrix, SAP |
| SCAN SPECIFICATIONS | |
| Scan Speed | DSDF Scan: Up to 240 IPM Duplex, 120 IPM Simplex (Monochrome or Color), RADF Scan: Up to 73 IPM (Monochrome or Color) |
| Scan Modes | Standard: Full Color, Auto Color, Monochrome, Grayscale |
| Scan Resolution | 600 dpi, 400 dpi, 300 dpi, 200 dpi, 150 dpi, 100 dpi |
| File Formats | Monochrome: TIFF-Multi/Single Page, PDF-Multi/Single Page, Searchable PDF (Opt.), XPS-Multi/Single Page, DOCX (Opt.), XLSX (Opt.), PPTX (Opt.) Color/Grayscale: JPEG, TIFF-Multi/Single Page, PDF-Multi/Single Page, Slim PDF, Searchable PDF (Opt.), XPS-Multi/Single Page, DOCX (Opt.), XLSX (Opt.), PPTX (Opt.) |
| Image Compression | Color/Grayscale: JPEG (High, Middle, Low) |
| FAX SPECIFICATIONS | |
| Compatibility | Super G3 |
| Data Compression | MH/MR/MMR/JBIG |
| Transmission Speed | Approx. 3 Seconds Per Page |
| Fax Modem Speed | Up to 33.6 Kbps |
| Memory Transmission | 100 Jobs (with HDD), 2,000 Destinations Max. 400 Destinations /Job |
| Scan Speed | 0.7 Seconds Per Page, Maximum 73 IPM |
| E-FILING SPECIFICATIONS | |
| Operation Method | Color Touch Screen Control Panel or Client PC |
| Number of Boxes | 1 Public Box; 200 Private User Boxes |
| Capacity of Boxes | 100 Folder per Box; 400 Documents per Folder; 200 Pages per Documents |
e-STUDIO5518A
-
- 55 PPM, Mono
- 3,520/6,020 Paper Capacity (Std./Max)
- 240 Duplex Scans Per Minute
- Proven Reliability
- Exceptional Productivity
- Multi-Function Printer
Features and Specifications
e-STUDIO5518A FEATURES
| PRODUCTIVITY | |
| Print speed: up to 55 PPM | |
| DSDF Scan: Up to 240 IPM Duplex, 120 IPM Simplex | |
| 12″ x 18″ 140 lb index automatic duplexing from the drawers | |
| 13″ x 19″ 110 lb cover support through the bypass | |
| Universal Print Driver | |
| 320GB Self-Encrypting Drive | |
| Solutions Ready | |
| IMAGE QUALITY | |
| Patented ASICs provide superb clarity and rich text renditions in all scanning, printing and copying jobs | |
| Up to 3600 x 1200 dpi print resolution | |
| Automatic Image quality control function | |
| OPERABILITY | |
| New Toshiba developed 10.1 inch tablet-style touch color control panel for easier operation | |
| Scan Preview | |
| Dual-line Fax Option | |
| One Touch Templates | |
| SERVICEABILITY | |
| Easy Replaceable Unit Design | |
| Long Life consumables and duty cycles | |
e-STUDIO5518A SPECIFICATIONS
| MAIN SPECIFICATIONS | |
| Copy Process | Indirect Electrostatic Photographic Method/OPC/Laser Printing/ Heat Roller Fusing |
| Display | 10.1” Color WVGA Touch Screen Tilting Display |
| Copy Speed | 55 PPM (LT) |
| First Copy Out | 5.2 |
| Warm-Up Time | Approx. 24 Seconds |
| Copy Resolution | 2400 x 600 dpi |
| Stack Feed Bypass | 3.9” x 5.8” to 13” x 19”, 12” x 47” Banner, Envelope |
| Multiple Copying | Up to 9,999 Copies |
| Paper Capacity | Standard 3,520 Sheets/Max. 6,020 Sheets (Tandem Drawer) |
| Original Feed | Standard 300-Sheet DSDF |
| Scan Speed & Weights | DSDF Scan: Up to 240 IPM Duplex, 120 IPM Simplex (Monochrome or Color), Simplex: 9.3-110 lb Index, Duplex: 9.3-110 lb Index |
| Max. Original Size | LD |
| Paper Feed Sizes | Drawers: 540 Sheets-ST-R to 12” x 18” Integral Tandem LCF 1,160 x 2 LT-Only Stack Feed Bypass: 120 Sheets-3.9” x 5.8” to 13” x 19”, 12” x 47” Banner 2,500-Sheet Ext. LCF LT-Only |
| Paper Weights | Tandem LCF 1,160 Sheets x 2-16 lb Bond-140 lb Index Plus 540 Sheets x 2-16 lb Bond-140 lb Index Stack Feed Bypass: 120 Sheets-16 lb Bond-110 lb Cover Opt. 2,500-Sheet Ext. LCF LT-Only -16 lb Bond-140 lb Index |
| Duplex | Standard Automatic Duplex Unit (16 lb Bond-140 lb Index) |
| Reproduction Ratio | 25% to 400% |
| Max Duty Cycle | Max. 520K Month |
| Weight | Approx. 430 lb |
| Approx. Dimensions | 37.6” (W) x 28.9” (D) x 48.3” (H) |
| Toner Yield | 106,600 @ 5% |
| Power Source | 120 Volts, 50/60 Hz, 16 Amps |
| Power Consumption | Maximum 2.0kW (120V) |
| CPU | Intel Atom™ 1.33 GHz (Dual-Core) |
| Memory | 4GB |
| Hard Disk Drive | 320GB Self-Encrypting Drive |
| E-BRIDGE NEXT PRINT SPECIFICATIONS | |
| PDL | PCL5e, PCL5c, PCL6 (PCL XL), PS3, PDF, XPS, JPEG |
| Print Speed | Monochrome: 65 PPM (LT) |
| Print Resolution | 600 x 600 dpi, 2,400 x 600 dpi (With Smoothing), 1,200 x 1,200 dpi (2-bit) or 3,600 x 1,200 dpi (With Smoothing) PS Only |
| Operating Systems | Windows® Vista, Windows Server® 2008/R2, Windows® 7, 8, 8.1, 10, Windows Server® 2012/R2, Macintosh® (Mac OS X 10.6, 10.7, 10.8, 10.9, 10.10, 10.11), Unix®, Linux® |
| Network Protocols | TCP/IP (IPv4, IPv6), NetBIOS over TCP/IP, IPX/SPX® for Novell® Environments, EtherTalk® for Macintosh Environments |
| Printing Protocols | SMB, LPR/LPD, IPP (Ver.1.1) w/Authentication, AppleTalk PAP or EtherTalk™, Port 9100 (bi-directional), NetWare P-SERVER LPD w/ iPrint, WS Print, FTP |
| Print Drivers | Windows® Vista SP2 (32-bit, 64-bit), Windows Server® 2008 SP2 (32-bit, 64- bit), Windows Server® 2008 R2 SP1 (64-bit), Windows® 7 SP1 (32-bit, 64-bit), Windows® 8/8.1 (32-bit, 64-bit), Windows Server® 2012/R2 (64-bit), Windows® 10 (32-bit, 64-bit), Mac OS® X 10.6.8, 10.7.4, 10.8, 10.9, 10.10, 10.11 |
| Interface | RJ-45 Ethernet (10/100/1000 Base-T), USB 2.0 (High-speed) Optional 802.11b/g/n, Wireless LAN, Optional Bluetooth |
| Wireless Device | AirPrint™, Mopria®, e-BRIDGE Print & Capture Application on iOS and Android (Available via Apple App Store or Google Play) |
| Device Management | TopAccess, EFMS 6.2 (e-BRIDGE Fleet Management Software) |
| Account Control | Up to 10,000 users or 1,000 Departments Supports User Authentication (on Device), Login Name/Password (via Windows domain) or Login Name/ Password (via LDAP Server) for Copy, Print, Scan, Fax, List, and User Function |
| Accessibility Features | Tilt Front Panel, Job Programs, Universal Grip for Paper Trays, Disable Screen Timeout and Audible Beep Message Alerts |
| Security Features | User Authentication, On-Board Data Scramble Function, SCEP, Disable e-Filing, Disable Copy, Disk Overwrite, IP Address Filtering (10 Sets), MAC Address Filtering (10 Sets), Network Service Control, Network Port Control, SMB Packet Signing, SSL (HTTP, IPP, LDAP, SMTP, POP, FTP, DPWS), IPsec (IKEv1, IKEv2), Security Mode Change, CC Certified (ISO/IEC15408 EAL3+)*, IEEE2600.1, IEEE802.1X, Digital Signature for Client Utilities, Password Policy, Password Lock, Password Expiration, Self Testing, Job Access Control, Log Access Control for Job Log, Security Stamp *Compliant with IEEE2600.1 in High Security Mode. |
| Environmental Stds | Energy Star (V2.0), EPEAT Gold, RoHS |
| Certification | WHQL (Windows 7, 8, 8.1, 10, 2008 R2, 2012, 2012 R2), Novell, Citrix, SAP |
| SCAN SPECIFICATIONS | |
| Scan Speed | DSDF Scan: Up to 240 IPM Duplex, 120 IPM Simplex (Monochrome or Color) |
| Scan Modes | Standard: Full Color, Auto Color, Monochrome, Grayscale |
| Scan Resolution | 600 dpi, 400 dpi, 300 dpi, 200 dpi, 150 dpi, 100 dpi |
| File Formats | Monochrome: TIFF-Multi/Single Page, PDF-Multi/Single Page, Searchable PDF (Opt.), XPS-Multi/Single Page, DOCX (Opt.), XLSX (Opt.), PPTX (Opt.) Color/Grayscale: JPEG, TIFF-Multi/Single Page, PDF-Multi/Single Page, Slim PDF, Searchable PDF (Opt.), XPS-Multi/Single Page, DOCX (Opt.), XLSX (Opt.), PPTX (Opt.) |
| Image Compression | Color/Grayscale: JPEG (High, Middle, Low) |
| FAX SPECIFICATIONS | |
| Compatibility | Super G3 |
| Data Compression | MH/MR/MMR/JBIG |
| Transmission Speed | Approx. 3 Seconds Per Page |
| Fax Modem Speed | Up to 33.6 Kbps |
| Memory Transmission | 100 Jobs (with HDD), 2,000 Destinations Max. 400 Destinations /Job |
| Scan Speed | 0.7 Seconds Per Page, Maximum 73 IPM |
| E-FILING SPECIFICATIONS | |
| Operation Method | Color Touch Screen Control Panel or Client PC |
| Number of Boxes | 1 Public Box; 200 Private User Boxes |
| Capacity of Boxes | 100 Folders Per Box, 400 Documents Per Folder/Box, 200 Pages Per Document |
e-STUDIO6518A
-
- 65 PPM, Mono
- 3,520/6,020 Paper Capacity (Std./Max)
- 240 Duplex Scans Per Minute
- 320 GB Self-Encrypting HDD
- Environmentally Friendly
- Multi-Function Printer
Features and Specifications
e-STUDIO6518A FEATURES
| PRODUCTIVITY | |
| Print speed of up to 65 PPM | |
| DSDF Scan: Up to 240 IPM Duplex, 120 IPM Simplex | |
| 12″ x 18″ 140 lb index automatic duplexing from the drawers | |
| 13″ x 19″ 110 lb cover support through the bypass | |
| Universal Print Driver | |
| 320GB Self-Encrypting Drive | |
| Solutions Ready | |
| IMAGE QUALITY | |
| Patented ASICs provide superb clarity and rich text renditions in all scanning, printing and copying jobs | |
| Up to 3,600 x 1,200 dpi print resolution | |
| Automatic Image quality control function | |
| OPERABILITY | |
| New Toshiba developed 10.1 inch tablet-style touch color control panel for easier operation | |
| Scan Preview | |
| Dual-line Fax Option | |
| One Touch Templates | |
| SERVICEABILITY | |
| Easy Replaceable Unit Design | |
| Long Life consumables and duty cycles | |
e-STUDIO6518A SPECIFICATIONS
| MAIN SPECIFICATIONS | |
| Copy Process | Indirect Electrostatic Photographic Method/OPC/Laser Printing/ Heat Roller Fusing |
| Display | 10.1” Color WVGA Touch Screen Tilting Display |
| Copy Speed | 65 PPM (LT) |
| First Copy Out | 5.2 |
| Warm-Up Time | Approx. 24 Seconds |
| Copy Resolution | 2400 x 600 dpi |
| Stack Feed Bypass | 3.9” x 5.8” to 13” x 19”, 12” x 47” Banner, Envelope |
| Multiple Copying | Up to 9,999 Copies |
| Paper Capacity | Standard 3,520 Sheets/Max. 6,020 Sheets (Tandem Drawer) |
| Original Feed | Standard 300-Sheet DSDF |
| Scan Speed & Weights | DSDF Scan: Up to 240 IPM Duplex, 120 IPM Simplex (Monochrome or Color), Simplex: 9.3-110 lb Index, Duplex: 9.3-110 lb Index |
| Max. Original Size | LD |
| Paper Feed Sizes | Drawers: 540 Sheets-ST-R to 12” x 18” Integral Tandem LCF 1,160 x 2 LT-Only Stack Feed Bypass: 120 Sheets-3.9” x 5.8” to 13” x 19”, 12” x 47” Banner 2,500-Sheet Ext. LCF LT-Only |
| Paper Weights | Tandem LCF 1,160 Sheets x 2-16 lb Bond-140 lb Index Plus 540 Sheets x 2-16 lb Bond-140 lb Index Stack Feed Bypass: 120 Sheets-16 lb Bond-110 lb Cover Opt. 2,500-Sheet Ext. LCF LT-Only -16 lb Bond-140 lb Index |
| Duplex | Standard Automatic Duplex Unit (16 lb Bond-140 lb Index) |
| Reproduction Ratio | 25% to 400% |
| Max Duty Cycle | Max. 590K Month |
| Weight | Approx. 430 lb |
| Approx. Dimensions | 37.6” (W) x 28.9” (D) x 48.3” (H) |
| Toner Yield | 106,600 @ 5% |
| Power Source | 120 Volts, 50/60 Hz, 16 Amps |
| Power Consumption | Maximum 2.0kW (120V) |
| CPU | Intel Atom™ 1.33 GHz (Dual-Core) |
| Memory | 4GB |
| Hard Disk Drive | 320GB Self-Encrypting Drive |
| E-BRIDGE NEXT PRINT SPECIFICATIONS | |
| PDL | PCL5e, PCL5c, PCL6 (PCL XL), PS3, PDF, XPS, JPEG |
| Print Speed | 65 PPM (LT) |
| Print Resolution | 600 x 600 dpi, 2,400 x 600 dpi (With Smoothing), 1,200 x 1,200 dpi (2-bit) or 3,600 x 1,200 dpi (With Smoothing) PS Only |
| Operating Systems | Windows® Vista, Windows Server® 2008/R2, Windows® 7, 8, 8.1, 10, Windows Server® 2012/R2, Macintosh® (Mac OS X 10.6, 10.7, 10.8, 10.9, 10.10, 10.11), Unix®, Linux® |
| Network Protocols | TCP/IP (IPv4, IPv6), NetBIOS over TCP/IP, IPX/SPX® for Novell® Environments, EtherTalk® for Macintosh Environments |
| Printing Protocols | SMB, LPR/LPD, IPP (Ver.1.1) w/Authentication, AppleTalk PAP or EtherTalk™, Port 9100 (bi-directional), NetWare P-SERVER LPD w/ iPrint, WS Print, FTP |
| Print Drivers | Windows® Vista SP2 (32-bit, 64-bit), Windows Server® 2008 SP2 (32-bit, 64- bit), Windows Server® 2008 R2 SP1 (64-bit), Windows® 7 SP1 (32-bit, 64-bit), Windows® 8/8.1 (32-bit, 64-bit), Windows Server® 2012/R2 (64-bit), Windows® 10 (32-bit, 64-bit), Mac OS® X 10.6.8, 10.7.4, 10.8, 10.9, 10.10, 10.11 |
| Interface | RJ-45 Ethernet (10/100/1000 Base-T), USB 2.0 (High-speed) Optional 802.11b/g/n, Wireless LAN, Optional Bluetooth |
| Wireless Device | AirPrint™, Mopria®, e-BRIDGE Print & Capture Application on iOS and Android (Available via Apple App Store or Google Play) |
| Device Management | TopAccess, EFMS 6.2 (e-BRIDGE Fleet Management Software) |
| Account Control | Up to 10,000 users or 1,000 Departments Supports User Authentication (on Device), Login Name/Password (via Windows domain) or Login Name/ Password (via LDAP Server) for Copy, Print, Scan, Fax, List, and User Function |
| Accessibility Features | Tilt Front Panel, Job Programs, Universal Grip for Paper Trays, Disable Screen Timeout and Audible Beep Message Alerts |
| Security Features | User Authentication, On-Board Data Scramble Function, SCEP, Disable e-Filing, Disable Copy, Disk Overwrite, IP Address Filtering (10 Sets), MAC Address Filtering (10 Sets), Network Service Control, Network Port Control, SMB Packet Signing, SSL (HTTP, IPP, LDAP, SMTP, POP, FTP, DPWS), IPsec (IKEv1, IKEv2), Security Mode Change, CC Certified (ISO/IEC15408 EAL3+)*, IEEE2600.1, IEEE802.1X, Digital Signature for Client Utilities, Password Policy, Password Lock, Password Expiration, Self Testing, Job Access Control, Log Access Control for Job Log, Security Stamp *Compliant with IEEE2600.1 in High Security Mode. |
| Environmental Stds | Energy Star (V2.0), EPEAT Gold, RoHS |
| Certification | WHQL (Windows 7, 8, 8.1, 10, 2008 R2, 2012, 2012 R2), Novell, Citrix, SAP |
| SCAN SPECIFICATIONS | |
| Scan Speed | DSDF Scan: Up to 240 IPM Duplex, 120 IPM Simplex (Monochrome or Color |
| Scan Modes | Standard: Full Color, Auto Color, Monochrome, Grayscale |
| Scan Resolution | 600 dpi, 400 dpi, 300 dpi, 200 dpi, 150 dpi, 100 dpi |
| File Formats | Monochrome: TIFF-Multi/Single Page, PDF-Multi/Single Page, Searchable PDF (Opt.), XPS-Multi/Single Page, DOCX (Opt.), XLSX (Opt.), PPTX (Opt.) Color/Grayscale: JPEG, TIFF-Multi/Single Page, PDF-Multi/Single Page, Slim PDF, Searchable PDF (Opt.), XPS-Multi/Single Page, DOCX (Opt.), XLSX (Opt.), PPTX (Opt.) |
| Image Compression | Color/Grayscale: JPEG (High, Middle, Low) |
| FAX SPECIFICATIONS | |
| Compatibility | Super G3 |
| Data Compression | MH/MR/MMR/JBIG |
| Transmission Speed | Approx. 3 Seconds Per Page |
| Fax Modem Speed | Up to 33.6 Kbps |
| Memory Transmission | 100 Jobs (with HDD), 2,000 Destinations Max. 400 Destinations /Job |
| Scan Speed | 0.7 Seconds Per Page, Maximum 73 IPM |
| E-FILING SPECIFICATIONS | |
| Operation Method | Color Touch Screen Control Panel or Client PC |
| Number of Boxes | 1 Public Box; 200 Private User Boxes |
| Capacity of Boxes | 100 Folders Per Box, 400 Documents Per Folder/Box, 200 Pages Per Document |
e-STUDIO7518A
-
- 75 PPM, Mono
- 3,520/6,020 Paper Capacity (Std./Max)
- 240 Duplex Scans Per Minute
- 3,600 x 1,200 DPI Laser Quality
- Personalized Workflow
- Multi-Function Printer
Features and Specifications
e-STUDIO7518A FEATURES
| PRODUCTIVITY | |
| Print Speed: up to 75 PPM | |
| DSDF Scan: Up to 240 IPM Duplex, 120 IPM Simplex | |
| 11″ x 17″ 140 lb index automatic duplexing from the drawers | |
| 13″ x 19″ 110 lb cover support through the bypass | |
| Universal Print Driver | |
| 320GB Self-Encrypting Drive | |
| Solutions Ready | |
| IMAGE QUALITY | |
| Patented ASICs provide superb clarity and rich text renditions in all scanning, printing and copying jobs | |
| Up to 3,600 x 1,200 dpi print resolution | |
| Automatic Image quality control function | |
| OPERABILITY | |
| New Toshiba developed 10.1 inch tablet-style touch color control panel for easier operation | |
| Scan Preview | |
| Dual-line Fax Option | |
| One Touch Templates | |
| SERVICEABILITY | |
| Easy Replaceable Unit Design | |
| Long Life consumables and duty cycles | |
e-STUDIO7518A SPECIFICATIONS
| MAIN SPECIFICATIONS | |
| Copy Process | Indirect Electrostatic Photographic Method/OPC/Laser Printing/Heat Roller Fusing |
| Display | 10.1” Color WVGA Touch Screen Tilting Display |
| Copy Speed | 75 PPM (LT) |
| First Copy Out | 4.5 |
| Warm-Up Time | Approx. 20 Seconds |
| Copy Resolution | 2400 x 600 dpi |
| Stack Feed Bypass | 3.9” x 5.8” to 13” x 19”, 12” x 47” Banner, Envelope |
| Multiple Copying | Up to 9,999 Copies |
| Paper Capacity | Standard 3,520 Sheets/Max. 6,020 Sheets (Tandem Drawer) |
| Original Feed | Standard 300-Sheet DSDF |
| Scan Speed & Weights | DSDF Scan: Up to 240 IPM Duplex, 120 IPM Simplex (Monochrome or Color), Simplex: 9.3-110 lb Index, Duplex: 9.3-110 lb Index |
| Max. Original Size | LD |
| Paper Feed Sizes | Drawers: 540 Sheets-ST-R to 12” x 18” Integral Tandem LCF 1,160 x 2 LT-Only Stack Feed Bypass: 120 Sheets-3.9” x 5.8” to 13” x 19”, 12” x 47” Banner 2,500-Sheet Ext. LCF LT-Only |
| Paper Weights | Tandem LCF 1,160 Sheets x 2-16 lb Bond-140 lb Index Plus 540 Sheets x 2-16 lb Bond-140 lb Index Stack Feed Bypass: 120 Sheets-16 lb Bond-110 lb Cover Opt. 2,500-Sheet Ext. LCF LT-Only -16 lb Bond-140 lb Index |
| Duplex | Standard Automatic Duplex Unit (16 lb Bond-140 lb Index) |
| Reproduction Ratio | 25% to 400% |
| Max Duty Cycle | Max. 660K Month |
| Weight | Approx. 430 lb |
| Approx. Dimensions | 37.6” (W) x 28.9” (D) x 48.3” (H) |
| Toner Yield | 106,600 @ 5% |
| Power Source | 120 Volts, 50/60 Hz, 16 Amps |
| Power Consumption | Maximum 2.0kW (120V) |
| CPU | Intel Atom™ 1.33 GHz (Dual-Core) |
| Memory | 4GB |
| Hard Disk Drive | 320GB Self-Encrypting Drive |
| E-BRIDGE NEXT PRINT SPECIFICATIONS | |
| PDL | PCL5e, PCL5c, PCL6 (PCL XL), PS3, PDF, XPS, JPEG |
| Print Speed | 75 PPM (LT) |
| Print Resolution | 600 x 600 dpi, 2,400 x 600 dpi (With Smoothing), 1,200 x 1,200 dpi (2-bit) or 3,600 x 1,200 dpi (With Smoothing) PS Only |
| Operating Systems | Windows® Vista, Windows Server® 2008/R2, Windows® 7, 8, 8.1, 10, Windows Server® 2012/R2, Macintosh® (Mac OS X 10.6, 10.7, 10.8, 10.9, 10.10, 10.11), Unix®, Linux® |
| Network Protocols | TCP/IP (IPv4, IPv6), NetBIOS over TCP/IP, IPX/SPX® for Novell® Environments, EtherTalk® for Macintosh Environments |
| Printing Protocols | SMB, LPR/LPD, IPP (Ver.1.1) w/Authentication, AppleTalk PAP or EtherTalk™, Port 9100 (bi-directional), NetWare P-SERVER LPD w/ iPrint, WS Print, FTP |
| Print Drivers | Windows® Vista SP2 (32-bit, 64-bit), Windows Server® 2008 SP2 (32-bit, 64- bit), Windows Server® 2008 R2 SP1 (64-bit), Windows® 7 SP1 (32-bit, 64-bit), Windows® 8/8.1 (32-bit, 64-bit), Windows Server® 2012/R2 (64-bit), Windows® 10 (32-bit, 64-bit), Mac OS® X 10.6.8, 10.7.4, 10.8, 10.9, 10.10, 10.11 |
| Interface | RJ-45 Ethernet (10/100/1000 Base-T), USB 2.0 (High-speed) Optional 802.11b/g/n, Wireless LAN, Optional Bluetooth |
| Wireless Device | AirPrint™, Mopria®, e-BRIDGE Print & Capture Application on iOS and Android (Available via Apple App Store or Google Play) |
| Device Management | TopAccess, EFMS 6.2 (e-BRIDGE Fleet Management Software) |
| Account Control | Up to 10,000 users or 1,000 Departments Supports User Authentication (on Device), Login Name/Password (via Windows domain) or Login Name/ Password (via LDAP Server) for Copy, Print, Scan, Fax, List, and User Function |
| Accessibility Features | Tilt Front Panel, Job Programs, Universal Grip for Paper Trays, Disable Screen Timeout and Audible Beep Message Alerts |
| Security Features | User Authentication, On-Board Data Scramble Function, SCEP, Disable e-Filing, Disable Copy, Disk Overwrite, IP Address Filtering (10 Sets), MAC Address Filtering (10 Sets), Network Service Control, Network Port Control, SMB Packet Signing, SSL (HTTP, IPP, LDAP, SMTP, POP, FTP, DPWS), IPsec (IKEv1, IKEv2), Security Mode Change, CC Certified (ISO/IEC15408 EAL3+)*, IEEE2600.1, IEEE802.1X, Digital Signature for Client Utilities, Password Policy, Password Lock, Password Expiration, Self Testing, Job Access Control, Log Access Control for Job Log, Security Stamp *Compliant with IEEE2600.1 in High Security Mode. |
| Environmental Stds | Energy Star (V2.0), EPEAT Gold, RoHS |
| Certification | WHQL (Windows 7, 8, 8.1, 10, 2008 R2, 2012, 2012 R2), Novell, Citrix, SAP |
| SCAN SPECIFICATIONS | |
| Scan Speed | DSDF Scan: Up to 240 IPM Duplex, 120 IPM Simplex (Monochrome or Color) |
| Scan Modes | Standard: Full Color, Auto Color, Monochrome, Grayscale |
| Scan Resolution | 600 dpi, 400 dpi, 300 dpi, 200 dpi, 150 dpi, 100 dpi |
| File Formats | Monochrome: TIFF-Multi/Single Page, PDF-Multi/Single Page, Searchable PDF (Opt.), XPS-Multi/Single Page, DOCX (Opt.), XLSX (Opt.), PPTX (Opt.) Color/Grayscale: JPEG, TIFF-Multi/Single Page, PDF-Multi/Single Page, Slim PDF, Searchable PDF (Opt.), XPS-Multi/Single Page, DOCX (Opt.), XLSX (Opt.), PPTX (Opt.) |
| Image Compression | Color/Grayscale: JPEG (High, Middle, Low) |
| FAX SPECIFICATIONS | |
| Compatibility | Super G3 |
| Data Compression | MH/MR/MMR/JBIG |
| Transmission Speed | Approx. 3 Seconds Per Page |
| Fax Modem Speed | Up to 33.6 Kbps |
| Memory Transmission | 100 Jobs (with HDD), 2,000 Destinations Max. 400 Destinations /Job |
| Scan Speed | 0.7 Seconds Per Page, Maximum 73 IPM |
| E-FILING SPECIFICATIONS | |
| Operation Method | Color Touch Screen Control Panel or Client PC |
| Number of Boxes | 1 Public Box; 200 Private User Boxes |
| Capacity of Boxes | 100 Folder per Box; 400 Documents per Folder; 200 Pages per Documents |
e-STUDIO8518A
-
- 85 PPM, Mono
- 3,520/6,020 Paper Capacity (Std./Max)
- 240 Duplex Scans Per Minute
- Exceptional Performance
- Customizable Workflow
- Multi-Function Printer
Features and Specifications
e-STUDIO8518A FEATURES
| PRODUCTIVITY | |
| Print Speed: up to 85 PPM | |
| DSDF Scan: Up to 240 IPM Duplex, 120 IPM Simplex | |
| 11″ x 17″ 140 lb index automatic duplexing from the drawers | |
| 13″ x 19″ 110 lb cover support through the bypass | |
| Universal Print Driver | |
| 320GB Self-Encrypting Drive | |
| Solutions Ready | |
| IMAGE QUALITY | |
| Patented ASICs provide superb clarity and rich text renditions in all scanning, printing and copying jobs | |
| Up to 3,600 x 1.200 dpi print resolution | |
| Automatic Image quality control function | |
| OPERABILITY | |
| New Toshiba developed 10.1 inch tablet-style touch color control panel for easier operation | |
| Scan Preview | |
| Dual-line Fax Option | |
| One Touch Templates | |
| SERVICEABILITY | |
| Easy Replaceable Unit Design | |
| Long Life consumables and duty cycles | |
e-STUDIO8518A SPECIFICATIONS
| MAIN SPECIFICATIONS | |
| Copy Process | Indirect Electrostatic Photographic Method/OPC/Laser Printing/ Heat Roller Fusing |
| Display | 10.1” Color WVGA Touch Screen Tilting Display |
| Copy Speed | 85 PPM (LT) |
| First Copy Out | 4.1 |
| Warm-Up Time | Approx. 20 Seconds |
| Copy Resolution | 2400 x 600 dpi |
| Stack Feed Bypass | 3.9” x 5.8” to 13” x 19”, 12” x 47” Banner, Envelope |
| Multiple Copying | Up to 9,999 Copies |
| Paper Capacity | Standard 3,520 Sheets/Max. 6,020 Sheets (Tandem Drawer |
| Original Feed | Standard 300-Sheet DSDF |
| Scan Speed & Weights | DSDF Scan: Up to 240 IPM Duplex, 120 IPM Simplex (Monochrome or Color), Simplex: 9.3-110 lb Index, Duplex: 9.3-110 lb Index |
| Max. Original Size | LD |
| Paper Feed Sizes | Drawers: 540 Sheets-ST-R to 12” x 18” Integral Tandem LCF 1,160 x 2 LT-Only Stack Feed Bypass: 120 Sheets-3.9” x 5.8” to 13” x 19”, 12” x 47” Banner 2,500-Sheet Ext. LCF LT-Only |
| Paper Weights | Tandem LCF 1,160 Sheets x 2-16 lb Bond-140 lb Index Plus 540 Sheets x 2-16 lb Bond-140 lb Index Stack Feed Bypass: 120 Sheets-16 lb Bond-110 lb Cover Opt. 2,500-Sheet Ext. LCF LT-Only -16 lb Bond-140 lb Index |
| Duplex | Standard Automatic Duplex Unit (16 lb Bond-140 lb Index) |
| Reproduction Ratio | 25% to 400% |
| Max Duty Cycle | Max. 720K Month |
| Weight | Approx. 430 lb |
| Approx. Dimensions | 37.6” (W) x 28.9” (D) x 48.3” (H) |
| Toner Yield | 106,600 @ 5% |
| Power Source | 120 Volts, 50/60 Hz, 16 Amps |
| Power Consumption | Maximum 2.0kW (120V) |
| CPU | Intel Atom™ 1.33 GHz (Dual-Core) |
| Memory | 4GB |
| Hard Disk Drive | 320GB Self-Encrypting Drive |
| E-BRIDGE NEXT PRINT SPECIFICATIONS | |
| PDL | PCL5e, PCL5c, PCL6 (PCL XL), PS3, PDF, XPS, JPEG |
| Print Speed | 85 Pages Per Minute (LT) |
| Print Resolution | 600 x 600 dpi, 2,400 x 600 dpi (With Smoothing), 1,200 x 1,200 dpi (2-bit) or 3,600 x 1,200 dpi (With Smoothing) PS Only |
| Operating Systems | Windows® Vista, Windows Server® 2008/R2, Windows® 7, 8, 8.1, 10, Windows Server® 2012/R2, Macintosh® (Mac OS X 10.6, 10.7, 10.8, 10.9, 10.10, 10.11), Unix®, Linux® |
| Network Protocols | TCP/IP (IPv4, IPv6), NetBIOS over TCP/IP, IPX/SPX® for Novell® Environments, EtherTalk® for Macintosh Environments |
| Printing Protocols | SMB, LPR/LPD, IPP (Ver.1.1) w/Authentication, AppleTalk PAP or EtherTalk™, Port 9100 (bi-directional), NetWare P-SERVER LPD w/ iPrint, WS Print, FTP |
| Print Drivers | Windows® Vista SP2 (32-bit, 64-bit), Windows Server® 2008 SP2 (32-bit, 64- bit), Windows Server® 2008 R2 SP1 (64-bit), Windows® 7 SP1 (32-bit, 64-bit), Windows® 8/8.1 (32-bit, 64-bit), Windows Server® 2012/R2 (64-bit), Windows® 10 (32-bit, 64-bit), Mac OS® X 10.6.8, 10.7.4, 10.8, 10.9, 10.10, 10.11 |
| Interface | RJ-45 Ethernet (10/100/1000 Base-T), USB 2.0 (High-speed) Optional 802.11b/g/n, Wireless LAN, Optional Bluetooth |
| Wireless Device | AirPrint™, Mopria®, e-BRIDGE Print & Capture Application on iOS and Android (Available via Apple App Store or Google Play) |
| Device Management | TopAccess, EFMS 6.2 (e-BRIDGE Fleet Management Software) |
| Account Control | Up to 10,000 users or 1,000 Departments Supports User Authentication (on Device), Login Name/Password (via Windows domain) or Login Name/ Password (via LDAP Server) for Copy, Print, Scan, Fax, List, and User Function |
| Accessibility Features | Tilt Front Panel, Job Programs, Universal Grip for Paper Trays, Disable Screen Timeout and Audible Beep Message Alerts |
| Security Features | User Authentication, On-Board Data Scramble Function, SCEP, Disable e-Filing, Disable Copy, Disk Overwrite, IP Address Filtering (10 Sets), MAC Address Filtering (10 Sets), Network Service Control, Network Port Control, SMB Packet Signing, SSL (HTTP, IPP, LDAP, SMTP, POP, FTP, DPWS), IPsec (IKEv1, IKEv2), Security Mode Change, CC Certified (ISO/IEC15408 EAL3+)*, IEEE2600.1, IEEE802.1X, Digital Signature for Client Utilities, Password Policy, Password Lock, Password Expiration, Self Testing, Job Access Control, Log Access Control for Job Log, Security Stamp *Compliant with IEEE2600.1 in High Security Mode. |
| Environmental Stds | Energy Star (V2.0), EPEAT Gold, RoHS |
| Certification | WHQL (Windows 7, 8, 8.1, 10, 2008 R2, 2012, 2012 R2), Novell, Citrix, SAP |
| SCAN SPECIFICATIONS | |
| Scan Speed | DSDF Scan: Up to 240 IPM Duplex, 120 IPM Simplex (Monochrome or Color) |
| Scan Modes | Standard: Full Color, Auto Color, Monochrome, Grayscale |
| Scan Resolution | 600 dpi, 400 dpi, 300 dpi, 200 dpi, 150 dpi, 100 dpi |
| File Formats | Monochrome: TIFF-Multi/Single Page, PDF-Multi/Single Page, Searchable PDF (Opt.), XPS-Multi/Single Page, DOCX (Opt.), XLSX (Opt.), PPTX (Opt.) Color/Grayscale: JPEG, TIFF-Multi/Single Page, PDF-Multi/Single Page, Slim PDF, Searchable PDF (Opt.), XPS-Multi/Single Page, DOCX (Opt.), XLSX (Opt.), PPTX (Opt.) |
| Image Compression | Color/Grayscale: JPEG (High, Middle, Low) |
| FAX SPECIFICATIONS | |
| Compatibility | Super G3 |
| Data Compression | MH/MR/MMR/JBIG |
| Transmission Speed | Approx. 3 Seconds Per Page |
| Fax Modem Speed | Up to 33.6 Kbps |
| Memory Transmission | 100 Jobs (with HDD), 2,000 Destinations Max. 400 Destinations /Job |
| Scan Speed | 0.7 Seconds Per Page, Maximum 73 IPM |
| E-FILING SPECIFICATIONS | |
| Operation Method | Color Touch Screen Control Panel or Client PC |
| Number of Boxes | 1 Public Box; 200 Private User Boxes |
| Capacity of Boxes | 100 Folder per Box; 400 Documents per Folder; 200 Pages per Documents |
